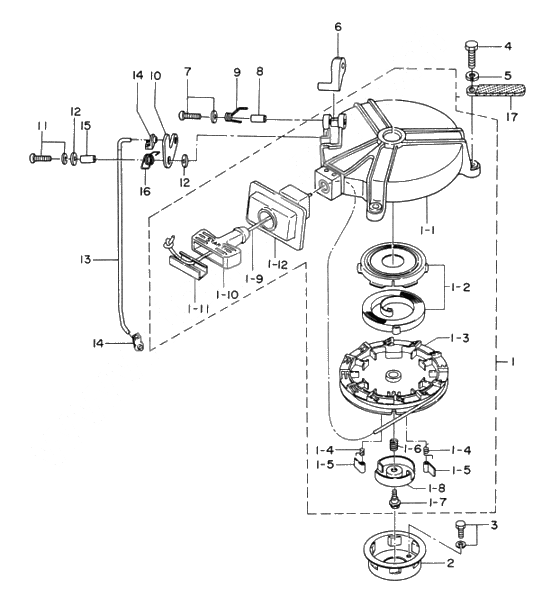

Recoil starter & starter lock для Tohatsu MFS6A2 - 2002 года выпуска`
-
№АртикулНазвание
-
13H6-05000-0 Recoil starter assy.Recoil starter assy.
-
3AS-05090-1 Recoil starter assy.Recoil starter assy.
-
1-1369-05105-2 Starter CaseStarter Case
-
1-103H6-05019-0 Starter HandleStarter Handle
-
1-11338-05131-0 Rope anchorRope anchor
-
1-123B2-05116-0 Seal plate starterSeal plate starter
-
1-23B2-05010-0 Starter spring setStarter spring set
-
1-33B2-05104-0 ReelReel
-
1-43H6-05012-0 Return SpringReturn Spring
-
1-53B2-05003-0 RatchetRatchet
-
1-6369-05007-0 Spring WasherSpring Washer
-
1-73B2-05138-0 Bolt starter shaftBolt starter shaft
-
1-83B2-05006-0 Friction PlateFriction Plate
-
1-93B2-05013-0 Starter RopeStarter Rope
-
23B2-05901-0 Starter pulleyStarter pulley
-
3910121-6612 BoltBolt
-
4910114-0623 BoltBolt
-
5941303-0600 New partNew part
-
6338-05252-0 Lock starterLock starter
-
7921503-5430 Stud BoltStud Bolt
-
8338-05255-0 Coller starter lock shaftColler starter lock shaft
-
9338-05216-0 Spring starter lock shaftSpring starter lock shaft
-
10338-05253-2 Cam starter lockCam starter lock
-
11921503-6616 Stud BoltStud Bolt
-
12940103-0600 WasherWasher
-
133H6-05217-0 Rod,starterrockRod,starterrock
-
14345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
-
153H6-05215-0 Втулка тяги КППВтулка тяги КПП
-
163H6-05285-0 S/p,starter lock camS/p,starter lock cam
-
17309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
