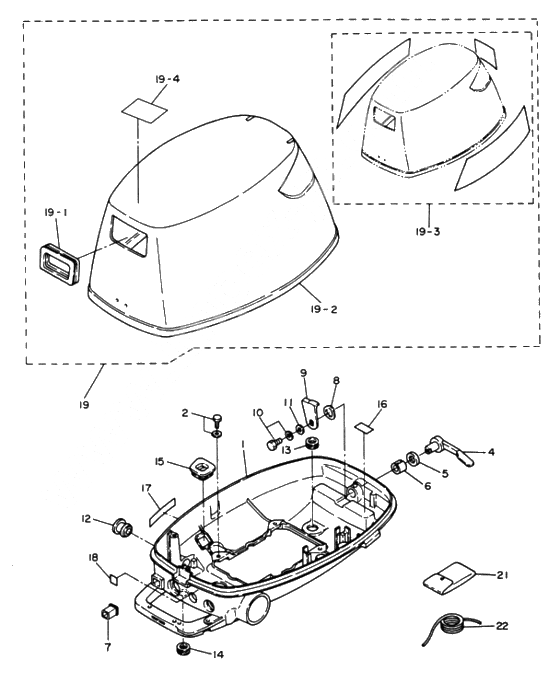

Motor cover для Tohatsu MFS5A2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3H6S67100-0 Motor cover lower mfs5a2/6a2
    Motor cover lower mfs5a2/6a2
  • 3H6S67100-2 Motor cover lower mfs5a2/6a2
    Motor cover lower mfs5a2/6a2
  • 2
    910113-5616 Bolt
    Bolt
  • 4
    369S67141-1 Hook lever
    Hook lever
  • 5
    338-67147-0 New part
    ø13.8 - ø22 - 3.7MM
    New part
    ø13.8 - ø22 - 3.7MM
  • 6
    369-67105-0 Bushing
    Bushing
  • 7
    3H6-67104-0 Bushing choke rod
    Bushing choke rod
  • 8
    941403-1400 New part
    New part
  • 9
    3H6-67142-0 Cover, hook
    Cover, hook
  • 10
    910103-6612 Bolt
    Bolt
  • 11
    3R0-66308-0 Washer
    Washer
  • 12
    369-67187-0 Grommet throttle lever
    Grommet throttle lever
  • 13
    338-67163-0 Supporting Rubber Fuel Pipe
    Supporting Rubber Fuel Pipe
  • 14
    345-67117-0 New part
    New part
  • 15
    369-67188-0 Grommet starter lock rod
    Grommet starter lock rod
  • 16
    3H6-72026-0 Label, Spark Plug
    Label, Spark Plug
  • 17
    3H6-67572-0 LABEL, STORAGE
    LABEL, STORAGE
  • 18
    3H6-76199-0 Label,oil Pressure
    Label,oil Pressure
  • 19
    3R4S67560-0 Motor cover upper ass'y
    TOHATSU / FOR SEPARATE (REMOTE) TANK
    Motor cover upper ass'y
    TOHATSU / FOR SEPARATE (REMOTE) TANK
  • 19
    3P7N67560-5 U/m cover nsf5/6a-ext tank (amb)
    NISSAN / FOR SEPARATE (REMOTE) TANK
    U/m cover nsf5/6a-ext tank (amb)
    NISSAN / FOR SEPARATE (REMOTE) TANK
  • 19-1
    3B2-67503-0 Seal rubber stater
    Seal rubber stater
  • 19-2
    3H6-67501-0 Sele rubber, upper motor
    L=1170
    Sele rubber, upper motor
    L=1170
  • 19-3
    3H6S87801-0 Набор этикеток
    TOHATSU
    Набор этикеток
    TOHATSU
  • 19-3
    3P7-87801-5 Decal set nsf5a (2000)
    NISSAN
    Decal set nsf5a (2000)
    NISSAN
  • 19-4
    3R0-72180-0 Caution Lable A
    Caution Lable A
  • 21
    3H6-72100-0 TOOL ASS'Y
    TOOL ASS'Y
  • 22
    312-72201-0 Safety Rope
    ø4 -1000MM
    Safety Rope
    ø4 -1000MM
