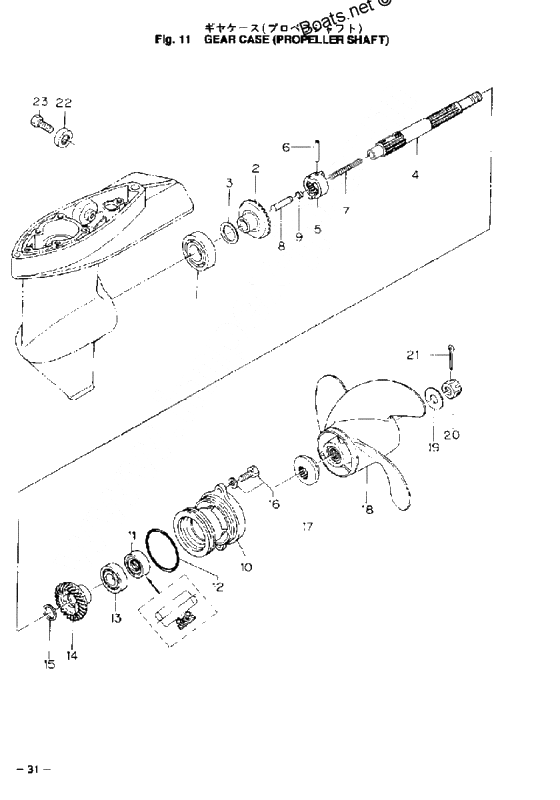

Gear case (propeller shaft) для Tohatsu MFS5A - 2002 года выпуска`
-
№АртикулНазвание
-
19601-0-6004 Ball BearingBall Bearing
-
2369-64010-2 Bevel Gear A Ass'y (with Bushing)Bevel Gear A Ass'y (with Bushing)
-
3369-64014-0 Shim 21-28-0.1Shim 21-28-0.1
-
3369-64015-0 Shim 21-28-0.15Shim 21-28-0.15
-
4369-64211-1 Propeller ShaftPropeller Shaft
-
5301-64215-1 ClutchClutch
-
6301-64217-0 Pin ClutchPin Clutch
-
7393-64221-0 Spring ClutchSpring Clutch
-
8369-64223-0 Push Rod ClutchPush Rod Clutch
-
9369-64222-0 Spring holder clutchSpring holder clutch
-
10369S60101-1 Housing, Propeller ShaftHousing, Propeller Shaft
-
11369-60111-0 Oil SealOil Seal
-
12345-65015-0 O-RingO-Ring
-
139601-0-6002 Ball BearingBall Bearing
-
14369-64030-2 Bevel Gear CBevel Gear C
-
15369-64032-0 WasherWasher
-
17369-64231-1 Thrust holder propellerThrust holder propeller
-
18369-64514-1 Prop 4/5/6hp (7.7 dia. x 7 pitch)
STD for 4A S. L. UL.Prop 4/5/6hp (7.7 dia. x 7 pitch)
STD for 4A S. L. UL. -
3R1B64514-1 Prop 4/5/6hp (7.7 dia. x 7 pitch)Prop 4/5/6hp (7.7 dia. x 7 pitch)
-
18369-64516-2 Prop 4/5/6hp (7.7 dia. x 8 pitch)
STD for 6A, 5A S. L. UL.Prop 4/5/6hp (7.7 dia. x 8 pitch)
STD for 6A, 5A S. L. UL. -
3R1B64516-1 Prop 4/5/6hp (7.7 dia. x 8 pitch)Prop 4/5/6hp (7.7 dia. x 8 pitch)
-
18369-64518-1 Prop 4/5/6hp (7.9 dia. x 9 pitch)Prop 4/5/6hp (7.9 dia. x 9 pitch)
-
369B64518-1 Prop 4/5/6hp (7.9 dia. x 9 pitch)Prop 4/5/6hp (7.9 dia. x 9 pitch)
-
19369-64124-0 WasherWasher
-
20369-64121-0 Nut PropellerNut Propeller
-
21951503-0318 New partNew part
-
22369-60218-1 New partNew part
-
23910103-0616 BoltBolt
