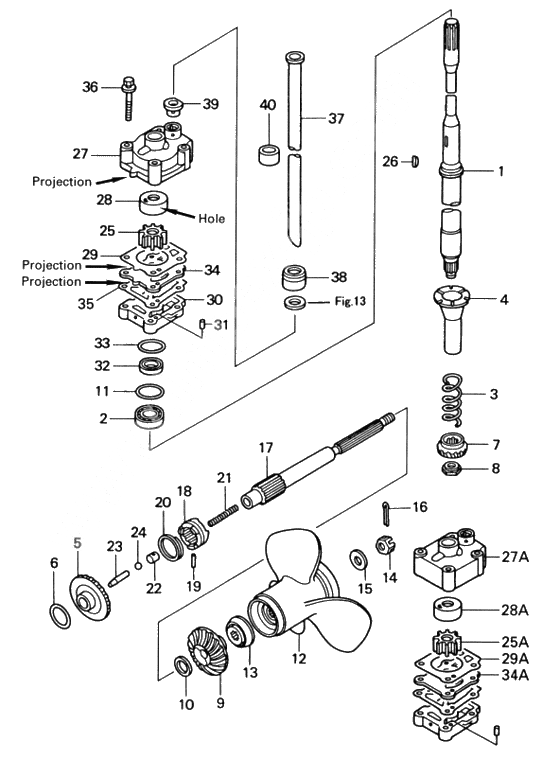

Drive shaft & water pump для Tohatsu MFS25A - 2002 года выпуска`

№

Артикул

Название
1

3R0-64301-0 Drive shaft s""

Drive shaft s""

34 100 ₽
1

346-64302-5 Drive shaft l

Drive shaft l

20 680 ₽
1

346-64303-5 Drive Shaft UL

Drive Shaft UL

22 400 ₽
2

346-60213-0 Bearing, 32004

Bearing, 32004

4 290 ₽
3

346-64327-0 Spring Drive Shaft

Spring Drive Shaft

860 ₽
4

346-64328-0 New part

New part

1 080 ₽
5

346-64010-1 Bevel Gear A

Bevel Gear A

10 950 ₽
6

369-64081-1 Shim, 26. 5-34. 8-0.1

Shim, 26. 5-34. 8-0.1

710 ₽
6

369-64082-1 Shim, 26. 5-34. 8-0.15

Shim, 26. 5-34. 8-0.15

920 ₽
7

346-64020-1 Bevel Gear B

Bevel Gear B

9 010 ₽
8

346-64027-1 Nut, Bevel Gear B

Nut, Bevel Gear B

1 850 ₽
9

346-64030-0 Bevel Gear C

Bevel Gear C

12 780 ₽
10

346-64032-0 New part

New part

890 ₽
11

346-64081-0 Shim, 35-41.9-0.1

Shim, 35-41.9-0.1

620 ₽
11

346-64082-0 Shim, 35-41.9-0.15

Shim, 35-41.9-0.15

950 ₽
11

346-64083-0 Shim, 35-41.9-0.3

Shim, 35-41.9-0.3

900 ₽
11

346-64084-0 Shim, 35-41.9-0.5

Shim, 35-41.9-0.5

950 ₽
12

346-64106-5 Prop 25&30 hp (10.2 dia. x 8.3 pitch)

Prop 25&30 hp (10.2 dia. x 8.3 pitch)

13 980 ₽
346B64106-5 Prop 25&30 hp (10.2 dia. x 8.3 pitch)

Prop 25&30 hp (10.2 dia. x 8.3 pitch)

35 130 ₽
12

3R0-64518-0 Propellerds9

Propellerds9

16 530 ₽
12

3R0-64521-0 Propeller ds 10 (9.7 dia x 10 pitch) black
STD. TRANSOM UL

Propeller ds 10 (9.7 dia x 10 pitch) black
STD. TRANSOM UL

16 530 ₽
3R0B64521-0 Propeller ds 10 (9.7 dia x 10 pitch) black

Propeller ds 10 (9.7 dia x 10 pitch) black

16 050 ₽
12

3R0-64523-0 Propeller ds11 (3x252x279)
STD. TRANSOM L

Propeller ds11 (3x252x279)
STD. TRANSOM L

16 530 ₽
12

3R0-64525-0 Propeller ds 12 (9.8 dia x 12 pitch) black

Propeller ds 12 (9.8 dia x 12 pitch) black

16 530 ₽
3R0B64525-0 Propeller ds 12 (9.8 dia x 12 pitch) black

Propeller ds 12 (9.8 dia x 12 pitch) black

16 050 ₽
12

3R0-64527-0 Propeller ds 13 (9.6 dia x 13 pitch) black
STD. TRANSOM S

Propeller ds 13 (9.6 dia x 13 pitch) black
STD. TRANSOM S

16 530 ₽
3R0B64527-0 Propeller ds 13 (9.6 dia x 13 pitch) black

Propeller ds 13 (9.6 dia x 13 pitch) black

27 530 ₽
12

346-64105-5 Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)

Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)

13 980 ₽
349B64529-1 Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)

Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)

36 530 ₽
13

346-64231-5 New part

New part

4 020 ₽
14

346-64121-5 ナット、プロペラ

ナット、プロペラ

1 470 ₽
15

346-64124-5 Washer

Washer

670 ₽
16

951503-0322 Split pin, 3-22

Split pin, 3-22

270 ₽
17

346-64211-6 プロペラシャフト

プロペラシャフト

28 450 ₽
18

346-64215-1 New part

New part

7 700 ₽
19

346-64218-0 New part

New part

230 ₽
20

346-64219-0 New part

New part

510 ₽
21

332-64221-0 New part

New part

630 ₽
22

350-64222-0 New part

New part

790 ₽
23

3C8-64223-1 Push rod, clutch

Push rod, clutch

860 ₽
24

965002-0803 Steel ball, 3/8

Steel ball, 3/8

150 ₽
25

345-65021-0 Крыльчатка водной помпы
25A #21501~ / 30A #31140~

Крыльчатка водной помпы
25A #21501~ / 30A #31140~

4 200 ₽
25A

3R0-65021-0 Impeller,water pump
25A ~#21500 / 30A ~#31139

Impeller,water pump
25A ~#21500 / 30A ~#31139

1 490 ₽
26

332-65022-0 Key, pump impeller

Key, pump impeller

1 430 ₽
27

3R0-65016-0 Upper Pump Case
25A #21501~ / 30A #31140~

Upper Pump Case
25A #21501~ / 30A #31140~

3 730 ₽
27A

348-65016-1 Upper Pump Case
25A ~#21500 / 30A ~#31139

Upper Pump Case
25A ~#21500 / 30A ~#31139

5 300 ₽
28

3R0-65011-0 Liner,Pump Case
25A #21501~ / 30A #31140~

Liner,Pump Case
25A #21501~ / 30A #31140~

1 610 ₽
28A

348-65011-0 Liner, pump case
25A ~#21500 / 30A ~#31139

Liner, pump case
25A ~#21500 / 30A ~#31139

980 ₽
29

3R0-65018-0 Gasket,Pump Case
25A #21501~ / 30A #31140~

Gasket,Pump Case
25A #21501~ / 30A #31140~

650 ₽
29A

348-65018-0 Прокладка насоса
25A ~#21500 / 30A ~#31139

Прокладка насоса
25A ~#21500 / 30A ~#31139

500 ₽
30

346-65017-2 Pump Case Lower

Pump Case Lower

6 120 ₽
31

334-65012-0 Стопор

Стопор

720 ₽
32

346-65013-0 Oil' seal, 17-30-9

Oil' seal, 17-30-9

1 160 ₽
33

336-62415-0 O-Ring

O-Ring

410 ₽
34

3R0-65025-0 Guide Plate,Water Pump
25A #21501~ / 30A #31140~

Guide Plate,Water Pump
25A #21501~ / 30A #31140~

1 660 ₽
34A

348-65025-0 Guide plate, water pump
25A ~#21500 / 30A ~#31139

Guide plate, water pump
25A ~#21500 / 30A ~#31139

680 ₽
35

348-65029-1 Gasket, pump guide plate

Gasket, pump guide plate

680 ₽
36

910113-5652 New part

New part

210 ₽
37

3R0-65100-0 Water pipe s""

Water pipe s""

2 280 ₽
37

3R0-65110-0 Water pipoe l""

Water pipoe l""

2 550 ₽
37

3R0-65120-0 Water PipeUL""

Water PipeUL""

2 600 ₽
38

3R0-65206-0 Upper Seal Rubber,Water Pipe

Upper Seal Rubber,Water Pipe

230 ₽
39

3B7-65014-0 Lower seal rubber, water pipe

Lower seal rubber, water pipe

750 ₽
40

98AM120-015 Rubber pipe (1ea.=1 meter)
FOR TRANSOM L

Rubber pipe (1ea.=1 meter)
FOR TRANSOM L

2 180 ₽
98AM12100-0 Rubber pipe (1ea.=1 meter)

Rubber pipe (1ea.=1 meter)

0 ₽
