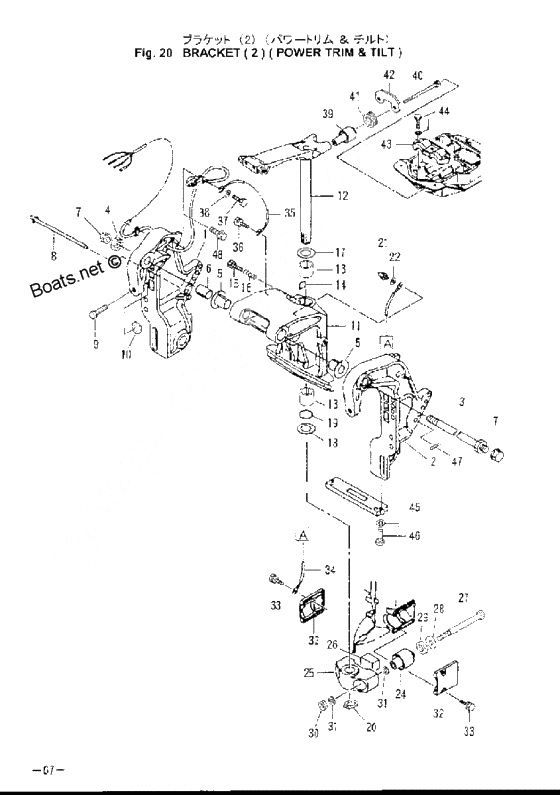

Bracket (2) (power trim & tilt) для Tohatsu MD40A - 2002 года выпуска`
-
№АртикулНазвание
-
13C8S77211-0 Stern bracket rStern bracket r
-
23C8S77212-0 Stern bracket lStern bracket l
-
33B7-62191-0 Bracket Bolt Ass'yBracket Bolt Ass'y
-
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
53C8-77213-0 Bushing Bracket BoltBushing Bracket Bolt
-
63C8-62132-0 BushingBushing
-
7346-62127-0 Cap,Bracket Bolt
for F TypeCap,Bracket Bolt
for F Type -
83R0-77118-0 Thrust RodThrust Rod
-
93C8-77214-0 Винт струбциныВинт струбцины
-
10332-62101-0 Pad clamp screwPad clamp screw
-
113C8S77215-2 Поворотный кронштейнПоворотный кронштейн
-
123C8S62010-2 Steering shaft ass'ySteering shaft ass'y
-
13345-62417-0 Bushing Steering ShaftBushing Steering Shaft
-
14345-62441-0 Friction PlateFriction Plate
-
16346-62421-1 Spring Friction PlateSpring Friction Plate
-
173A0-62423-2 Upper Thrust PlateUpper Thrust Plate
-
18346-62424-1 Trust Plate LowerTrust Plate Lower
-
19345-62415-0 O-RingO-Ring
-
20945103-2500 ClipClip
-
21344-67177-0 МасленкаМасленка
-
22940113-0600 WasherWasher
-
243C8-61302-0 Lower Mount RubberLower Mount Rubber
-
253C8S61411-2 Mount bracketMount bracket
-
263C8-61336-0 Damper RubberDamper Rubber
-
273C8-61321-1 Bolt Lower Mount RubberBolt Lower Mount Rubber
-
28353-61334-0 WasherWasher
-
293C7-61338-0 Damper RubberDamper Rubber
-
30930403-1200 Nylon NutNylon Nut
-
323C8S61342-0 Cap lower mount rubberCap lower mount rubber
-
343C8-62396-0 Ground WireGround Wire
-
353C8-62158-0 Ground WireGround Wire
-
383C8-66308-0 New part
for P TypeNew part
for P Type -
393E3-61301-1 Upper Mount RobberUpper Mount Robber
-
40353-61307-0 Bolt mount rubber upperBolt mount rubber upper
-
413E3-61333-0 Upper Damper RubberUpper Damper Rubber
-
423E3-61335-0 Upper Lock PlateUpper Lock Plate
-
433C8S61341-0 Cap upper mount rubberCap upper mount rubber
-
453C7-60218-2 Anode, Stern BracketAnode, Stern Bracket
-
46910103-6630 BoltBolt
-
47951603-1000 R-PinR-Pin
-
48910113-5612 Bolt
for F TypeBolt
for F Type
