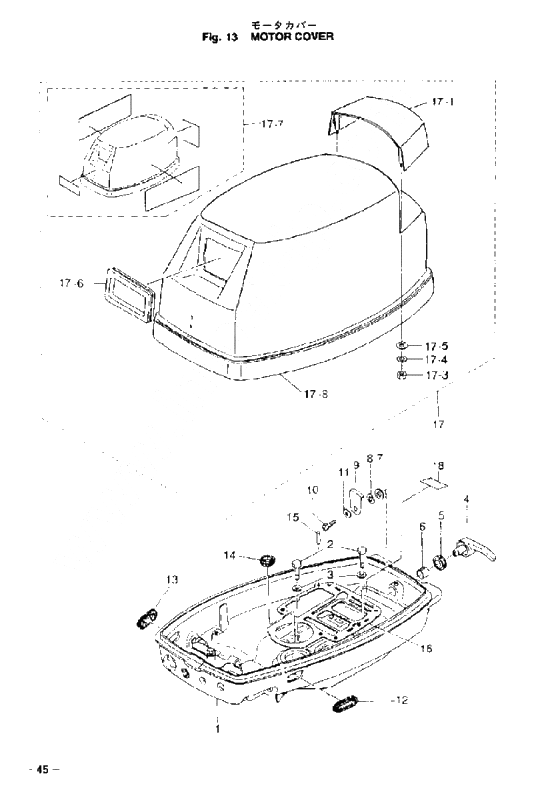

Motor cover для Tohatsu M9.9D2 - 2002 года выпуска
-
№АртикулНазвание
-
1350S67100-3 Motor cover lowerMotor cover lower
-
2910114-0620 BoltBolt
-
3940103-0600 WasherWasher
-
4338S67141-0 New partNew part
-
5338-67147-0 New part
тИЕ13.8-тИЕ22-3.7MMNew part
тИЕ13.8-тИЕ22-3.7MM -
6350-67105-0 New partNew part
-
73C8-67146-0 WasherWasher
-
8941403-1400 New partNew part
-
9345-67142-1 New partNew part
-
10910103-0612 New partNew part
-
113C8-66308-0 New partNew part
-
12346-67165-0 Grommet b motor cover lowerGrommet b motor cover lower
-
13353-67162-0 Grommet, Bater CordGrommet, Bater Cord
-
14350-01215-1 Oil SealOil Seal
-
15345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
16350-01303-1 Gasket engine baseGasket engine base
-
173M4S67500-0 Motor cover upper ass'y
UNIQUE- 3M7N67500-0Motor cover upper ass'y
UNIQUE- 3M7N67500-0 -
17-13M2S67521-0 Tilt handleTilt handle
-
17-3930103-0600 NutNut
-
17-4941303-0600 New partNew part
-
17-6344-67503-0 Seal rubber recoil starterSeal rubber recoil starter
-
17-83M2-67501-0 Seal rubber motor cover upper
, =1460MMSeal rubber motor cover upper
, =1460MM
