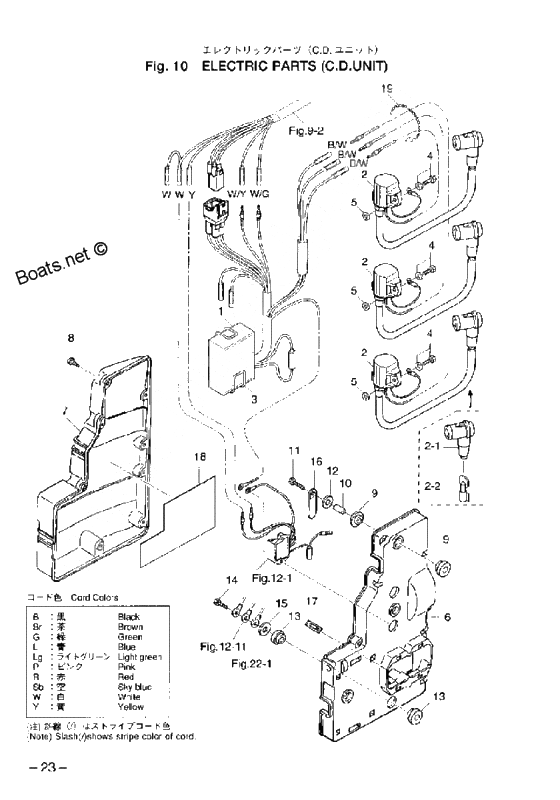

Electric parts (c.d. unit) для Tohatsu M70C - 2002 года выпуска
-
№АртикулНазвание
-
13F3-06060-2 C.D. Unit
70C/60C-C.D. Unit
70C/60C- -
23F3-06050-0 Ignition coil ass'yIgnition coil ass'y
-
2-13M2-06921-0 Plug capPlug cap
-
2-13C7-16921-0 Plug capPlug cap
-
2-23M2-06926-0 Terminal plug capTerminal plug cap
-
33B7-06165-0 Band, c.d. unitBand, c.d. unit
-
5151-33159-0 Gasket,combination gaugeGasket,combination gauge
-
63F3-06901-0 Electric bracketElectric bracket
-
73F3-06902-0 Cover electric bracketCover electric bracket
-
83F3-02423-0 Screw 5-30Screw 5-30
-
10353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
11910103-0625 BoltBolt
-
123C8-66308-0 New partNew part
-
13345-67113-0 Mount RubberMount Rubber
-
14910103-0616 BoltBolt
-
15346-67115-0 WasherWasher
-
16309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
17353-76213-0 Fuse(20ah)Fuse(20ah)
-
183F3-72028-0 Label wiring diagramLabel wiring diagram
-
19336-76091-0 Band Battery CordBand Battery Cord
