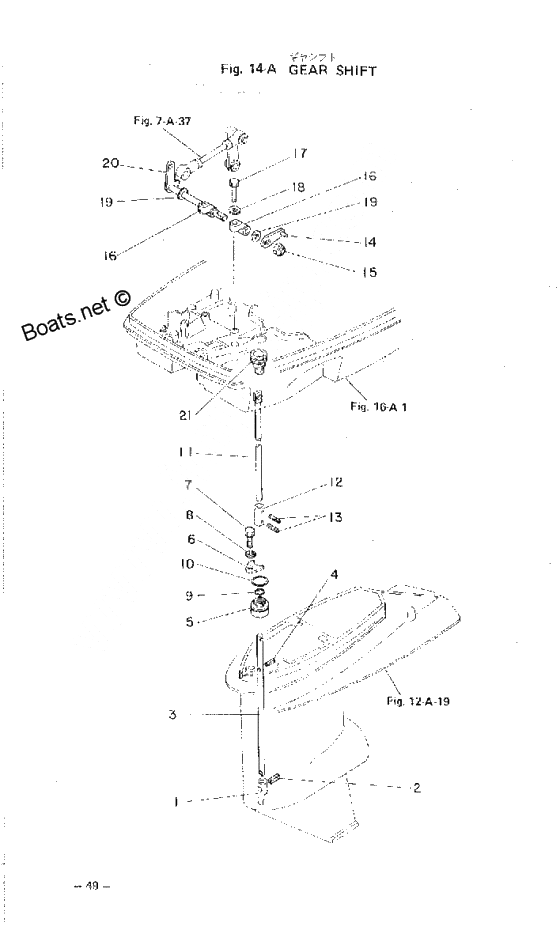

Gear shift для Tohatsu M60A - 2002 года выпуска`
-
№АртикулНазвание
-
00940-13080-0 Washer
NS50C,NS60A,NS70A2Washer
NS50C,NS60A,NS70A2 -
00951-42031-0 Spring Pin
NS50C,NS60A,NS70A2Spring Pin
NS50C,NS60A,NS70A2 -
00930403-1000 Nylon Nut
NS50C,NS60A,NS70A2Nylon Nut
NS50C,NS60A,NS70A2 -
00353-66215-1 New part
NS50C,NS60A,NS70A2New part
NS50C,NS60A,NS70A2 -
00332-61315-0 Washer
NS50C,NS60A,NS70A2 D10.5-D18-1.5MMWasher
NS50C,NS60A,NS70A2 D10.5-D18-1.5MM -
00951-42351-0 Spring Pin
NS50C,NS60A,NS70A2Spring Pin
NS50C,NS60A,NS70A2 -
00353-66145-0 Holder shift lever shaft
NS50C,NS60A,NS70A2Holder shift lever shaft
NS50C,NS60A,NS70A2 -
00353-66241-0 Joint Shift Rod
NS50C,NS60A,NS70A2Joint Shift Rod
NS50C,NS60A,NS70A2 -
00353-66225-0 Shift Lever Shaft
NS50C,NS60A,NS70A2Shift Lever Shaft
NS50C,NS60A,NS70A2 -
00353-66024-0 Stopper
NS50C,NS60A,NS70A2Stopper
NS50C,NS60A,NS70A2 -
00353-66145-1 Holder shift lever shaft
NS50C,NS60A,NS70A2Holder shift lever shaft
NS50C,NS60A,NS70A2 -
00951403-0314 Spring Washer
NS50C,NS60A,NS70A2Spring Washer
NS50C,NS60A,NS70A2 -
00353-66241-1 New part
NS50C,NS60A,NS70A2New part
NS50C,NS60A,NS70A2 -
00345-66226-0 Grommet, 17-3
NS50C,NS60A,NS70A2Grommet, 17-3
NS50C,NS60A,NS70A2 -
00910121-0612 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00910114-0625 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00951-43351-4 Spring Pin
NS50C,NS60A,NS70A2Spring Pin
NS50C,NS60A,NS70A2 -
00951403-0316 Spring Washer
NS50C,NS60A,NS70A2Spring Washer
NS50C,NS60A,NS70A2 -
00353-62112-2 Stern bracket right
NS50C,NS60A,NS70A2 APR. '87 PRODCTIONStern bracket right
NS50C,NS60A,NS70A2 APR. '87 PRODCTION -
00941303-0600 New part
NS50C,NS60A,NS70A2New part
NS50C,NS60A,NS70A2 -
00910114-0825 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00353-66014-0 Cam Rod UL
NS50C,NS60A,NS70A2Cam Rod UL
NS50C,NS60A,NS70A2 -
00951403-3516 New part
NS50C,NS60A,NS70A2New part
NS50C,NS60A,NS70A2 -
00345-66021-0 O-Ring
NS50C,NS60A,NS70A2 D1.9-D6.8O-Ring
NS50C,NS60A,NS70A2 D1.9-D6.8 -
00332-66308-0 Washer, fuel tank
NS50C,NS60A,NS70A2 D6.5-D16-1.5MMWasher, fuel tank
NS50C,NS60A,NS70A2 D6.5-D16-1.5MM -
00353-66014-1 Cam Rod UL
NS50C,NS60A,NS70A2Cam Rod UL
NS50C,NS60A,NS70A2 -
00353-66110-0 Shift Rod Lever
NS50C,NS60A,NS70A2Shift Rod Lever
NS50C,NS60A,NS70A2 -
00350-62415-0 O-Ring
NS50C,NS60A,NS70A2 D3.5-D22O-Ring
NS50C,NS60A,NS70A2 D3.5-D22 -
1353-66011-0 Clutch CamClutch Cam
-
2951403-0314 Spring WasherSpring Washer
-
3353-66013-0 Cam Rod LCam Rod L
-
3353-66014-0 Cam Rod ULCam Rod UL
-
5353-66031-1 Bushing, cam rodBushing, cam rod
-
6353-66024-0 StopperStopper
-
7910121-0612 BoltBolt
-
8941303-0600 New partNew part
-
9345-66021-0 O-Ring
1.9-6.8O-Ring
1.9-6.8 -
10350-62415-0 O-Ring
03.05.2022 0:00:00O-Ring
03.05.2022 0:00:00 -
11353-66215-0 Shift RodShift Rod
-
12353-66421-0 Joint, shift rodJoint, shift rod
-
13951403-0316 Spring WasherSpring Washer
-
14353-66110-0 Shift Rod LeverShift Rod Lever
-
15930403-1000 Nylon Nut
P1.5Nylon Nut
P1.5 -
16353-66145-0 Holder shift lever shaftHolder shift lever shaft
-
17910114-0625 BoltBolt
-
18332-66308-0 Washer, fuel tank
6.5-16-1.5mmWasher, fuel tank
6.5-16-1.5mm -
19332-61315-0 Washer
10.5-18-1.5mmWasher
10.5-18-1.5mm -
20353-66225-0 Shift Lever ShaftShift Lever Shaft
-
21345-66226-0 Grommet, 17-3Grommet, 17-3
