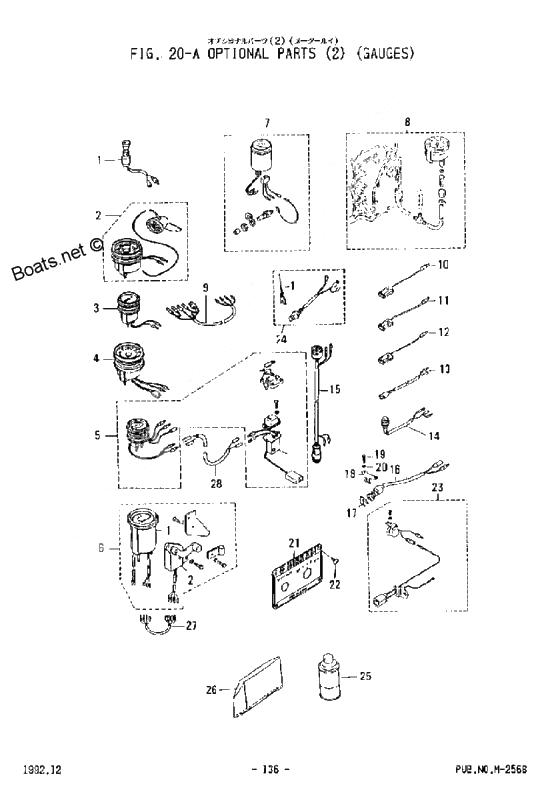

Gauges для Tohatsu M60A - 2002 года выпуска`
-
№АртикулНазвание
-
00910103-0616 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00353-72539-0 Lead Wire Tachometer
NS50C,NS60A,NS70A2 (FOR F TYPE)Lead Wire Tachometer
NS50C,NS60A,NS70A2 (FOR F TYPE) -
00386-72323-0 Touch-up paint (metalic cobalt blue)
NS50C,NS60A,NS70A2 6 SPRAY CANS/CASETouch-up paint (metalic cobalt blue)
NS50C,NS60A,NS70A2 6 SPRAY CANS/CASE -
00353-72521-1 Switch Meter Lamp
NS50C,NS60A,NS70A2 (FOR P TYPE)Switch Meter Lamp
NS50C,NS60A,NS70A2 (FOR P TYPE) -
00941303-0600 New part
NS50C,NS60A,NS70A2New part
NS50C,NS60A,NS70A2 -
00353-06930-1 Stop switch
NS50C,NS60A,NS70A2 (FOR P TYPE)Stop switch
NS50C,NS60A,NS70A2 (FOR P TYPE) -
003A3-72573-0 Extension cord (2m) trim meter
NS50C,NS60A,NS70A2 (FOR P TYPE)Extension cord (2m) trim meter
NS50C,NS60A,NS70A2 (FOR P TYPE) -
00385-72522-0 СП
NS50C,NS60A,NS70A2 (FOR P TYPE)СП
NS50C,NS60A,NS70A2 (FOR P TYPE) -
00385-76201-0 Panel Main Switch
NS50C,NS60A,NS70A2 (FOR P TYPE)Panel Main Switch
NS50C,NS60A,NS70A2 (FOR P TYPE) -
003A3-76114-0 10p extension cord (2m)
NS50C,NS60A,NS70A2 (FOR P TYPE)10p extension cord (2m)
NS50C,NS60A,NS70A2 (FOR P TYPE) -
003B7-72652-0 Cord, fuel meter
NS50C,NS60A,NS70A2Cord, fuel meter
NS50C,NS60A,NS70A2 -
003A3-72537-0 Lead wire meter
NS50C,NS60A,NS70A2 (FOR P TYPE)Lead wire meter
NS50C,NS60A,NS70A2 (FOR P TYPE) -
00921-16451-6 Screw (4.5-16)
NS50C,NS60A,NS70A2Screw (4.5-16)
NS50C,NS60A,NS70A2 -
003A3-76086-0 Neutral switch
NS50C,NS60A,NS70A2 (FOR P TYPE)Neutral switch
NS50C,NS60A,NS70A2 (FOR P TYPE) -
00353-72546-0 Assist Cord(Red)
NS50C,NS60A,NS70A2 (FOR P TYPE)Assist Cord(Red)
NS50C,NS60A,NS70A2 (FOR P TYPE) -
00353-76170-1 Over-heat buzzer assembly
NS50C,NS60A,NS70A2 (FOR P TYPE)Over-heat buzzer assembly
NS50C,NS60A,NS70A2 (FOR P TYPE) -
00350-76083-0 Actuator Neutral Switch
NS50C,NS60A,NS70A2Actuator Neutral Switch
NS50C,NS60A,NS70A2 -
00353-72547-0 Assist Cord(blue)
NS50C,NS60A,NS70A2 (FOR P TYPE)Assist Cord(blue)
NS50C,NS60A,NS70A2 (FOR P TYPE) -
003A3-06830-0 Emergency Stop Switch B Ass'y
NS50C,NS60A,NS70A2Emergency Stop Switch B Ass'y
NS50C,NS60A,NS70A2 -
00353-76081-0 Bracket neutral switch
NS50C,NS60A,NS70A2Bracket neutral switch
NS50C,NS60A,NS70A2 -
00353-72548-0 Assist Cord(black)
NS50C,NS60A,NS70A2 (FOR P TYPE)Assist Cord(black)
NS50C,NS60A,NS70A2 (FOR P TYPE) -
01346-06821-0 Lock, safety switch (w/rope)
NS50C,NS60A,NS70A2Lock, safety switch (w/rope)
NS50C,NS60A,NS70A2 -
1353-72521-1 Switch Meter Lamp
(For P Type)Switch Meter Lamp
(For P Type) -
2353-72522-0 Speedometer assembly
(For P Type)Speedometer assembly
(For P Type) -
3353-72524-0 Hourmeter assembly
(For P Type)Hourmeter assembly
(For P Type) -
4346-72530-0 TachometerTachometer
-
5353-72523-0 Fuel meter assembly
(For P Type)Fuel meter assembly
(For P Type) -
5-1353-72511-0 Fuel gauge censor unit
(For P Type)Fuel gauge censor unit
(For P Type) -
7353-72526-0 Water temperature meter assembly
(For P Type)Water temperature meter assembly
(For P Type) -
8353-72527-0 Water pressure meter assembly
(For P Type)Water pressure meter assembly
(For P Type) -
93A3-72537-0 Lead wire meter
(For P Type)Lead wire meter
(For P Type) -
10353-72546-0 Assist Cord(Red)
(For P Type)Assist Cord(Red)
(For P Type) -
11353-72547-0 Assist Cord(blue)
(For P Type)Assist Cord(blue)
(For P Type) -
12353-72548-0 Assist Cord(black)
(For P Type)Assist Cord(black)
(For P Type) -
13353-72539-0 Lead Wire Tachometer
(For P Type)Lead Wire Tachometer
(For P Type) -
14353-06930-1 Stop switch
(For P Type)Stop switch
(For P Type) -
153A3-76114-0 10p extension cord (2m)
(For P Type)10p extension cord (2m)
(For P Type) -
16353-76080-1 Neutral switch
(For P Type)Neutral switch
(For P Type) -
17350-76083-0 Actuator Neutral SwitchActuator Neutral Switch
-
18353-76081-0 Bracket neutral switchBracket neutral switch
-
19910103-0616 BoltBolt
-
20941303-0600 New partNew part
-
21385-76201-0 Panel Main Switch
(For P Type)Panel Main Switch
(For P Type) -
23353-76170-1 Over-heat buzzer assembly
(For P Type)Over-heat buzzer assembly
(For P Type) -
24353-06820-1 Lock safety switch (w/curl)
(For F Type)Lock safety switch (w/curl)
(For F Type) -
24-1346-06821-0 Lock, safety switch (w/rope)Lock, safety switch (w/rope)
-
253A3-72573-0 Extension cord (2m) trim meter
(For P Type)Extension cord (2m) trim meter
(For P Type)
