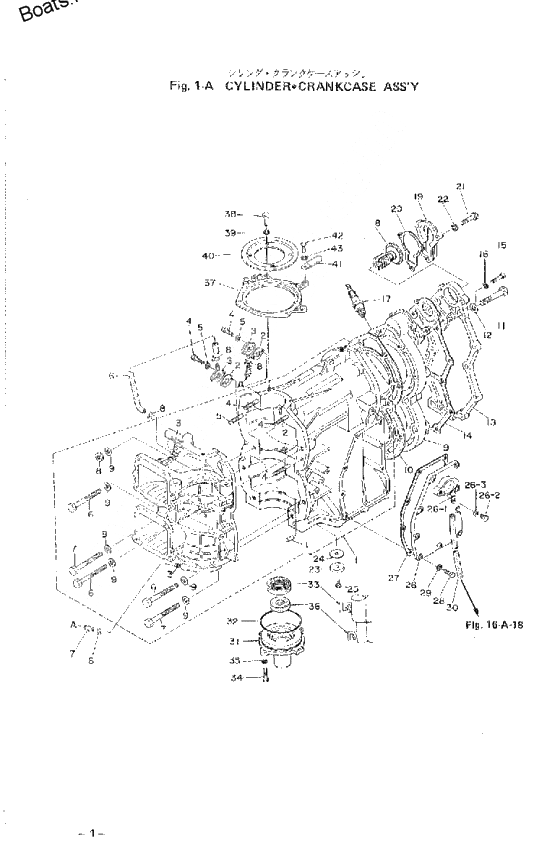

Cylinder crank case assembly для Tohatsu M60A - 2002 года выпуска`
-
№АртикулНазвание
-
1360-01100-1 Cylinder & crankcase ass'yCylinder & crankcase ass'y
-
1-1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
1-2345-00117-0 Dowel PinDowel Pin
-
1-3338-01131-1 ЗолотникЗолотник
-
1-5915-34084-0 Stud bolt cStud bolt c
-
1-6916-14086-0 Bolt a, crank caseBolt a, crank case
-
1-9345-01015-0 Washer
8.5-19.5-3.2mmWasher
8.5-19.5-3.2mm -
2353-01151-0 Check ValveCheck Valve
-
3353-01152-0 Cap,check valveCap,check valve
-
5940-13050-0 WasherWasher
-
8338-01133-0 ClipClip
-
9360-01001-1 Cylinder headCylinder head
-
13353-01021-1 Cover, Cylinder HeadCover, Cylinder Head
-
14353-01024-1 Gasket, head coverGasket, head cover
-
179701-0-1009 New part
NGKB8HS10New part
NGKB8HS10 -
18353-01030-0 サーモスタットサーモスタット
-
19353-01031-0 Cap, thermostatCap, thermostat
-
20353-01032-0 Прокладка крышки термостатаПрокладка крышки термостата
-
22941303-0600 New partNew part
-
23338-60218-1 AnodeAnode
-
24338-60219-0 GasketGasket
-
25910103-0616 BoltBolt
-
26353-02301-2 Exhaust CoverExhaust Cover
-
26-1353-01137-0 L-NippleL-Nipple
-
26-3332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
27353-02305-0 Gasket exhaust coverGasket exhaust cover
-
31353-01210-0 Head crank caseHead crank case
-
32151-00053-0 O-Ring
2.0-66.5O-Ring
2.0-66.5 -
33126-00121-0 Oil seal 30-45-8
30-45-8mmOil seal 30-45-8
30-45-8mm -
34910103-0620 BoltBolt
-
36353-01215-0 Oil Seal
16.8-28-6mmOil Seal
16.8-28-6mm -
37353-63723-1 Комплект колецКомплект колец
-
40346-63722-1 Guide PlateGuide Plate
-
41309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
