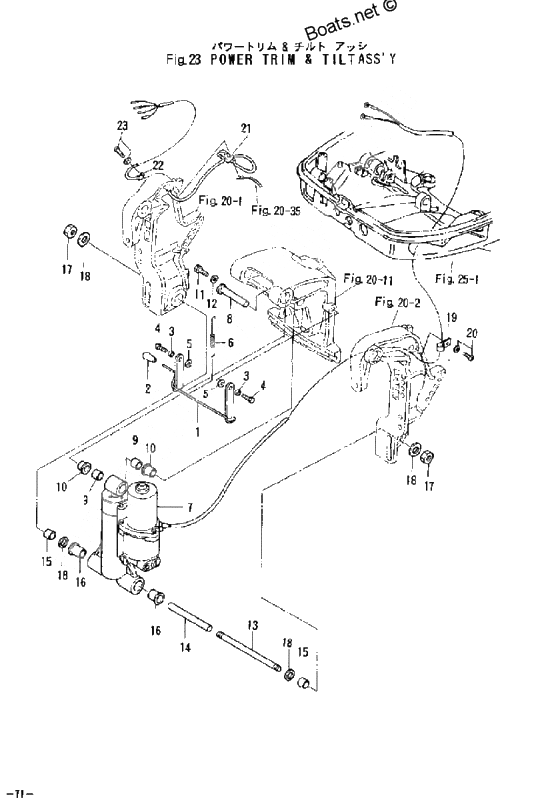

Power trim & tilt ass'y для Tohatsu M40D2 - 2002 года выпуска`
-
№АртикулНазвание
-
13C8S62472-0 Tilt stopper, pttTilt stopper, ptt
-
2369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
33B7-62457-0 Collar, 10.5-13.8-7.6Collar, 10.5-13.8-7.6
-
63C8-62473-2 Spring Tilt StopperSpring Tilt Stopper
-
73C8S77150-0 Power trim & tilt ass'y
FIG-24 PLEASE REFER TO FIG.24Power trim & tilt ass'y
FIG-24 PLEASE REFER TO FIG.24 -
83C8-77071-0 Upper Cylinder PinUpper Cylinder Pin
-
93C8-77075-0 New partNew part
-
103C8-77076-1 New partNew part
-
11910103-0612 New partNew part
-
12345-05122-0 New partNew part
-
133C8-77101-1 Cylinder pin lower
40D#36586-50D#53843-Cylinder pin lower
40D#36586-50D#53843- -
143C8-77105-0 Collar cylinder pin lower
40D#36586-50D#53843-Collar cylinder pin lower
40D#36586-50D#53843- -
163C8-77103-0 BushingBushing
-
173C8-77104-0 Nut 18Nut 18
-
183C8-77111-0 Washer, 19-34-3Washer, 19-34-3
-
19336-06973-0 Clamp Lead WireClamp Lead Wire
-
20921503-5612 Stud BoltStud Bolt
-
213B7-72574-0 Trim sender
FOR P TYPETrim sender
FOR P TYPE
