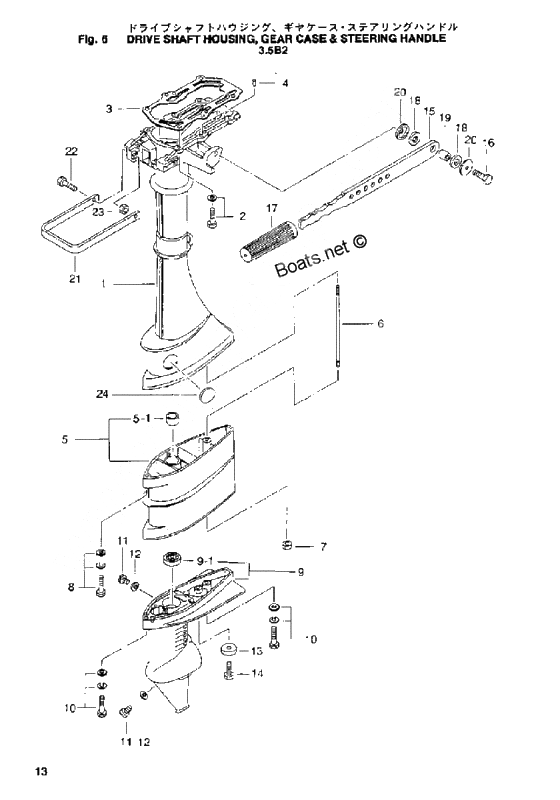

Drive shaft housing, gear case & steering handle для Tohatsu M3.5B2 - 2002 года выпуска`
-
№АртикулНазвание
-
13F0S61020-1 Drive shaft housing sDrive shaft housing s
-
3309-61012-1 Gasket drive shaft housingGasket drive shaft housing
-
4345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
53F0S61102-1 Extension housing l ass'y
SG for Transom LExtension housing l ass'y
SG for Transom L -
5-1369-60003-0 Bushing drive shaft
for Transom LBushing drive shaft
for Transom L -
63F0-61101-0 Stud bolt, 6-171
for Transom LStud bolt, 6-171
for Transom L -
7930103-0600 NutNut
-
9-19601-0-6000 Ball BearingBall Bearing
-
11332-60005-1 Oil plugOil plug
-
332-60005-2 Oil plugOil plug
-
12332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
13338-60218-2 New partNew part
-
14910103-0616 BoltBolt
-
15309S63011-0 Рулевой рычаг и кабельРулевой рычаг и кабель
-
16910103-0830 New partNew part
-
17309-63012-0 Grip steering handleGrip steering handle
-
18309-63024-0 Damper rubber steering handleDamper rubber steering handle
-
19309-63025-0 Spacer 8.4-12-14.2Spacer 8.4-12-14.2
-
20345-67115-0 Washer lower cover rubber mountWasher lower cover rubber mount
-
213F0S67521-0 Carrying HandleCarrying Handle
-
22910103-0625 BoltBolt
-
24369-61016-0 Grommet Drive Shaft HousingGrommet Drive Shaft Housing
