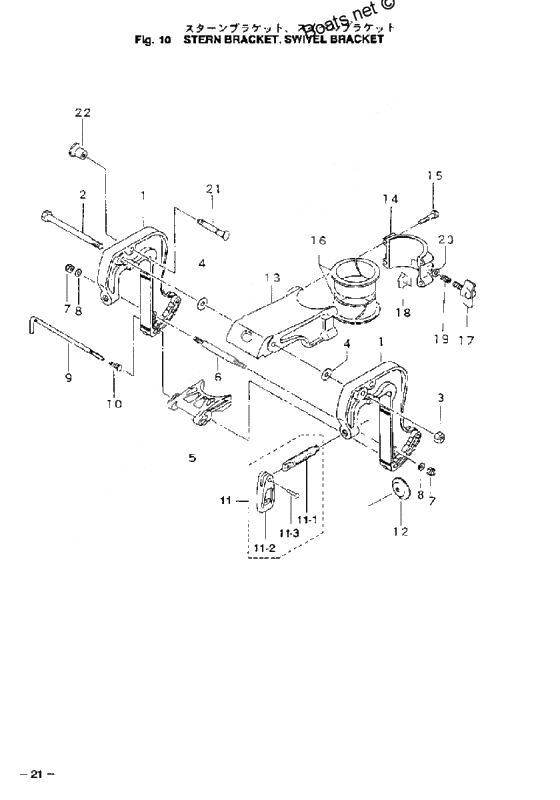

Stern bracket, swivel bracket для Tohatsu M3.5B - 2002 года выпуска
-
№АртикулНазвание
-
1309-62111-2 Stern bracket
Blue, -11516Stern bracket
Blue, -11516 -
1309S62111-4 Stern bracket
# 19570-Stern bracket
# 19570- -
1369-06820-0 Safety switch assySafety switch assy
-
1309-70021-3 Gasket, Fuel Tank CapGasket, Fuel Tank Cap
-
1353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
1369-62103-0 Винт струбциныВинт струбцины
-
2307S62102-1 Handle, clamp screw
Gray, Not Interchangeable, 11517-Handle, clamp screw
Gray, Not Interchangeable, 11517- -
2309-62115-1 Bolt, stern bracketBolt, stern bracket
-
2353-72540-0 Spark testerSpark tester
-
23F0S67003-5 Motor cover, right (w/decal)
Gray, Not Interchangeable, 11517-Motor cover, right (w/decal)
Gray, Not Interchangeable, 11517- -
2307-62102-1 Handle, clamp screw
Blue, -11516Handle, clamp screw
Blue, -11516 -
33C8-62104-0 Rivet 3-22Rivet 3-22
-
3386-72323-0 Touch-up paint (metalic cobalt blue)Touch-up paint (metalic cobalt blue)
-
3910103-0612 New partNew part
-
4921503-0616 Stud BoltStud Bolt
-
4307-62116-0 Washer, stern bracketWasher, stern bracket
-
5309-67006-0 Set plate motor coverSet plate motor cover
-
5309-62212-2 Thrust supporterThrust supporter
-
5309-62212-1 Thrust supporter
Blue, -11516Thrust supporter
Blue, -11516 -
53F0-64111-0 Test PropellerTest Propeller
-
6309-62118-0 Distance piece bracketDistance piece bracket
-
6309-67007-0 Nut motor cover set plateNut motor cover set plate
-
7930103-0600 NutNut
-
7921603-0510 Stud BoltStud Bolt
-
8941303-0600 New partNew part
-
8940-13060-0 WasherWasher
-
8307-67005-0 Grommet plug cap coverGrommet plug cap cover
-
9309-62121-0 Thrust RodThrust Rod
-
9309-06927-1 Cover, plug cap
Blue, -11516Cover, plug cap
Blue, -11516 -
10309-70010-0 Fuel tankFuel tank
-
10309-62122-0 Spring, thrust rodSpring, thrust rod
-
11309-70020-1 Fuel tank capFuel tank cap
-
11369-62100-0 Clamp screw assy
Blue, -11516Clamp screw assy
Blue, -11516 -
11-1369-62103-0 Винт струбциныВинт струбцины
-
11-2307S62102-1 Handle, clamp screwHandle, clamp screw
-
11-33C8-62104-0 Rivet 3-22Rivet 3-22
-
12332-62101-0 Pad clamp screwPad clamp screw
-
12309-70036-0 Seal rubber fuel tankSeal rubber fuel tank
-
13309S62391-1 Swivel bracket aSwivel bracket a
-
13309-62391-0 Swivel bracket a
Blue, -11516Swivel bracket a
Blue, -11516 -
13309-70015-0 Spacer 7.2-10-6Spacer 7.2-10-6
-
13N09-62391-0 Swivel bracket assy a
Gray, Not Interchangeable, 11517-Swivel bracket assy a
Gray, Not Interchangeable, 11517- -
14N09-62392-0 Swivel bracket assy b
Gray, Not Interchangeable, 11517-Swivel bracket assy b
Gray, Not Interchangeable, 11517- -
14309S62392-1 Swivel bracket bSwivel bracket b
-
14910-4D062-0 BoltBolt
-
14309-62392-0 Swivel bracket b
Blue, -11516Swivel bracket b
Blue, -11516 -
15941-3U060-0 Spring WasherSpring Washer
-
15910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
16309-70016-0 WasherWasher
-
16309-62321-1 Pivot bushingPivot bushing
-
17309-70011-0 New partNew part
-
17309-62442-0 Steering adjust screw
Blue, -11516Steering adjust screw
Blue, -11516 -
17309S62442-1 Steering adjust screw
Gray, Not Interchangeable, 11517-Steering adjust screw
Gray, Not Interchangeable, 11517- -
189810-5-0250 Fuel pipeFuel pipe
-
18309-62441-1 Friction PieceFriction Piece
-
18309-62441-2 Friction Piece
# 18721-Friction Piece
# 18721- -
19309-62446-0 Steering adjust springSteering adjust spring
-
19338-02215-0 ClipClip
-
20940103-0600 WasherWasher
-
20309-64122-2 New partNew part
-
21951503-0435 New partNew part
-
21309-62464-0 Tilt StopperTilt Stopper
-
22309-72100-0 Tool assyTool assy
-
22309-62463-0 Knob Tilt StopperKnob Tilt Stopper
