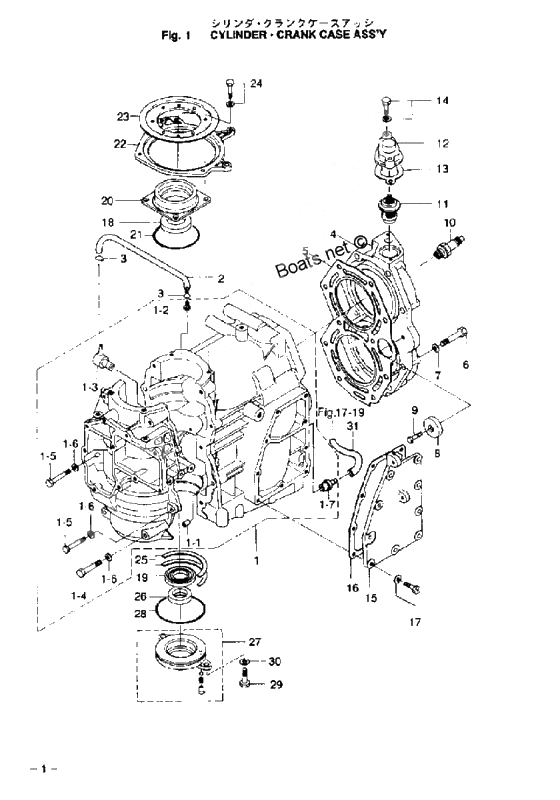

Cylinder - crank case assembly для Tohatsu M25C3 - 2002 года выпуска`
-
№АртикулНазвание
-
1346B01100-3 Cylinder & crank case assy
25C2 #27906-, 30A3 #21031-Cylinder & crank case assy
25C2 #27906-, 30A3 #21031- -
2338-01131-1 ЗолотникЗолотник
-
3338-01133-0 ClipClip
-
33B2-01160-0 Check valve nipple assyCheck valve nipple assy
-
43A1B01001-0 Головка цилиндров
25C2 #27906-, 30A3 #21031-Головка цилиндров
25C2 #27906-, 30A3 #21031- -
4916124-0845 BoltBolt
-
5346-01005-0 Gasket cylinder headGasket cylinder head
-
5916124-0840 BoltBolt
-
6940121-0800 WasherWasher
-
7346-01137-0 Joint water pipe7-7Joint water pipe7-7
-
7345-01015-0 Washer
тИЕ8.5 - тИЕ19.5 - 3.2mmWasher
тИЕ8.5 - тИЕ19.5 - 3.2mm -
8338-60218-2 New partNew part
-
9910103-0616 BoltBolt
-
109701-0-1005 9701-1-1005
NGK B7HS-109701-1-1005
NGK B7HS-10 -
11345-01030-0 サーモスタットサーモスタット
-
13346-01032-0 New partNew part
-
14910121-6623 BoltBolt
-
15346B02301-0 Exhaust CoverExhaust Cover
-
16346-02305-0 Gasket exhaust coverGasket exhaust cover
-
17910421-6518 BoltBolt
-
18126-00121-0 Oil seal 30-45-8
тИЕ30 - тИЕ45 - 8mmOil seal 30-45-8
тИЕ30 - тИЕ45 - 8mm -
19346-00122-0 OIL SEAL LOWER, CRANKSHAFT
тИЕ24 - тИЕ40 - 8mmOIL SEAL LOWER, CRANKSHAFT
тИЕ24 - тИЕ40 - 8mm -
20345-01401-0 Agneto baseAgneto base
-
21338-01403-0 O-Ring
тИЕ2 - тИЕ55.5O-Ring
тИЕ2 - тИЕ55.5 -
22353-63723-1 Комплект колецКомплект колец
-
23346-63722-2 Guide Plate
25C2 #84775-, 30A3 #78812-Guide Plate
25C2 #84775-, 30A3 #78812- -
25346-00115-0 Thrust Plate CrankshaftThrust Plate Crankshaft
-
26346-01215-0 New part
тИЕ16 - тИЕ28 - 6mmNew part
тИЕ16 - тИЕ28 - 6mm -
27346-01210-0 Head crank caseHead crank case
-
28346-01216-0 O-Ring
тИЕ1.7 - тИЕ59O-Ring
тИЕ1.7 - тИЕ59 -
29910114-0616 BoltBolt
-
30941303-0600 New partNew part
