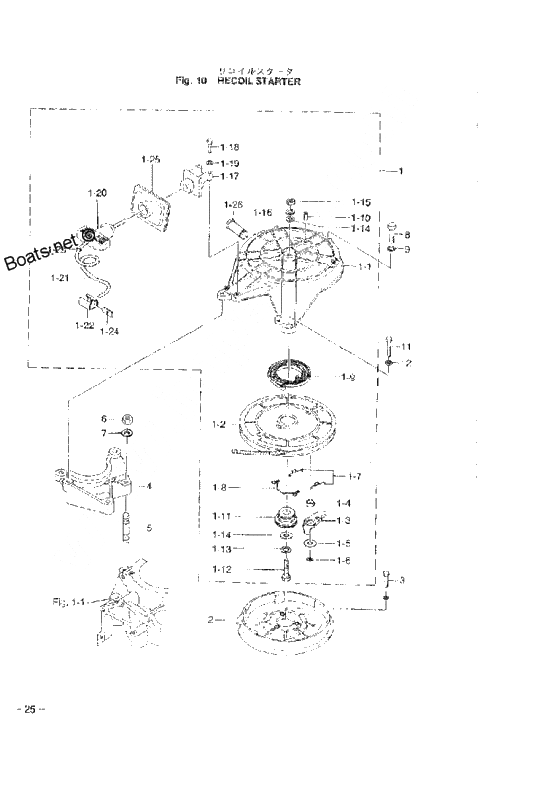

Recoil starter для Tohatsu M25C2 - 2002 года выпуска
-
№АртикулНазвание
-
1346-05000-1 Recoil starter ass'yRecoil starter ass'y
-
1-1345-05105-1 Starter CaseStarter Case
-
1-10951403-0316 Spring WasherSpring Washer
-
1-11345-05132-0 Вал стартераВал стартера
-
1-12910114-0830 BoltBolt
-
1-13941303-0800 Spring WasherSpring Washer
-
1-14940121-0800 WasherWasher
-
1-15930103-0800 NutNut
-
1-16941322-0800 Spring WasherSpring Washer
-
1-17336-05014-0 Guide starter ropeGuide starter rope
-
1-18910114-0625 BoltBolt
-
1-19941303-0600 New partNew part
-
1-2345-05104-1 ReelReel
-
1-20338-05019-0 Starter HandleStarter Handle
-
1-21345-05013-1 Starter RopeStarter Rope
-
1-22338-05131-0 Rope anchorRope anchor
-
1-23350-05136-0 O-RingO-Ring
-
1-24345-05134-0 Plate starter ropePlate starter rope
-
1-25346-05116-1 Seal plate starterSeal plate starter
-
1-26345-05225-0 Shaft starter lock leverShaft starter lock lever
-
1-3345-05003-1 RatchetRatchet
-
1-4345-05135-1 BushingBushing
-
1-5345-05122-0 New partNew part
-
1-6945303-0500 E-RingE-Ring
-
1-7345-05123-0 Ratchet guide aRatchet guide a
-
1-8345-05124-0 Ratchet guide bRatchet guide b
-
1-9345-05004-0 Spring WasherSpring Washer
-
2345-05901-1 Starter pulleyStarter pulley
-
3910121-6625 BoltBolt
-
4346B05101-1 Starter bracketStarter bracket
-
6930121-0800 NutNut
-
7940121-0800 WasherWasher
-
8910114-0830 BoltBolt
-
9941303-0800 Spring WasherSpring Washer
-
10910114-0625 BoltBolt
-
11941303-0600 New partNew part
