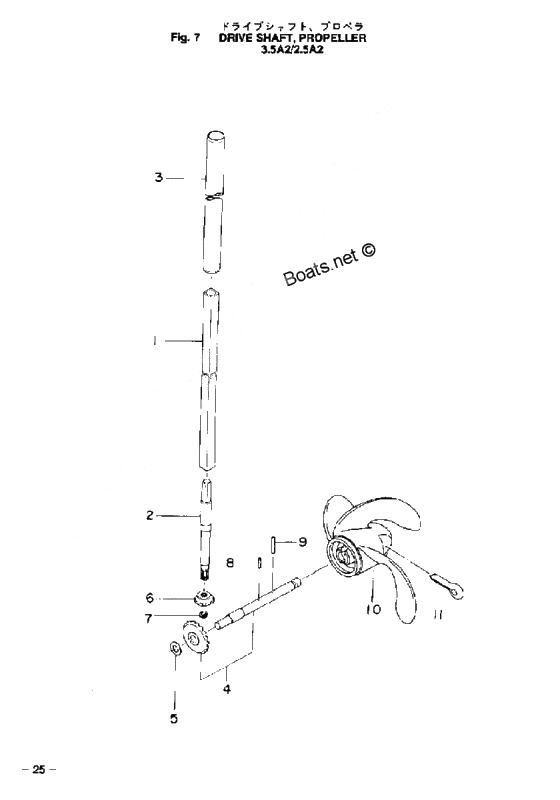

Drive shaft, propeller для Tohatsu M2.5A2 - 2002 года выпуска`
-
№АртикулНазвание
-
1309-64312-1 Drive shaft s upperDrive shaft s upper
-
1309-64313-1 Drive shaft l upperDrive shaft l upper
-
2309-64311-1 Drive shaft lowerDrive shaft lower
-
3309-64322-0 Guard pipe s drive shaftGuard pipe s drive shaft
-
3309-64323-0 Guard pipe l drive shaftGuard pipe l drive shaft
-
4309-64210-0 Propeller shaft ass'yPropeller shaft ass'y
-
5309-64014-0 Shim 17.5-10.2-0.2Shim 17.5-10.2-0.2
-
5309-64015-0 Shim 17.5-10.2-0.1Shim 17.5-10.2-0.1
-
5309-64017-0 Shim 17.5-10.2-0.05Shim 17.5-10.2-0.05
-
6309-64020-0 Bevel Gear BBevel Gear B
-
7945307-0700 E-RingE-Ring
-
8309-65022-0 Шпонка крылаткиШпонка крылатки
-
9309-64122-2 New partNew part
-
9309-64126-0 Shear pin b, 4-24 (for aluminium
OptionShear pin b, 4-24 (for aluminium
Option -
10309-64106-0 Prop 3 blade resin (7.4 dia. x 5.7 pitch)
STD for S&LProp 3 blade resin (7.4 dia. x 5.7 pitch)
STD for S&L -
10309-64107-0 Propeller g6 (aluminium) (3x188x
OptionPropeller g6 (aluminium) (3x188x
Option -
10314-64103-0 Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
OptionProp 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
Option -
314B64103-0 Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plasticProp 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
-
11951503-0435 New partNew part
