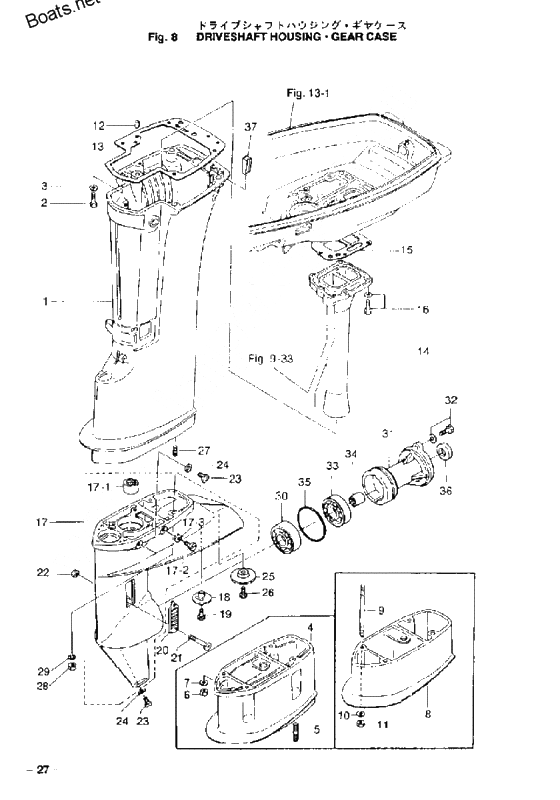

Drivershaft housing, gear case для Tohatsu M15D2 - 2002 года выпуска`
-
№АртикулНазвание
-
1350S61020-3 Drive shaft housing (s)Drive shaft housing (s)
-
1350S61030-3 Drive shaft housing lDrive shaft housing l
-
3334-66233-0 Bracket washerBracket washer
-
4350S61110-0 Extension housing ulExtension housing ul
-
6930103-0800 NutNut
-
8350S61120-0 Extension housing llExtension housing ll
-
9915303-8100 Stud BoltStud Bolt
-
12345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
13350-61012-1 Gasket drive shaft housingGasket drive shaft housing
-
14362-02311-0 Exhaust PipeExhaust Pipe
-
15362-02312-0 Gasket, Exhaust PipeGasket, Exhaust Pipe
-
17398S60000-0 New partNew part
-
17-1350-60211-0 Needle BearingNeedle Bearing
-
17-2332-60005-1 Oil plugOil plug
-
332-60005-2 Oil plugOil plug
-
17-3332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
18369-60206-0 Water StrainerWater Strainer
-
19921803-0620 Stud BoltStud Bolt
-
20362-60206-0 Water StrainerWater Strainer
-
21921503-0430 Stud BoltStud Bolt
-
253M2-60218-0 AnodeAnode
-
26910103-0616 BoltBolt
-
303K8-60215-0 Ball bearing, 6205rBall bearing, 6205r
-
31362S60101-0 Housing propeller shaftHousing propeller shaft
-
339601-0-6205 Подшипник 25x52x15Подшипник 25x52x15
-
34362-60211-0 Needle BearingNeedle Bearing
-
35121-32071-0 O-RingO-Ring
-
36346-65013-0 Oil' seal, 17-30-9Oil' seal, 17-30-9
-
37398-61207-0 Grommet idle portGrommet idle port
