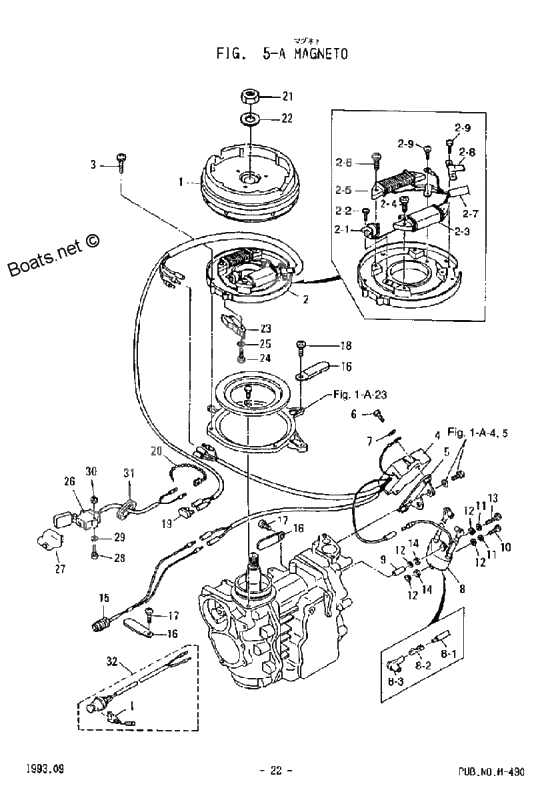

Magneto для Tohatsu M15C - 2002 года выпуска`
-
№АртикулНазвание
-
003G2-06040-0 Ingnition coil ass'y (resistance)
NS18D,15C,9.9C-OPTIONIngnition coil ass'y (resistance)
NS18D,15C,9.9C-OPTION -
00922-5D651-0 Screw
NS18D,15C,9.9CScrew
NS18D,15C,9.9C -
00398-06830-0 Safety Switch Ass'y
NS18D,15C,9.9CSafety Switch Ass'y
NS18D,15C,9.9C -
00941303-0600 New part
NS18D,15C,9.9CNew part
NS18D,15C,9.9C -
00910-13051-4 Bolt
NS18D,15C,9.9CBolt
NS18D,15C,9.9C -
003G2-06001-0 Flywheel cup
NS18D,15C,9.9CFlywheel cup
NS18D,15C,9.9C -
00353-76037-0 Plug Cable Terminal
NS18D,15C,9.9CPlug Cable Terminal
NS18D,15C,9.9C -
00910-13065-0 Bolt
NS18D,15C,9.9CBolt
NS18D,15C,9.9C -
00940-13050-0 Washer
NS18D,15C,9.9CWasher
NS18D,15C,9.9C -
00336-76091-0 Band Battery Cord
NS18D,15C,9.9CBand Battery Cord
NS18D,15C,9.9C -
00921-53061-0 Screw (with spring washer)
NS18D,15C,9.9CScrew (with spring washer)
NS18D,15C,9.9C -
00151-33159-0 Gasket,combination gauge
NS18D,15C,9.9CGasket,combination gauge
NS18D,15C,9.9C -
00361-06940-0 Plug receptacle assembly
NS18D,15C,9.9C-OPTIONPlug receptacle assembly
NS18D,15C,9.9C-OPTION -
00334-00132-0 Nut 16p1.5l
NS18D,15C,9.9CNut 16p1.5l
NS18D,15C,9.9C -
003G2-06060-1 C.d.unit
NS18D,15C,9.9CC.d.unit
NS18D,15C,9.9C -
00398-06972-0 Clamp,6.5-67P
NS18D,15C,9.9CClamp,6.5-67P
NS18D,15C,9.9C -
00940-13040-0 Washer, consent
NS18D,15C,9.9C-OPTIONWasher, consent
NS18D,15C,9.9C-OPTION -
00334-00133-0 Washer magneto
NS18D,15C,9.9CWasher magneto
NS18D,15C,9.9C -
00940-13060-0 Washer
NS18D,15C,9.9CWasher
NS18D,15C,9.9C -
00309-06972-0 Clamp,6.5-47.5P
NS18D,15C,9.9CClamp,6.5-47.5P
NS18D,15C,9.9C -
00930103-0500 Nut
NS18D,15C,9.9C-OPTIONNut
NS18D,15C,9.9C-OPTION -
00128-02605-1 Spacer,6-5-28.5
NS18D,15C,9.9CSpacer,6-5-28.5
NS18D,15C,9.9C -
00362-63718-0 Throttle Cam
NS18D,15CThrottle Cam
NS18D,15C -
003G2-06050-0 Ignition coil ass'y
NS18D,15C,9.9CIgnition coil ass'y
NS18D,15C,9.9C -
00345-67169-0 Grommet lighting cord
NS18D,15C,9.9C-OPTIONGrommet lighting cord
NS18D,15C,9.9C-OPTION -
00910103-0620 Bolt
NS18D,15C,9.9CBolt
NS18D,15C,9.9C -
00364-63718-0 Throttle Cam
NS9.9CThrottle Cam
NS9.9C -
013G2-06053-0 Ignition Coil
NS18D,15C,9.9CIgnition Coil
NS18D,15C,9.9C -
01353-06821-0 Lock, lanyard stop switch
NS18D,15C,9.9CLock, lanyard stop switch
NS18D,15C,9.9C -
013G2-06022-0 Trigger coil set
NS18D,15C,9.9CTrigger coil set
NS18D,15C,9.9C -
023B2-06926-0 Terminal plug cap
NS18D,15C,9.9CTerminal plug cap
NS18D,15C,9.9C -
02921521-6406 Stud Bolt
NS18D,15C,9.9CStud Bolt
NS18D,15C,9.9C -
033B2-06921-0 Plug cap
NS18D,15C,9.9CPlug cap
NS18D,15C,9.9C -
03346-06999-0 Plug cap(registance)
NS18D,15C,9.9C-OPTIONPlug cap(registance)
NS18D,15C,9.9C-OPTION -
04921521-6524 Stud Bolt
NS18D,15C,9.9CStud Bolt
NS18D,15C,9.9C -
06921-5D652-0 Screw
NS18D,15C,9.9CScrew
NS18D,15C,9.9C -
073G2-06024-0 Magneto cord
NS18D,15C,9.9CMagneto cord
NS18D,15C,9.9C -
08350-06025-0 Holder, magneto cord
NS18D,15C,9.9CHolder, magneto cord
NS18D,15C,9.9C -
09922521-0406 Stud Bolt
NS18D,15C,9.9CStud Bolt
NS18D,15C,9.9C
