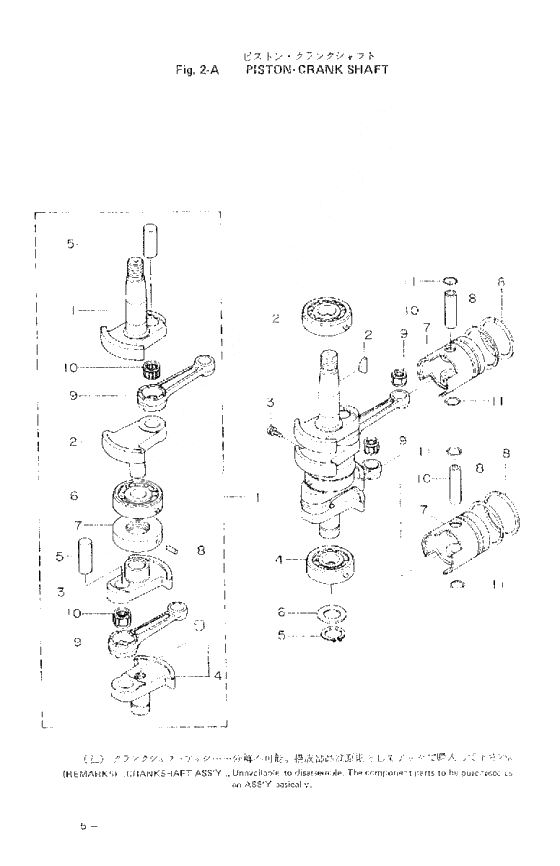

Piston & crank shaft для Tohatsu M15B2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 00
    350-00021-0 Палец поршня
    NS18C2 D10-D14-52MM
    Палец поршня
    NS18C2 D10-D14-52MM
  • 00
    351-00004-0 Piston (0.5mm o/s)
    NS15B2,12C2,9.9B2
    Piston (0.5mm o/s)
    NS15B2,12C2,9.9B2
  • 00
    922-51651-6 Srew (with spring washer)
    NS18C2,15B2,12C2,9.9B2
    Srew (with spring washer)
    NS18C2,15B2,12C2,9.9B2
  • 00
    332-00021-0 Палец поршня
    NS15B2,12C2,9.9B2 D10-D14-44MM
    Палец поршня
    NS15B2,12C2,9.9B2 D10-D14-44MM
  • 00
    350-00011-0 Кольцо поршня
    NS18C2
    Кольцо поршня
    NS18C2
  • 00
    945-12250-0 C-Ring
    NS18C2,15B2,12C2,9.9B2
    C-Ring
    NS18C2,15B2,12C2,9.9B2
  • 00
    350-00024-0 Clip
    NS18C2,15B2,12C2,9.9B2
    Clip
    NS18C2,15B2,12C2,9.9B2
  • 00
    351-00011-0 Поршневые кольца
    NS15B2,12C2,9.9B2
    Поршневые кольца
    NS15B2,12C2,9.9B2
  • 00
    346-00116-0 Spacer main bearing
    NS18C2,15B2,12C2,9.9B2
    Spacer main bearing
    NS18C2,15B2,12C2,9.9B2
  • 00
    334-00131-0 Key Magneto
    NS18C2,15B2,12C2,9.9B2
    Key Magneto
    NS18C2,15B2,12C2,9.9B2
  • 00
    350-00014-0 Кольцо поршня
    NS18C2
    Кольцо поршня
    NS18C2
  • 00
    350-00030-0 Crankshaft assy (also needs 9311211600m)
    NS18C2,15B2,12C2,9.9B2
    Crankshaft assy (also needs 9311211600m)
    NS18C2,15B2,12C2,9.9B2
  • 3M2-00069-1 Crankshaft assy (also needs 9311211600m)
    Crankshaft assy (also needs 9311211600m)
  • 00
    350-00001-0 Piston (std)
    NS18C2
    Piston (std)
    NS18C2
  • 00
    351-00014-0 New part
    NS15B2,12C2,9.9B2
    New part
    NS15B2,12C2,9.9B2
  • 00
    351-00001-0 Piston std
    NS15B2,12C2,9.9B2
    Piston std
    NS15B2,12C2,9.9B2
  • 00
    350-00042-0 New part
    NS15B2,15B2,12C2,9.9B2
    New part
    NS15B2,15B2,12C2,9.9B2
  • 00
    350-00004-0 Piston (0.5 o/s)
    NS18C2
    Piston (0.5 o/s)
    NS18C2
  • 1
    350-00030-0 Crankshaft assy (also needs 9311211600m)
    Crankshaft assy (also needs 9311211600m)
  • 3M2-00069-1 Crankshaft assy (also needs 9311211600m)
    Crankshaft assy (also needs 9311211600m)
  • 1-1
    350-00031-0 Вал коленчатый
    Вал коленчатый
  • 1-10
    350-00043-0 Big end bearing
    Big end bearing
  • 1-2
    350-00032-0 Crankshaft b
    Crankshaft b
  • 1-3
    350-00033-0 Кольцо стопорное
    Кольцо стопорное
  • 1-4
    350-00034-1 Crankshaft d
    Crankshaft d
  • 1-5
    350-00061-0 Crank pin
    Crank pin
  • 1-6
    9603-3-6305 Подшипник главный
    Подшипник главный
  • 1-7
    350-00051-0 Labyrinth packing
    Labyrinth packing
  • 1-8
    951-42030-6 Spring Washer
    3-6 mm
    Spring Washer
    3-6 mm
  • 02
    350-00032-0 Crankshaft b
    NS18C2,15B2,12C2,9.9B2
    Crankshaft b
    NS18C2,15B2,12C2,9.9B2
  • 03
    350-00033-0 Кольцо стопорное
    NS18C2,15B2,12C2,9.9B2
    Кольцо стопорное
    NS18C2,15B2,12C2,9.9B2
  • 04
    350-00034-1 Crankshaft d
    NS18C2,15B2,12C2,9.9B2
    Crankshaft d
    NS18C2,15B2,12C2,9.9B2
  • 05
    350-00061-0 Crank pin
    NS18C2,15B2,12C2,9.9B2
    Crank pin
    NS18C2,15B2,12C2,9.9B2
  • 5
    945-12250-0 C-Ring
    C-Ring
  • 06
    350-00114-0 Main bearing center
    NS18C2,15B2,12C2,9.9B2
    Main bearing center
    NS18C2,15B2,12C2,9.9B2
  • 6
    346-00116-0 Spacer main bearing
    Spacer main bearing
  • 07
    350-00051-0 Labyrinth packing
    NS18C2,15B2,12C2,9.9B2
    Labyrinth packing
    NS18C2,15B2,12C2,9.9B2
  • 7
    351-00001-0 Piston std
    Piston std
  • 7
    351-00004-0 Piston (0.5mm o/s)
    Piston (0.5mm o/s)
  • 08
    951-42030-6 Spring Washer
    NS18C2,15B2,12C2,9.9B2 D3-6MM
    Spring Washer
    NS18C2,15B2,12C2,9.9B2 D3-6MM
  • 8
    351-00011-0 Поршневые кольца
    Поршневые кольца
  • 8
    351-00014-0 New part
    New part
  • 09
    350-00040-0 Connecting Rod
    NS18C2,15B2,12C2,9.9B2
    Connecting Rod
    NS18C2,15B2,12C2,9.9B2
  • 9
    350-00042-0 New part
    New part
  • 10
    332-00021-0 Палец поршня
    10-14-44mm
    Палец поршня
    10-14-44mm
  • 10
    350-00043-0 Big end bearing
    NS18C2,15B2,12C2,9.9B2
    Big end bearing
    NS18C2,15B2,12C2,9.9B2
  • 11
    350-00024-0 Clip
    Clip
  • 12
    334-00131-0 Key Magneto
    Key Magneto
  • 19
    350-00040-0 Connecting Rod
    Connecting Rod
