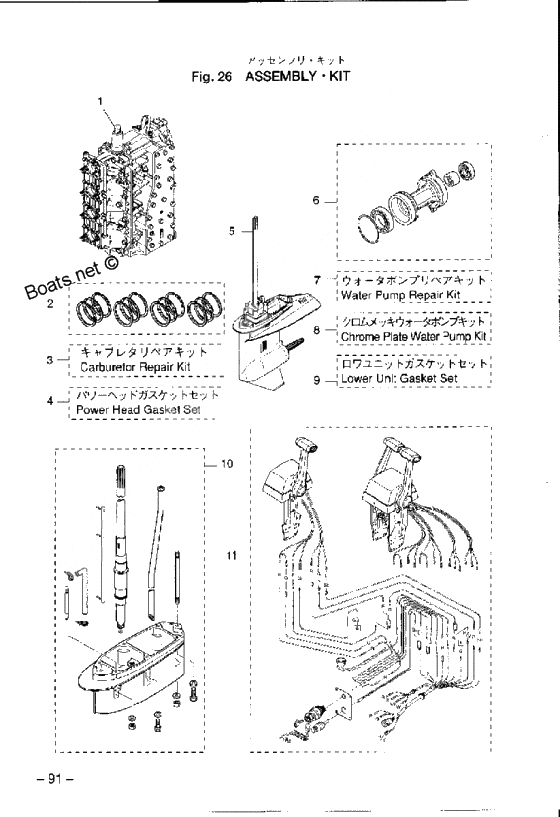

Assembly kit для Tohatsu M120A2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3C7B87110-1 Engine short block
    INCL. ENGINE BASE GASKET & SPARK PLUGS
    Engine short block
    INCL. ENGINE BASE GASKET & SPARK PLUGS
  • 1
    353-72406-0 Drive cleaner ass'y
    Drive cleaner ass'y
  • 2
    3C7-64111-0 Test Propeller
    Test Propeller
  • 2
    3C7-00015-0 Piston ring 2nd(0.5mm o/s)
    Piston ring 2nd(0.5mm o/s)
  • 2
    3C7-87123-0 Кольца поршневые
    Кольца поршневые
  • 2
    3C7-00011-0 Piston ring 1st(std)
    Piston ring 1st(std)
  • 2
    3C7-00012-0 Piston ring 2nd(std)
    Piston ring 2nd(std)
  • 2
    3C7-87124-0 Кольца поршневые
    Кольца поршневые
  • 2
    3C7-00014-0 Поршневые кольца
    Поршневые кольца
  • 3
    346-03232-0 Arm Pin Float
    Arm Pin Float
  • 3
    3C7-03182-0 Gasket a, carburetor cover
    Gasket a, carburetor cover
  • 3
    3B7-03240-0 Float Valve
    Float Valve
  • 3
    3C7-76114-0 Extension cord (11p)
    Extension cord (11p)
  • 3
    3C7-87122-1 Carburetor Rerair Kit
    Carburetor Rerair Kit
  • 3
    3C7-03183-0 Gasket b, carburetor cover
    Gasket b, carburetor cover
  • 3
    344-03244-0 Clip
    Clip
  • 3
    3C7-02011-0 Gasket, carburetor
    Gasket, carburetor
  • 3
    3C7-03184-0 Plate a, cover gasket
    Plate a, cover gasket
  • 3
    3F3-03234-0 Screw arm pin
    Screw arm pin
  • 3
    346-03222-0 O-ring, float
    O-ring, float
  • 3
    3C7-03185-0 Plate b, cover gasket
    Plate b, cover gasket
  • 3
    346-03256-0 Rubber cap
    Rubber cap
  • 3
    922503-6414 Stud Bolt
    Stud Bolt
  • 3
    3C7-03186-0 Stud Bolt
    Stud Bolt
  • 3
    336-03293-0 O-Ring
    O-Ring
  • 3
    346-03231-0 Float
    Float
  • 3
    334-03242-0 Игольчатый клапан
    Игольчатый клапан
  • 4
    3C7-01153-0 Gasket a, check valve
    Gasket a, check valve
  • 4
    3B7-02235-0 O-Ring A
    O-Ring A
  • 4
    3C7-01215-0 Oil Seal, 19.6-35-10
    Oil Seal, 19.6-35-10
  • 4
    3C7-01154-0 Gasket b, check valve
    Gasket b, check valve
  • 4
    3B7-02236-0 O???? b
    O???? b
  • 4
    3B7-00121-0 Oil seal, 35-58-9
    Oil seal, 35-58-9
  • 4
    3C7-72604-0 Extension cord meter
    Extension cord meter
  • 4
    3C7-01005-0 Gasket, Cyl. Head
    Gasket, Cyl. Head
  • 4
    3B7-09002-0 O-Ring
    O-Ring
  • 4
    3C7-02104-0 Gasket, inlet manifold
    Gasket, inlet manifold
  • 4
    3C7-01024-0 Gasket, head cover
    Gasket, head cover
  • 4
    3C8-71016-0 Gasket 36-52-2
    Gasket 36-52-2
  • 4
    3C7-02414-0 Gasket, air silencer
    Gasket, air silencer
  • 4
    353-01032-0 Прокладка крышки термостата
    Прокладка крышки термостата
  • 4
    3C7-01303-0 Gasket, engine base
    Gasket, engine base
  • 4
    3C7-02418-2 Gasket, air silencer cover
    Gasket, air silencer cover
  • 4
    3C7-02305-0 Gasket, exhaust cover
    Gasket, exhaust cover
  • 4
    3C7-87121-0 Power Head Gasket Set
    Power Head Gasket Set
  • 4
    346-04901-0 Gasket fuel pump
    Gasket fuel pump
  • 4
    171-00053-0 O-Ring
    O-Ring
  • 5
    3C7S87304-1 Lower unit ass'y ul
    FOR TRANSOM XL
    Lower unit ass'y ul
    FOR TRANSOM XL
  • 5
    3F3-72540-0 Ignition Checker
    Ignition Checker
  • 5
    3C7S87302-1 Lower unit ass'y l
    FOR TRANSOM L
    Lower unit ass'y l
    FOR TRANSOM L
  • 6
    3B7S87323-1 Propeller shaft housing ass'y
    Propeller shaft housing ass'y
  • 6
    332-72309-0 Grease (250g)
    24 TUBES/CASE N.A.F.N.
    Grease (250g)
    24 TUBES/CASE N.A.F.N.
  • 7
    3C7-65025-0 Guide Plate Water Pump
    Guide Plate Water Pump
  • 7
    3C7-65029-0 Gasket Pump Guide Plate
    Gasket Pump Guide Plate
  • 7
    3C7-87322-0 Water pump repair kit
    Water pump repair kit
  • 7
    941303-0800 Spring Washer
    Spring Washer
  • 7
    3C7-65021-0 Impeller, water pump
    Impeller, water pump
  • 7
    940103-0800 Washer -> 940113-0800
    Washer -> 940113-0800
  • 7
    3B7-65022-0 Key, water pump impeller
    Key, water pump impeller
  • 7
    3C7-65011-0 Liner Water Pump Case
    Liner Water Pump Case
  • 7
    332-72305-0 Gear oil (260cc)
    30 TUBES/CASE N.A.F.N.
    Gear oil (260cc)
    30 TUBES/CASE N.A.F.N.
  • 7
    3C7-65018-0 Seal Water Pump Case
    Seal Water Pump Case
  • 7
    332-72306-0 Gear oil (500ml)
    20 TUBES/CASE N.A.F.N.
    Gear oil (500ml)
    20 TUBES/CASE N.A.F.N.
  • 8
    3C7-65239-0 Guide plate chrome plated water pump
    Guide plate chrome plated water pump
  • 8
    3B7-72326-0 Paint tohatsu (92-05) - nissan (00-05) 12 oz spray -silver-gray
    N.A.F.N
    Paint tohatsu (92-05) - nissan (00-05) 12 oz spray -silver-gray
    N.A.F.N
  • 8
    3C7-65231-0 Chrome Plated Water Pump Kit
    Chrome Plated Water Pump Kit
  • 8
    3C7-65238-0 Liner chrome plated water pump case
    Liner chrome plated water pump case
  • 9
    3B7-60111-0 Oil seal, 30-50-12
    Oil seal, 30-50-12
  • 9
    3C7-60223-0 Oil seal, 22-42-7
    Oil seal, 22-42-7
  • 9
    3C7-87321-0 Lower Unit Gasket Set
    Lower Unit Gasket Set
  • 9
    3B7-60219-0 Packing, Trim Tab
    Packing, Trim Tab
  • 9
    3Y9-72304-0 Engine oil, 4.0l
    N.A.F.N
    Engine oil, 4.0l
    N.A.F.N
  • 9
    346-64084-0 Shim, 35-41.9-0.5
    Shim, 35-41.9-0.5
  • 9
    3C7-61012-0 Gasket drive shaft housing
    Gasket drive shaft housing
  • 9
    3AC-72300-0 Tohatsu super gold (1.0 liter)
    Engine Oil N.A.F.N.
    Tohatsu super gold (1.0 liter)
    Engine Oil N.A.F.N.
  • 9
    3B7-65015-0 O-Ring
    O-Ring
  • 9
    3B7-02312-0 New part
    New part
  • 9
    345-66021-0 O-Ring
    O-Ring
  • 9
    3B7-61181-0 New part
    New part
  • 9
    3B7-66023-0 O-Ring
    O-Ring
  • 9
    332-60006-0 Gasket (8.1x15.1)
    Gasket (8.1x15.1)
  • 9
    3B7-60103-0 O-Ring
    O-Ring
  • 9
    3B7-60016-0 O-Ring
    O-Ring
  • 10
    3C7S87314-0 Extension housing kit ul
    FOR TRANSOM XL
    Extension housing kit ul
    FOR TRANSOM XL
  • 10
    3C7-72316-0 Vinyl motor cover (4l)
    UNIQUE -3D9-72316-0
    Vinyl motor cover (4l)
    UNIQUE -3D9-72316-0
  • 11
    3C7-84490-1 Top mount remocon kit(rc6e)
    FOR SINGLE N.A.F.N.
    Top mount remocon kit(rc6e)
    FOR SINGLE N.A.F.N.
  • 11
    3C7-84540-1 Twin top mount remocon kit(rc6et)
    FOR TWIN N.A.F.N.
    Twin top mount remocon kit(rc6et)
    FOR TWIN N.A.F.N.
