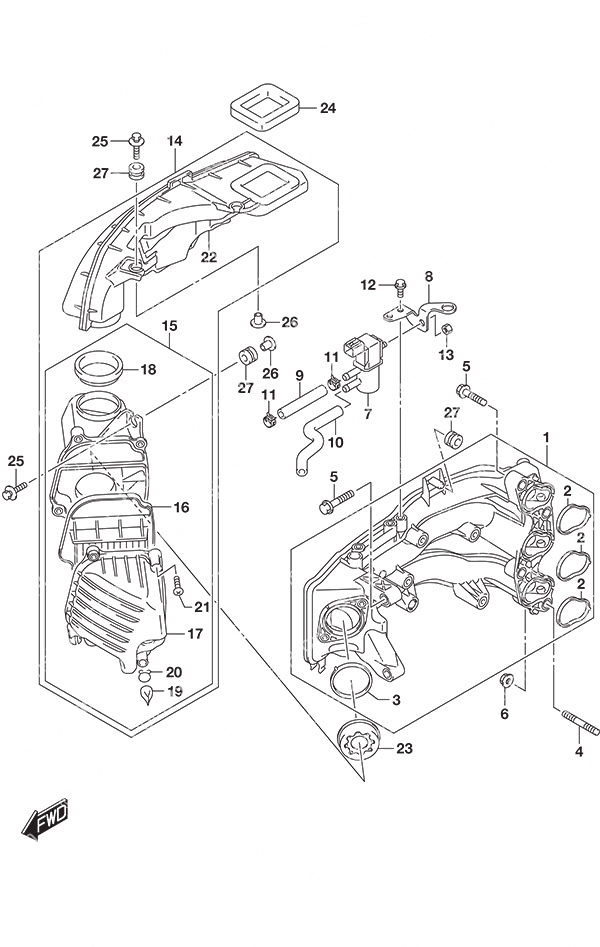

Fig. 122 - Intake Manifold для Suzuki DF 25A - 2020 года выпуска`
-
№АртикулНазвание
-
113110-94L00-000 Intake ManifoldIntake Manifold
-
213119-94L00-000 • Intake Manifold Gasket• Intake Manifold Gasket
-
313125-94L00-000 • Throttle Body Gasket• Throttle Body Gasket
-
401421-08357-000 Stud BoltStud Bolt
-
501550-0835C-000 BoltBolt
-
608316-10087-000 NutNut
-
718117-78K00-000 Evap Canister Purge ValveEvap Canister Purge Valve
-
818119-94L00-000 IAC Valve BracketIAC Valve Bracket
-
944421-12FR0-000 Hose (6.5x11.5x600)
L:600->70Hose (6.5x11.5x600)
L:600->70 -
1018173-94L01-000 IAC Valve Hose No 2IAC Valve Hose No 2
-
1109401-11423-000 ClipClip
-
1201550-0612C-000 BoltBolt
-
1308316-10067-000 NutNut
-
1413800-94L01-000 Silencer AssemblySilencer Assembly
-
1513810-94L01-000 • Silencer Cleaner• Silencer Cleaner
-
1613711-94L00-000 •• Air Cleaner Element Assembly•• Air Cleaner Element Assembly
-
1713812-94L01-000 •• Air Cleaner Cap•• Air Cleaner Cap
-
1813813-94L00-000 •• Air Cleaner Seal•• Air Cleaner Seal
-
1913815-94L00-000 •• Drain Cap•• Drain Cap
-
2013816-94L00-000 •• Drain Cap Clip•• Drain Cap Clip
-
2113817-94L00-000 •• Screw•• Screw
-
2213841-94L00-000 • Silencer Duct• Silencer Duct
-
2313820-94L00-000 Restrictor HolderRestrictor Holder
-
2413851-94L00-000 Air Intake SealAir Intake Seal
-
2509116-06526-000 Bolt (6x30)Bolt (6x30)
-
2609169-06075-000 WasherWasher
-
2709320-09059-000 CushionCushion
