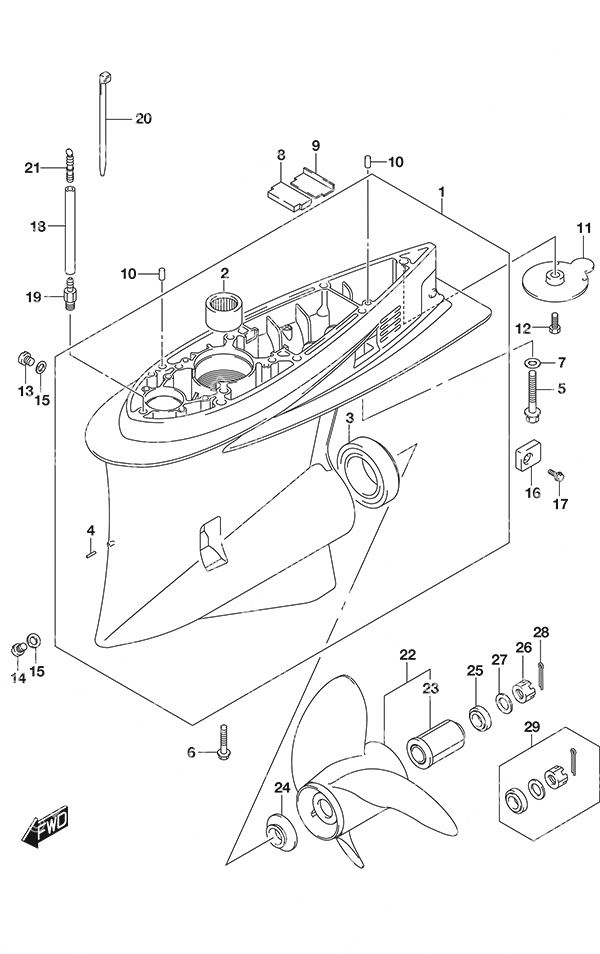

Fig. 407C - Gear Case SS Model для Suzuki DF 250 - 2020 года выпуска`
-
№АртикулНазвание
-
155110-98J01-YAY Gear Case HousingGear Case Housing
-
209263-36004-000 • Pinion Bearing (36x51x32)• Pinion Bearing (36x51x32)
-
309265-50001-000 • Bearing (50x90x32)• Bearing (50x90x32)
-
409206-03001-000 • Bushing (2x3x11) (NLA)• Bushing (2x3x11) (NLA)
-
509100-12052-000 Bolt (12x70)Bolt (12x70)
-
609116-10150-000 Bolt (10x55)Bolt (10x55)
-
709160-12066-000 Washer (12.5x22x2.5)Washer (12.5x22x2.5)
-
855332-98J00-000 Exhaust Seal RubberExhaust Seal Rubber
-
955333-98J00-000 Exhaust Seal PlateExhaust Seal Plate
-
1009202-08006-000 Knock Pin (8x12)Knock Pin (8x12)
-
11-155125-98J10-000 Trim Tab
w/Transom (L)Trim Tab
w/Transom (L) -
11-255125-98J00-YAY Trim Tab
w/Transom (X)Trim Tab
w/Transom (X) -
1209116-08137-000 Bolt (8x22)Bolt (8x22)
-
1355128-93J10-000 Drain PlugDrain Plug
-
1455128-93L00-000 Drain Plug w/MagnetDrain Plug w/Magnet
-
1509168-10034-000 Drain Plug GasketDrain Plug Gasket
-
1655321-93J01-000 Protection AnodeProtection Anode
-
1709116-06236-000 Bolt (6x16)Bolt (6x16)
-
1809355-40805-600 Hose (4x8x600)
L:600->50Hose (4x8x600)
L:600->50 -
1909362-09008-000 NippleNipple
-
2009407-10404-000 Clamp (L:100)Clamp (L:100)
-
2155127-87D00-000 Hose UnionHose Union
-
22-1990C0-00810-17P S/S Watergrip Propeller 3x16x17
OptionalS/S Watergrip Propeller 3x16x17
Optional -
22-2990C0-00810-185 S/S Watergrip Propeller 3x16x18-1/2
OptionalS/S Watergrip Propeller 3x16x18-1/2
Optional -
22-3990C0-00810-20P S/S Watergrip Propeller 3x16x20
OptionalS/S Watergrip Propeller 3x16x20
Optional -
22-4990C0-00810-215 S/S Watergrip Propeller 3x16x21-1/2
OptionalS/S Watergrip Propeller 3x16x21-1/2
Optional -
22-5990C0-00810-23P S/S Watergrip Propeller 3x16x23
OptionalS/S Watergrip Propeller 3x16x23
Optional -
22-6990C0-00810-245 S/S Watergrip Propeller 3x16x24-1/2
OptionalS/S Watergrip Propeller 3x16x24-1/2
Optional -
22-7990C0-00810-26P S/S Watergrip Propeller 3x16x26
OptionalS/S Watergrip Propeller 3x16x26
Optional -
22-8990C0-00810-275 S/S Watergrip Propeller 3x16x27-1/2
OptionalS/S Watergrip Propeller 3x16x27-1/2
Optional -
22-9990C0-00840-17P S/S Watergrip Propeller 3x15-1/2x17
OptionalS/S Watergrip Propeller 3x15-1/2x17
Optional -
22-10990C0-00840-19P S/S Watergrip Propeller 3x15-1/4x19
OptionalS/S Watergrip Propeller 3x15-1/4x19
Optional -
22-11990C0-00840-21P S/S Watergrip Propeller 3x15x21
OptionalS/S Watergrip Propeller 3x15x21
Optional -
22-12990C0-00840-23P S/S Watergrip Propeller 3x14-3/4x23
OptionalS/S Watergrip Propeller 3x14-3/4x23
Optional -
22-13990C0-00840-25P S/S Watergrip Propeller 3x14-3/4x25
OptionalS/S Watergrip Propeller 3x14-3/4x25
Optional -
22-14990C0-00840-27P S/S Watergrip Propeller 3x14-1/2x27
OptionalS/S Watergrip Propeller 3x14-1/2x27
Optional -
22-15990C0-00510-20P S/S Watergrip Propeller 4x15.25x20
OptionalS/S Watergrip Propeller 4x15.25x20
Optional -
22-16990C0-00510-22P S/S Watergrip Propeller 4x15.25x22
OptionalS/S Watergrip Propeller 4x15.25x22
Optional -
22-17990C0-00510-24P S/S Watergrip Propeller 4x15.25x24
OptionalS/S Watergrip Propeller 4x15.25x24
Optional -
22-18990C0-00510-26P S/S Watergrip Propeller 4x15.25x26
OptionalS/S Watergrip Propeller 4x15.25x26
Optional -
22-19990C0-00622-17P S/S Propeller 4x14.25x17
OptionalS/S Propeller 4x14.25x17
Optional -
22-20990C0-00622-18P S/S Propeller 4x14.25x18
OptionalS/S Propeller 4x14.25x18
Optional -
22-21990C0-00622-19P S/S Propeller 4x14.25x19
OptionalS/S Propeller 4x14.25x19
Optional -
22-22990C0-00622-20P S/S Propeller 4x14.25x20
OptionalS/S Propeller 4x14.25x20
Optional -
22-23990C0-00622-21P S/S Propeller 4x14.25x21
OptionalS/S Propeller 4x14.25x21
Optional -
22-24990C0-00622-22P S/S Propeller 4x14.25x22
OptionalS/S Propeller 4x14.25x22
Optional -
22-25990C0-00622-23P S/S Propeller 4x14.25x23
OptionalS/S Propeller 4x14.25x23
Optional -
22-26990C0-00622-24P S/S Propeller 4x14.25x24
OptionalS/S Propeller 4x14.25x24
Optional -
22-27990C0-00622-25P S/S Propeller 4x14.25x25
OptionalS/S Propeller 4x14.25x25
Optional -
22-28990C0-00622-26P S/S Propeller 4x14.25x26
OptionalS/S Propeller 4x14.25x26
Optional -
22-29990C0-00622-27P S/S Propeller 4x14.25x27
OptionalS/S Propeller 4x14.25x27
Optional -
22-30990C0-00622-28P S/S Propeller 4x14.25x28
OptionalS/S Propeller 4x14.25x28
Optional -
22-33990C0-00630-28P S/S Propeller 4x14.5x28
OptionalS/S Propeller 4x14.5x28
Optional -
22-31990C0-00630-26P S/S Propeller 4x14.5x26
OptionalS/S Propeller 4x14.5x26
Optional -
22-32990C0-00630-27P S/S Propeller 4x14.5x27
OptionalS/S Propeller 4x14.5x27
Optional -
22-34990C0-00630-29P S/S Propeller 4x14.5x29
OptionalS/S Propeller 4x14.5x29
Optional -
22-35990C0-00630-30P S/S Propeller 4x14.5x30
OptionalS/S Propeller 4x14.5x30
Optional -
2358120-93L00-000 • Watergrip Propeller Bushing Set• Watergrip Propeller Bushing Set
-
2457632-93L11-000 Watergrip Propeller Bushing StopperWatergrip Propeller Bushing Stopper
-
2557633-93L00-000 Watergrip Propeller Nut SpacerWatergrip Propeller Nut Spacer
-
2609141-18005-000 Nut (18mm)Nut (18mm)
-
2709160-18028-000 Washer (18.5x31x1.0)Washer (18.5x31x1.0)
-
2809204-03003-000 Prop Nut Cotter PinProp Nut Cotter Pin
-
2957630-93L00-000 Watergrip Propeller Hardware Kit
OptionalWatergrip Propeller Hardware Kit
Optional -
3025700-98J01-000 Gear Case Seal Kit
Opt: Not ShownGear Case Seal Kit
Opt: Not Shown
