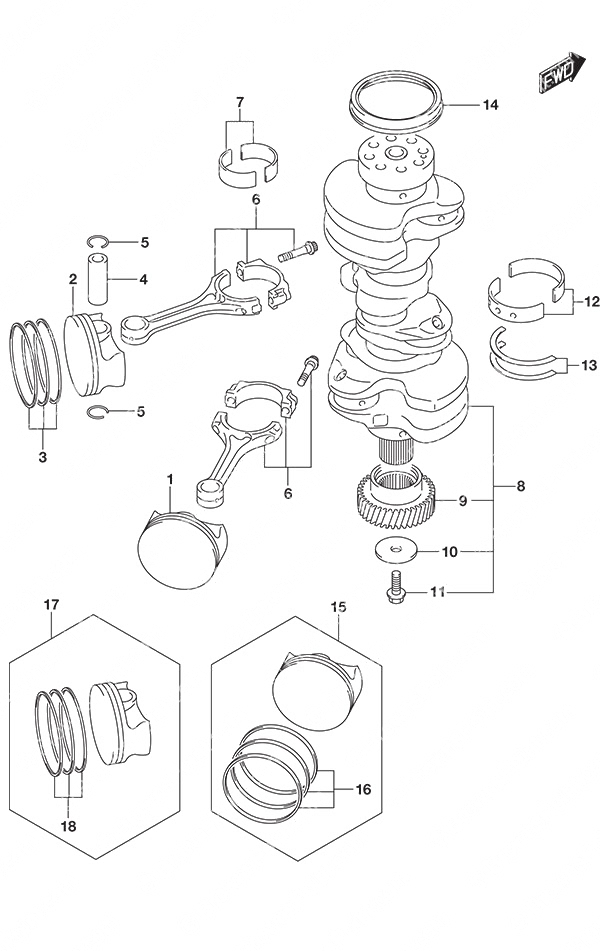

Fig. 116 - Crankshaft для Suzuki DF 350 - 2019 года выпуска
-
№АртикулНазвание
-
112111-98L00-0B0 Starboard PistonStarboard Piston
-
212121-98L00-0B0 Port PistonPort Piston
-
312140-98J10-000 Piston Ring SetPiston Ring Set
-
412151-98L00-000 Piston PinPiston Pin
-
509381-22010-000 Piston Pin CirclipPiston Pin Circlip
-
612160-98L00-000 Connecting Rod AssemblyConnecting Rod Assembly
-
7-112100-98810-0A0 Connrod Bearing Set (Green)Connrod Bearing Set (Green)
-
7-212100-98810-025 Connrod Bearing Set (US:0.25)
OptionalConnrod Bearing Set (US:0.25)
Optional -
812200-98L00-000 Crankshaft AssemblyCrankshaft Assembly
-
912242-98J00-000 • Drive Gear• Drive Gear
-
1009160-10104-000 • Drive Gear Washer (NLA)• Drive Gear Washer (NLA)
-
1101550-1025A-000 • Bolt• Bolt
-
12-112340-98L00-0A0 Crankshaft Bearing Set (Black)Crankshaft Bearing Set (Black)
-
12-212340-98L00-0B0 Crankshaft Bearing Set (Non)Crankshaft Bearing Set (Non)
-
12-312340-98L00-0C0 Crankshaft Bearing Set (Yellow)Crankshaft Bearing Set (Yellow)
-
12-412340-98L00-0D0 Crankshaft Bearing Set (Blue)Crankshaft Bearing Set (Blue)
-
12-512340-98L00-0E0 Crankshaft Bearing Set (Pink)Crankshaft Bearing Set (Pink)
-
12-612300-98840-0AA Crankshaft Bearing Set (Red/Black)
Opt: US:0.25Crankshaft Bearing Set (Red/Black)
Opt: US:0.25 -
12-712300-98840-0BA Crankshaft Bearing Set (Red)
Opt: US:0.25Crankshaft Bearing Set (Red)
Opt: US:0.25 -
12-812300-98840-0CA Crankshaft Bearing Set (Red/Yellow)
Opt: US:0.25Crankshaft Bearing Set (Red/Yellow)
Opt: US:0.25 -
12-912300-98840-0DA Crankshaft Bearing Set (Red/Blue)
Opt: US:0.25Crankshaft Bearing Set (Red/Blue)
Opt: US:0.25 -
12-1012300-98840-0EA Crankshaft Bearing Set (Red/Pink)
Opt: US:0.25Crankshaft Bearing Set (Red/Pink)
Opt: US:0.25 -
13-112300-98830-000 Crank Thrust Bearing SetCrank Thrust Bearing Set
-
13-212300-98830-012 Crank Thrust Bearing Set (OS:0.12)
Opt: OS:0.12Crank Thrust Bearing Set (OS:0.12)
Opt: OS:0.12 -
1409283-91001-000 Crankshaft Oil SealCrankshaft Oil Seal
-
1512101-98L20-050 Starboard Piston & Ring Set (OS:.050)
OptionalStarboard Piston & Ring Set (OS:.050)
Optional -
1612140-98J10-050 • Piston Ring Set (OS:0.50)
Optional• Piston Ring Set (OS:0.50)
Optional -
1712102-98L20-050 Port Piston & Ring Set (OS:.050)
OptionalPort Piston & Ring Set (OS:.050)
Optional -
1812140-98J10-050 • Piston Ring Set (OS:0.50)
Optional• Piston Ring Set (OS:0.50)
Optional
