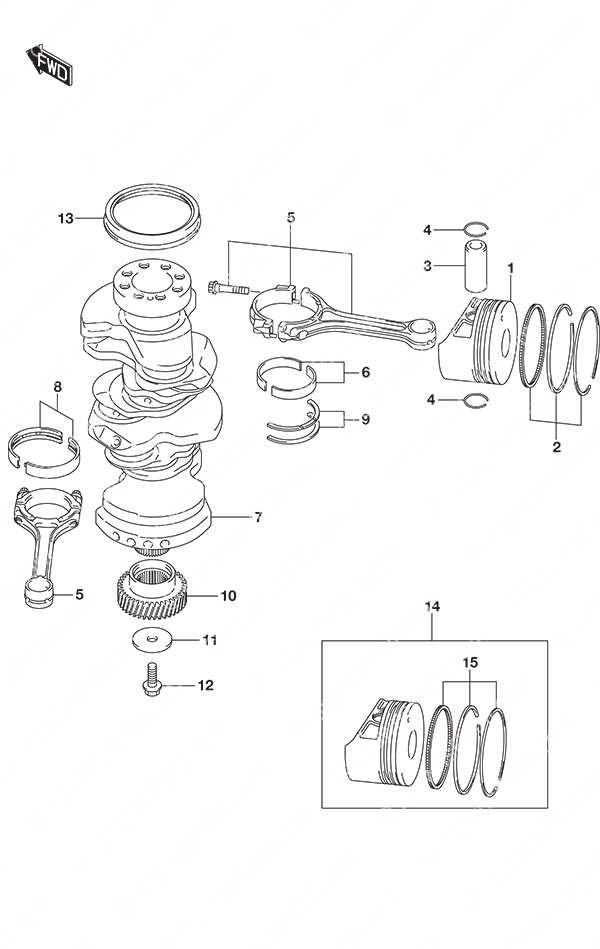

Fig. 116A - Crankshaft для Suzuki DF 250 - 2019 года выпуска`
-
№АртикулНазвание
-
112111-93J02-0B0 PistonPiston
-
212140-93J00-000 Piston Ring SetPiston Ring Set
-
312151-93J10-000 Piston PinPiston Pin
-
409381-22010-000 Piston Pin CirclipPiston Pin Circlip
-
512160-93J10-000 Connecting Rod AssemblyConnecting Rod Assembly
-
6-112100-98810-0A0 Connrod Bearing Set (Green)Connrod Bearing Set (Green)
-
6-212100-98810-025 Connrod Bearing Set (US:0.25)
OptionalConnrod Bearing Set (US:0.25)
Optional -
712220-93J01-000 Crankshaft AssemblyCrankshaft Assembly
-
8-112340-86FA2-0B0 Crankshaft Bearing Set (Black)Crankshaft Bearing Set (Black)
-
8-212340-86FA2-0C0 Crankshaft Bearing Set (Non)Crankshaft Bearing Set (Non)
-
8-312340-86FA2-0D0 Crankshaft Bearing Set (Yellow)Crankshaft Bearing Set (Yellow)
-
8-412340-86FA2-0E0 Crankshaft Bearing Set (Blue)Crankshaft Bearing Set (Blue)
-
8-512340-86FA2-0F0 Crankshaft Bearing Set (Pink)Crankshaft Bearing Set (Pink)
-
8-612300-86812-0BA Crankshaft Bearing Set (Red/Black)
Opt: US:0.25Crankshaft Bearing Set (Red/Black)
Opt: US:0.25 -
8-712300-86812-0CA Crankshaft Bearing Set (Red)
Opt: US:0.25Crankshaft Bearing Set (Red)
Opt: US:0.25 -
8-812300-86812-0DA Crankshaft Bearing Set (Red/Yellow)
Opt: US:0.25Crankshaft Bearing Set (Red/Yellow)
Opt: US:0.25 -
8-912300-86812-0EA Crankshaft Bearing Set (Red/Blue)
Opt: US:0.25Crankshaft Bearing Set (Red/Blue)
Opt: US:0.25 -
8-1012300-86812-0FA Crankshaft Bearing Set (Red/Pink)
Opt: US:0.25Crankshaft Bearing Set (Red/Pink)
Opt: US:0.25 -
9-112300-85830-000 Crank Thrust Bearing SetCrank Thrust Bearing Set
-
9-212300-85830-012 Crank Thrust Bearing Set (OS:0.12)
Opt: OS:0.25Crank Thrust Bearing Set (OS:0.12)
Opt: OS:0.25 -
1012242-93J01-000 Drive GearDrive Gear
-
1109160-10104-000 Drive Gear Washer (NLA)Drive Gear Washer (NLA)
-
1201550-1025A-000 BoltBolt
-
1309283-91001-000 Crankshaft Oil SealCrankshaft Oil Seal
-
1412100-93J00-050 Piston & Ring Set (OS:0.50)
OptionalPiston & Ring Set (OS:0.50)
Optional -
1512140-93J00-050 • Piston Ring Set (OS:0.50)
Optional• Piston Ring Set (OS:0.50)
Optional
