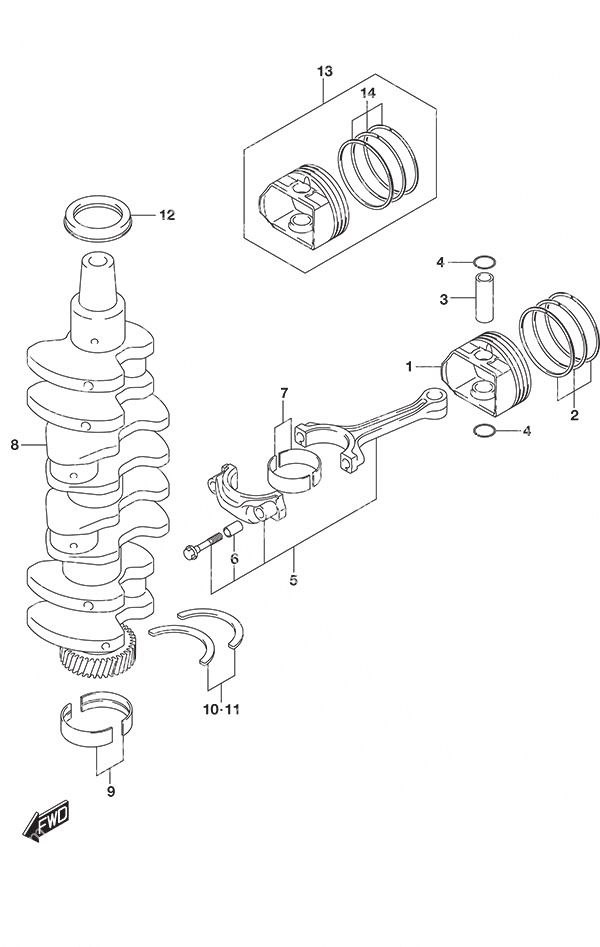

Fig. 116 - Crankshaft для Suzuki DF 70A - 2018 года выпуска
-
№АртикулНазвание
-
112111-87L01-000 PistonPiston
-
212140-87L01-000 Piston Ring SetPiston Ring Set
-
312151-54A50-000 Piston PinPiston Pin
-
409381-18002-000 Piston Pin CirclipPiston Pin Circlip
-
512160-87L10-000 Connecting Rod AssemblyConnecting Rod Assembly
-
604221-04089-000 • Pin (4x8)• Pin (4x8)
-
7-112100-69830-0A0 Connrod Bearing Set (Green) (NLA)Connrod Bearing Set (Green) (NLA)
-
7-212100-69830-0B0 Connrod Bearing Set (Black)Connrod Bearing Set (Black)
-
7-312100-69830-0C0 Connrod Bearing Set (Non)Connrod Bearing Set (Non)
-
7-412100-69830-0D0 Connrod Bearing Set (Yellow)Connrod Bearing Set (Yellow)
-
7-512100-69830-0E0 Connrod Bearing Set (Blue) (NLA)Connrod Bearing Set (Blue) (NLA)
-
7-612100-69830-025 Connrod Bearing Set (US:0.25) (NLA)
OptionalConnrod Bearing Set (US:0.25) (NLA)
Optional -
812220-87L00-000 CrankshaftCrankshaft
-
9-112340-57K02-0C0 Crankshaft Bearing Set (Green)Crankshaft Bearing Set (Green)
-
9-212340-57K02-0D0 Crankshaft Bearing Set (Black)Crankshaft Bearing Set (Black)
-
9-312340-57K02-0E0 Crankshaft Bearing Set (Non)Crankshaft Bearing Set (Non)
-
9-412340-57K02-0A0 Crankshaft Bearing Set (Purple)Crankshaft Bearing Set (Purple)
-
9-512340-57K02-0B0 Crankshaft Bearing Set (Brown)Crankshaft Bearing Set (Brown)
-
9-612300-57820-0AA Crankshaft Bearing Set (Red/Green)
OptionalCrankshaft Bearing Set (Red/Green)
Optional -
9-712300-57820-0BA Crankshaft Bearing Set (Red/Black) (NLA)
OptionalCrankshaft Bearing Set (Red/Black) (NLA)
Optional -
9-812300-57820-0CA Crankshaft Bearing Set (Red) (NLA)
OptionalCrankshaft Bearing Set (Red) (NLA)
Optional -
9-912300-57820-0DA Crankshaft Bearing Set (Green) (NLA)
OptionalCrankshaft Bearing Set (Green) (NLA)
Optional -
9-1012300-57820-0EA Crankshaft Bearing Set (White) (NLA)
OptionalCrankshaft Bearing Set (White) (NLA)
Optional -
1012300-78890-000 Crankshaft Thrust BearingCrankshaft Thrust Bearing
-
1112300-78890-012 Crankshaft Thrust Bearing (OS:0.12) (NLA)
OptionalCrankshaft Thrust Bearing (OS:0.12) (NLA)
Optional -
1209283-52006-000 Oil Seal (52x70x10)Oil Seal (52x70x10)
-
1312100-87L02-050 Piston & Ring Set (OS:0.50)
OptionalPiston & Ring Set (OS:0.50)
Optional -
1412140-87L01-050 • Piston Ring Set (OS:0.50)
Optional• Piston Ring Set (OS:0.50)
Optional
