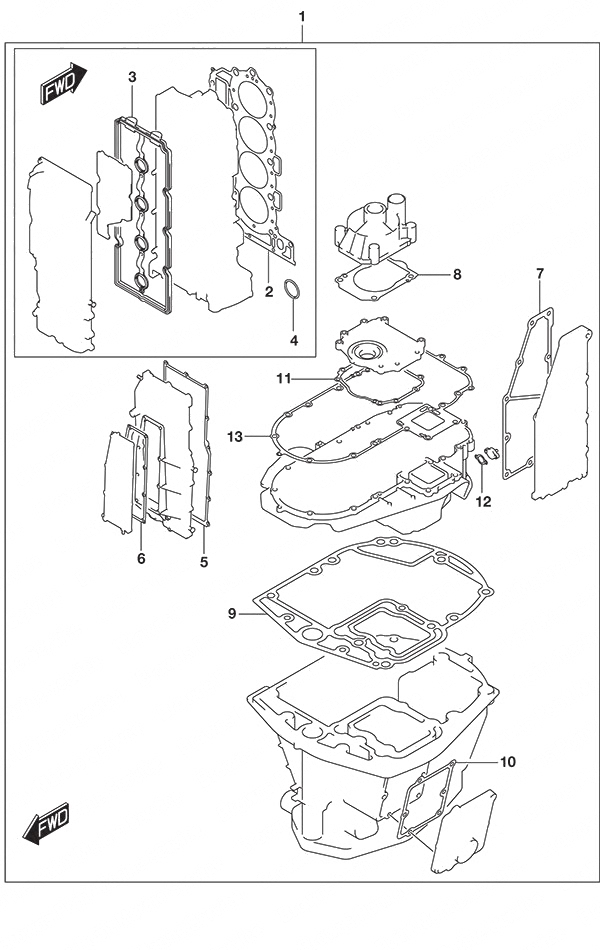

Fig. 585 - Opt: Gasket Set для Suzuki DF 150 - 2017 года выпуска`
![](/wa-data/public/shop/sheme/suzuki/outboard/ef70bfb8-c64d-4a51-b8c7-7178f1d80702.png)
-
№АртикулНазвание
-
211141-96J01-000 • Cylinder Head Gasket• Cylinder Head Gasket
-
311189-96J00-000 • Cylinder Head Cover Gasket• Cylinder Head Cover Gasket
-
411318-96J00-000 • Balancer Oil Gallery O-Ring• Balancer Oil Gallery O-Ring
-
511332-96J00-000 • Balancer Cover Gasket• Balancer Cover Gasket
-
611342-96J00-000 • Balancer Water Jacket Cover Gasket• Balancer Water Jacket Cover Gasket
-
714151-96J00-000 • Exhaust Cover Gasket• Exhaust Cover Gasket
-
817472-93J00-000 • Water Pump Plate Gasket• Water Pump Plate Gasket
-
911489-96J01-000 • Oil Pan Gasket• Oil Pan Gasket
-
1011552-96J00-000 • Water Jacket Cover Gasket• Water Jacket Cover Gasket
-
1151123-96J02-000 • Mount Oil Seal Cover Gasket• Mount Oil Seal Cover Gasket
-
1251142-96J00-000 • Engine Holder Cover Gasket• Engine Holder Cover Gasket
-
1351211-96J00-000 • Engine Holder Gasket• Engine Holder Gasket
-
111400-96893-000 Engine Gasket SetEngine Gasket Set
