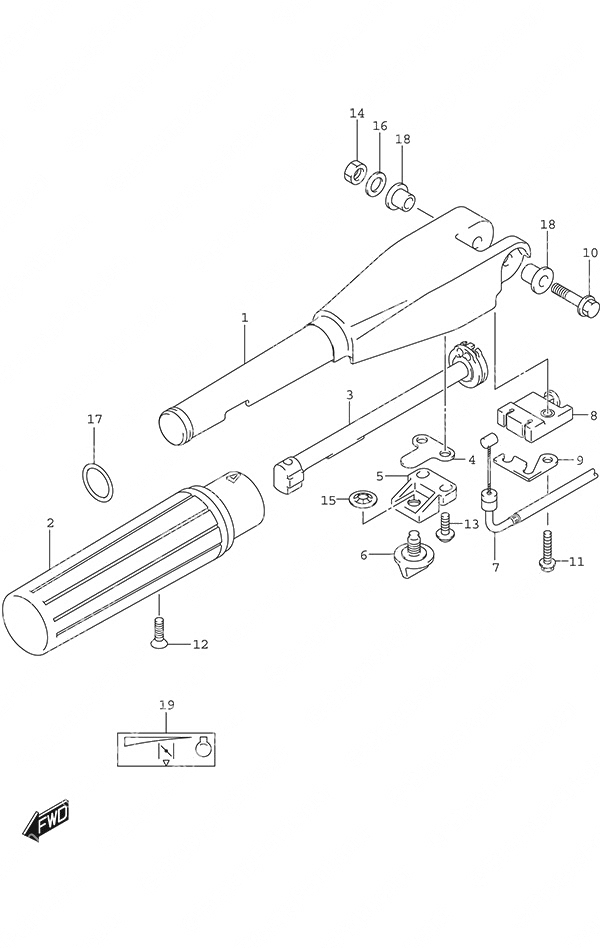

Fig. 444 - Tiller Handle для Suzuki DF 6 - 2016 года выпуска`
-
№АртикулНазвание
-
163111-91J30-0EP Tiller HandleTiller Handle
-
263210-93E30-000 Handle GripHandle Grip
-
363221-91J10-000 Handle RodHandle Rod
-
463225-98601-000 Throttle Adjust PlateThrottle Adjust Plate
-
563241-986B0-000 Handle Rod SupportHandle Rod Support
-
663244-986A0-000 Throttle Adjust KnobThrottle Adjust Knob
-
763610-91J20-000 Throttle Cable AssemblyThrottle Cable Assembly
-
863620-91J10-000 Throttle Cable StopperThrottle Cable Stopper
-
963628-91J10-000 Throttle Cable Stopper PlateThrottle Cable Stopper Plate
-
1009116-08156-000 Bolt (8x50)Bolt (8x50)
-
1109116-06229-000 Bolt (6x25)Bolt (6x25)
-
1209126-06015-000 Screw (6x23)Screw (6x23)
-
1309136-05041-000 Screw (5x20)Screw (5x20)
-
1409140-08023-XC0 Nut (8mm)Nut (8mm)
-
1509148-06008-000 NutNut
-
1609160-08082-000 Washer (8.5x16x1.2)Washer (8.5x16x1.2)
-
1709280-20004-000 O-RingO-Ring
-
1809306-08016-000 BushingBushing
-
1969714-91J20-000 Engine Start MarkEngine Start Mark
