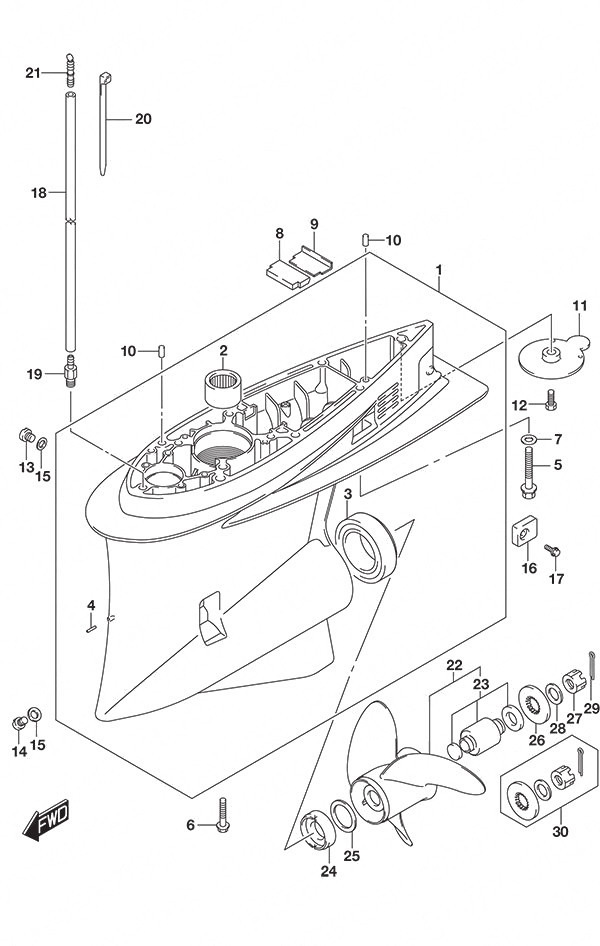

Fig. 407C - Gear Case DF 250S для Suzuki DF 250 - 2016 года выпуска`
-
№АртикулНазвание
-
155110-98J01-0EP Gear Case HousingGear Case Housing
-
209263-36004-000 • Pinion Bearing (36x51x32)• Pinion Bearing (36x51x32)
-
309265-50001-000 • Bearing (50x90x32)• Bearing (50x90x32)
-
409206-03001-000 • Bushing (2x3x11) (NLA)• Bushing (2x3x11) (NLA)
-
509100-12052-000 Bolt (12x70)Bolt (12x70)
-
609116-10150-000 Bolt (10x55)Bolt (10x55)
-
709401-08412-000 ClipClip
-
809160-12066-000 Washer (12.5x22x2.5)Washer (12.5x22x2.5)
-
955332-98J00-000 Exhaust Seal RubberExhaust Seal Rubber
-
1055333-98J00-000 Exhaust Seal PlateExhaust Seal Plate
-
1109202-08006-000 Knock Pin (8x12)Knock Pin (8x12)
-
1255125-98J10-000 Trim TabTrim Tab
-
1309116-08137-000 Bolt (8x22)Bolt (8x22)
-
1455128-93L00-000 Drain Plug w/MagnetDrain Plug w/Magnet
-
1509168-10034-000 Drain Plug GasketDrain Plug Gasket
-
1655321-93J01-000 Protection AnodeProtection Anode
-
1709116-06236-000 Bolt (6x16)Bolt (6x16)
-
1809355-40805-00B Hose (4x8x2000)
L:2000->1700Hose (4x8x2000)
L:2000->1700 -
1909362-09008-000 NippleNipple
-
2009407-10404-000 Clamp (L:100)Clamp (L:100)
-
2155127-87D00-000 Hose UnionHose Union
-
22-1990C0-00810-17P S/S Watergrip Propeller 3x16x17S/S Watergrip Propeller 3x16x17
-
22-2990C0-00810-185 S/S Watergrip Propeller 3x16x18-1/2S/S Watergrip Propeller 3x16x18-1/2
-
22-3990C0-00810-20P S/S Watergrip Propeller 3x16x20S/S Watergrip Propeller 3x16x20
-
22-4990C0-00810-215 S/S Watergrip Propeller 3x16x21-1/2S/S Watergrip Propeller 3x16x21-1/2
-
22-5990C0-00810-23P S/S Watergrip Propeller 3x16x23S/S Watergrip Propeller 3x16x23
-
22-6990C0-00810-245 S/S Watergrip Propeller 3x16x24-1/2S/S Watergrip Propeller 3x16x24-1/2
-
22-7990C0-00810-26P S/S Watergrip Propeller 3x16x26S/S Watergrip Propeller 3x16x26
-
22-8990C0-00810-275 S/S Watergrip Propeller 3x16x27-1/2S/S Watergrip Propeller 3x16x27-1/2
-
22-958300-93J10-000 S/S Propeller 4x15.25x20S/S Propeller 4x15.25x20
-
22-1058300-93J20-000 S/S Propeller 4x15.25x22S/S Propeller 4x15.25x22
-
22-1158300-93J30-000 S/S Propeller 4x15.25x24S/S Propeller 4x15.25x24
-
22-1258300-93J40-000 S/S Propeller 4x15.25x26S/S Propeller 4x15.25x26
-
2358105-93J10-000 • Propeller Bushing Set• Propeller Bushing Set
-
2457632-93J21-000 Propeller StopperPropeller Stopper
-
2509160-37006-000 WasherWasher
-
2657633-87D30-000 Propeller Nut SpacerPropeller Nut Spacer
-
2709141-18005-000 Nut (18mm)Nut (18mm)
-
2809160-18028-000 Washer (18.5x31x1.0)Washer (18.5x31x1.0)
-
2909204-03003-000 Prop Nut Cotter PinProp Nut Cotter Pin
-
3057630-92E00-000 Propeller Hardware Kit
OptionalPropeller Hardware Kit
Optional -
3125700-98J01-000 Gear Case Seal Kit
Opt: Not ShownGear Case Seal Kit
Opt: Not Shown
