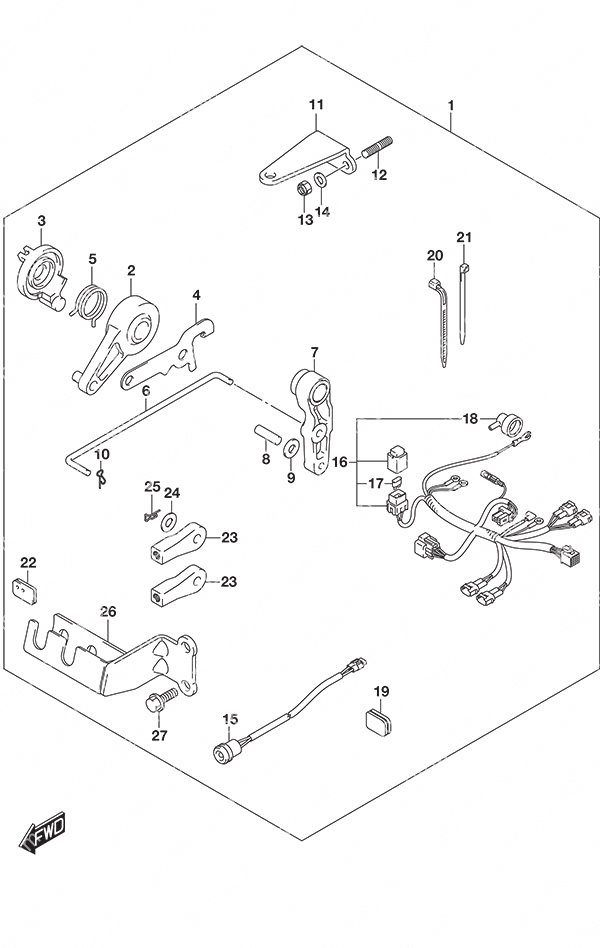

Fig. 513 - Opt: Remote Control Parts для Suzuki DF 9.9A - 2015 года выпуска`
-
№АртикулНазвание
-
167130-99J01-000 Remote Control Parts KitRemote Control Parts Kit
-
219120-99J11-000 • Throttle Control Lever• Throttle Control Lever
-
319122-99J00-000 • Interlink Throttle Lever No 2• Interlink Throttle Lever No 2
-
419184-99J10-000 • Throttle Link Plate• Throttle Link Plate
-
519185-99J00-000 • Throttle Lever Spring• Throttle Lever Spring
-
621241-99J00-000 • Clutch Lever Link• Clutch Lever Link
-
723210-99J00-000 • Clutch Control Lever• Clutch Control Lever
-
809204-01002-000 • Cotter Pin• Cotter Pin
-
909160-05029-000 • Washer (5.5x10x0.8)• Washer (5.5x10x0.8)
-
1009385-04003-000 • Snap Pin• Snap Pin
-
1143755-99J00-000 • Steering Bracket Attachment• Steering Bracket Attachment
-
1209108-08286-000 • Stud Bolt• Stud Bolt
-
1309159-08059-000 • Nut• Nut
-
1409160-08082-000 • Washer (8.5x16x1.2)• Washer (8.5x16x1.2)
-
1536360-99J10-000 • Oil Pressure Indicator• Oil Pressure Indicator
-
1636610-99J20-000 • Wiring Harness Assembly (NLA)• Wiring Harness Assembly (NLA)
-
1709481-20501-000 •• 20 Amp Fuse•• 20 Amp Fuse
-
1836618-43410-000 •• Oil Pressure Switch Cap (NLA)•• Oil Pressure Switch Cap (NLA)
-
1936656-99J10-000 • Cable Grommet
Port• Cable Grommet
Port -
2009407-14403-000 • Clamp (L:125)• Clamp (L:125)
-
2109407-14407-000 • Clamp (L:145)• Clamp (L:145)
-
2261124-99J10-000 • Remocon Cable Grommet
Starboard• Remocon Cable Grommet
Starboard -
2367467-89J01-000 • Cable Connector• Cable Connector
-
2409160-06055-000 • Washer (7x12x1.0)• Washer (7x12x1.0)
-
2509385-06012-000 • Clip• Clip
-
2667340-99J00-000 • Remocon Cable Holder• Remocon Cable Holder
-
2701550-06167-000 • Bolt (6x16)• Bolt (6x16)
