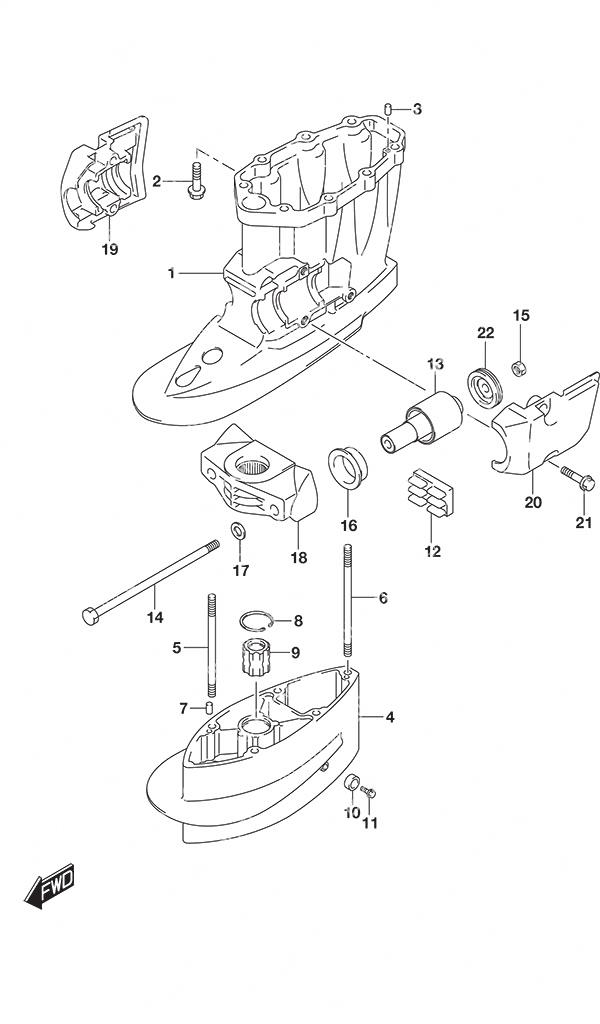

Fig. 405 - Drive Shaft Housing для Suzuki DF 70A - 2015 года выпуска`
-
№АртикулНазвание
-
1-152111-87L00-0EP Drive Shaft HousingDrive Shaft Housing
-
1-252111-87L00-Y5S Drive Shaft Housing
WhiteDrive Shaft Housing
White -
209116-10176-000 Bolt (10x44)Bolt (10x44)
-
309202-08006-000 Knock Pin (8x12)Knock Pin (8x12)
-
4-152131-87L00-0EP Extension Case (NLA)
Type: XExtension Case (NLA)
Type: X -
4-252131-87L00-Y5S Extension Case
Type: X WhiteExtension Case
Type: X White -
509108-10115-000 Stud Bolt
Type: XStud Bolt
Type: X -
609108-10157-000 Stud Bolt
Type: XStud Bolt
Type: X -
709202-08006-000 Knock Pin (8x12)
Type: XKnock Pin (8x12)
Type: X -
809381-40005-000 Circlip
Type: XCirclip
Type: X -
957130-87E02-000 Drive Shaft Bushing
Type: XDrive Shaft Bushing
Type: X -
1055321-87J01-000 Aluminum Anode
Type: XAluminum Anode
Type: X -
1109103-06281-000 Bolt (6x14)
Type: XBolt (6x14)
Type: X -
1254151-87L00-000 Lower Thrust MountLower Thrust Mount
-
1354160-87L10-000 Lower MountLower Mount
-
1454166-95J02-000 Mount BoltMount Bolt
-
1509159-12014-000 Nut (12x17)Nut (12x17)
-
1654167-87L10-000 Forward Lower Side MountForward Lower Side Mount
-
1754114-90J10-000 WasherWasher
-
18-154211-90J01-0EP Lower Mount BracketLower Mount Bracket
-
18-254211-90J01-Y5S Lower Mount Bracket
WhiteLower Mount Bracket
White -
19-154221-87L00-0EP Starboard Lower Mount Cover (NLA)Starboard Lower Mount Cover (NLA)
-
19-254221-87L00-Y5S Starboard Lower Mount Cover
WhiteStarboard Lower Mount Cover
White -
20-154231-87L00-0EP Port Lower Mount Cover (NLA)Port Lower Mount Cover (NLA)
-
20-254231-87L00-Y5S Port Lower Mount Cover
WhitePort Lower Mount Cover
White -
2109116-10176-000 Bolt (10x44)Bolt (10x44)
-
2254180-88L00-000 Forward Stopper DamperForward Stopper Damper
