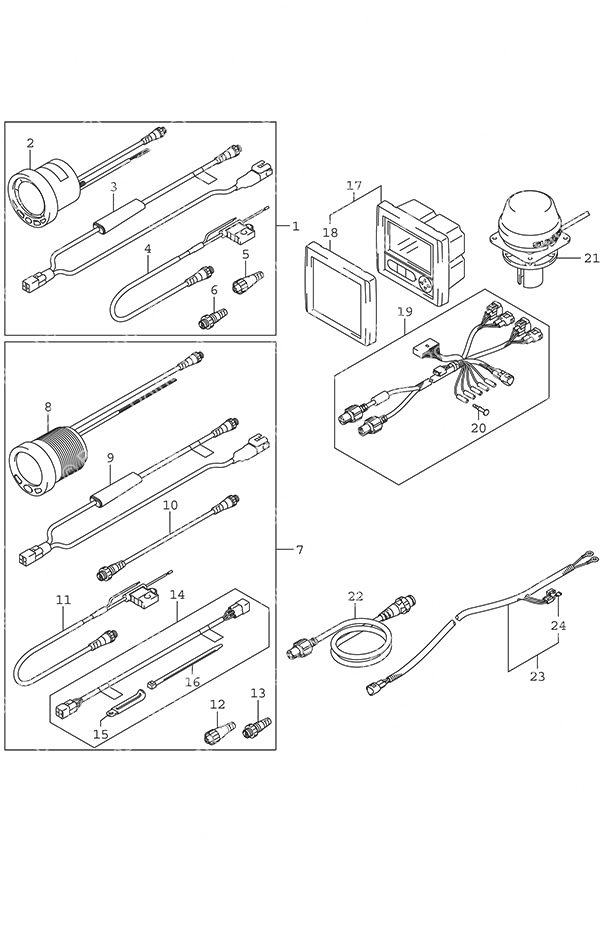

Fig. 502 - Opt: Meter (1) для Suzuki DF 30A - 2015 года выпуска`
-
№АртикулНазвание
-
1990C0-88164-KIT 4 in. Multi-Function Gauge Kit4 in. Multi-Function Gauge Kit
-
2990C0-88165-000 • 4 in. Multi-Function Gauge• 4 in. Multi-Function Gauge
-
3990C0-88149-000 • SMIS Engine Interface Cable (NLA)• SMIS Engine Interface Cable (NLA)
-
4990C0-88112-000 • SMIS Power Cable• SMIS Power Cable
-
5990C0-88113-000 • Terminating Resistor 120 ohm Female• Terminating Resistor 120 ohm Female
-
6990C0-88114-000 • Terminating Resistor 120 ohm Male• Terminating Resistor 120 ohm Male
-
734011-89L01-000 2 in. Multi-Function Gauge Kit2 in. Multi-Function Gauge Kit
-
8990C0-88150-000 • 2 in. Multi-Function Gauge• 2 in. Multi-Function Gauge
-
9990C0-88149-000 • SMIS Engine Interface Cable (NLA)• SMIS Engine Interface Cable (NLA)
-
10990C0-88108-000 • 25' Extension cable• 25' Extension cable
-
11990C0-88112-000 • SMIS Power Cable• SMIS Power Cable
-
12990C0-88113-000 • Terminating Resistor 120 ohm Female• Terminating Resistor 120 ohm Female
-
13990C0-88114-000 • Terminating Resistor 120 ohm Male• Terminating Resistor 120 ohm Male
-
1436660-89L01-000 • Engine to Interface Wire Set• Engine to Interface Wire Set
-
1529404-93J11-000 •• Clamp (L:65)•• Clamp (L:65)
-
1609407-14407-000 •• Clamp (L:145)•• Clamp (L:145)
-
1734200-87L11-000 Multi Gauge Assembly (NLA)Multi Gauge Assembly (NLA)
-
1834211-87L00-000 • Front Cover (NLA)• Front Cover (NLA)
-
1936661-87L00-000 Gauge AdapterGauge Adapter
-
2036615-96300-000 • Resin Terminal• Resin Terminal
-
2139950-87L00-000 GPS Receiver Module AssemblyGPS Receiver Module Assembly
-
2236666-87L00-000 Network WireNetwork Wire
-
23-136663-98J00-000 Active Hub Power Harness Assy (NLA)
2.5MActive Hub Power Harness Assy (NLA)
2.5M -
23-236663-98J10-000 Active Hub Power Harness Assy
6MActive Hub Power Harness Assy
6M -
2409481-05501-000 • 5 Amp Fuse• 5 Amp Fuse
