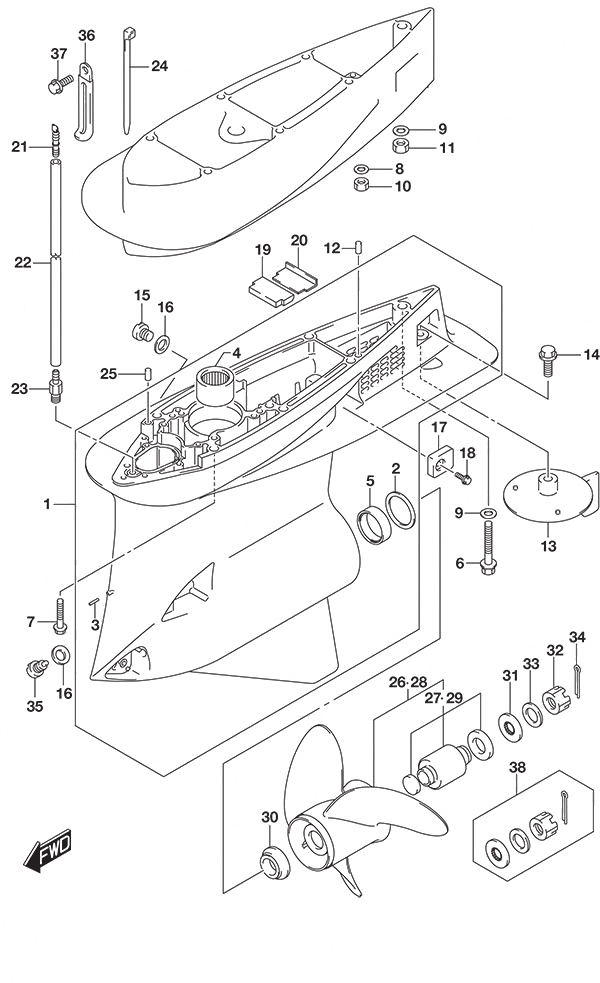

Fig. 407 - Gear Case для Suzuki DF 250AP - 2015 года выпуска
-
№АртикулНазвание
-
1-155110-93L00-0EP Gear Case Housing
BlackGear Case Housing
Black -
1-255110-93L00-Y5S Gear Case Housing
WhiteGear Case Housing
White -
255118-93L00-000 • Forward Gear Thrust Washer• Forward Gear Thrust Washer
-
309206-03001-000 • Bushing (2x3x11) (NLA)• Bushing (2x3x11) (NLA)
-
409263-35048-000 • Bearing (35x56x37)• Bearing (35x56x37)
-
509263-80001-000 • Bearing (80x100x30)• Bearing (80x100x30)
-
609100-12052-000 Bolt (12x70)
Type: XBolt (12x70)
Type: X -
709116-10150-000 Bolt (10x55)
Type: XBolt (10x55)
Type: X -
809160-10141-000 Washer (10.5x19x2)
Type: XXWasher (10.5x19x2)
Type: XX -
909160-12066-000 Washer (12.5x22x2.5)Washer (12.5x22x2.5)
-
1009140-10031-000 Nut (10mm)
Type: XXNut (10mm)
Type: XX -
1109159-12014-000 Nut (12x17)
Type: XXNut (12x17)
Type: XX -
1209202-08006-000 Knock Pin (8x12)Knock Pin (8x12)
-
13-155125-93L00-0EP Trim Tab
BlackTrim Tab
Black -
13-255125-93L00-Y5S Trim Tab
WhiteTrim Tab
White -
1409116-08137-000 Bolt (8x22)Bolt (8x22)
-
1555128-93J10-000 Drain PlugDrain Plug
-
1609168-10034-000 Drain Plug GasketDrain Plug Gasket
-
1755321-93J01-000 Protection AnodeProtection Anode
-
1809116-06236-000 Bolt (6x16)Bolt (6x16)
-
1955332-98J00-000 Exhaust Seal RubberExhaust Seal Rubber
-
2055333-98J00-000 Exhaust Seal PlateExhaust Seal Plate
-
2155127-87D00-000 Hose UnionHose Union
-
2209355-40805-00B Hose (4x8x2000)
L:2000->1300Hose (4x8x2000)
L:2000->1300 -
2309362-09008-000 NippleNipple
-
2409407-10404-000 Clamp (L:100)Clamp (L:100)
-
2509202-06031-000 Knock Pin (6x12)Knock Pin (6x12)
-
26-1990C0-00810-17P S/S Watergrip Propeller 3x16x17
Optional w/Regular RotationS/S Watergrip Propeller 3x16x17
Optional w/Regular Rotation -
26-2990C0-00810-185 S/S Watergrip Propeller 3x16x18-1/2
Optional w/Regular RotationS/S Watergrip Propeller 3x16x18-1/2
Optional w/Regular Rotation -
26-3990C0-00810-20P S/S Watergrip Propeller 3x16x20
Optional w/Regular RotationS/S Watergrip Propeller 3x16x20
Optional w/Regular Rotation -
26-4990C0-00810-215 S/S Watergrip Propeller 3x16x21-1/2
Optional w/Regular Rotation
S/S Watergrip Propeller 3x16x21-1/2
Optional w/Regular Rotation
-
26-5990C0-00810-23P S/S Watergrip Propeller 3x16x23
Optional w/Regular RotationS/S Watergrip Propeller 3x16x23
Optional w/Regular Rotation -
26-6990C0-00810-245 S/S Watergrip Propeller 3x16x24-1/2
Optional w/Regular RotationS/S Watergrip Propeller 3x16x24-1/2
Optional w/Regular Rotation -
26-7990C0-00810-26P S/S Watergrip Propeller 3x16x26
Optional w/Regular RotationS/S Watergrip Propeller 3x16x26
Optional w/Regular Rotation -
26-8990C0-00810-275 S/S Watergrip Propeller 3x16x27-1/2
Optional w/Regular RotationS/S Watergrip Propeller 3x16x27-1/2
Optional w/Regular Rotation -
26-9990C0-00840-20P S/S Watergrip Propeller 4x15x20 (NLA)
Optional w/Regular RotationS/S Watergrip Propeller 4x15x20 (NLA)
Optional w/Regular Rotation -
26-10990C0-00840-22P S/S Watergrip Propeller 4x15x22 (NLA)
Optional w/Regular RotationS/S Watergrip Propeller 4x15x22 (NLA)
Optional w/Regular Rotation -
26-11990C0-00840-24P S/S Watergrip Propeller 4x15x24 (NLA)
Optional w/Regular RotationS/S Watergrip Propeller 4x15x24 (NLA)
Optional w/Regular Rotation -
26-12990C0-00840-26P S/S Watergrip Propeller 4x15x26 (NLA)
Optional w/Regular RotationS/S Watergrip Propeller 4x15x26 (NLA)
Optional w/Regular Rotation -
26-13990C0-0080L-17P S/S Propeller 3x16x17 C/R
Optional w/Counter RotationS/S Propeller 3x16x17 C/R
Optional w/Counter Rotation -
26-14990C0-0081L-185 S/S Watergrip Propeller 3x16x18-1/2 (C/R)
Optional w/Counter RotationS/S Watergrip Propeller 3x16x18-1/2 (C/R)
Optional w/Counter Rotation -
26-15990C0-0081L-20P S/S Watergrip Propeller 3x16x20 (C/R)
Optional w/Counter RotationS/S Watergrip Propeller 3x16x20 (C/R)
Optional w/Counter Rotation -
26-16990C0-0081L-215 S/S Watergrip Propeller 3x16x21-1/2 (C/R)
Optional w/Counter RotationS/S Watergrip Propeller 3x16x21-1/2 (C/R)
Optional w/Counter Rotation -
26-17990C0-0080L-23P S/S Propeller 3x16x23 C/R
Optional w/Counter RotationS/S Propeller 3x16x23 C/R
Optional w/Counter Rotation -
26-18990C0-0081L-245 S/S Watergrip Propeller 3x16x24-1/2(C/R)
Optional w/Counter RotationS/S Watergrip Propeller 3x16x24-1/2(C/R)
Optional w/Counter Rotation -
26-19990C0-0081L-26P S/S Watergrip Propeller 3x16x26 (C/R)
Optional w/Counter RotationS/S Watergrip Propeller 3x16x26 (C/R)
Optional w/Counter Rotation -
26-20990C0-0084L-20P S/S Propeller 4x15x20 C/R (NLA)
Optional w/Counter RotationS/S Propeller 4x15x20 C/R (NLA)
Optional w/Counter Rotation -
26-21990C0-0084L-22P S/S Propeller 4x15x22 C/R (NLA)
Optional w/Counter RotationS/S Propeller 4x15x22 C/R (NLA)
Optional w/Counter Rotation -
26-22990C0-0084L-24P S/S Propeller 4x15x24 C/R (NLA)
Optional w/Counter RotationS/S Propeller 4x15x24 C/R (NLA)
Optional w/Counter Rotation -
26-23990C0-0084L-26P S/S Propeller 4x15x26 C/R (NLA)
Optional w/Counter RotationS/S Propeller 4x15x26 C/R (NLA)
Optional w/Counter Rotation -
2958105-93J10-000 • Propeller Bushing Set• Propeller Bushing Set
-
3057632-93L01-000 Propeller Bushing StopperPropeller Bushing Stopper
-
3157633-87D30-000 Propeller Nut SpacerPropeller Nut Spacer
-
3209141-18005-000 Nut (18mm)Nut (18mm)
-
3309160-18028-000 Washer (18.5x31x1.0)Washer (18.5x31x1.0)
-
3409204-03003-000 Prop Nut Cotter PinProp Nut Cotter Pin
-
3555128-93L00-000 Drain Plug w/MagnetDrain Plug w/Magnet
-
3629404-93J11-000 Clamp (L:65)Clamp (L:65)
-
3701550-06127-000 Bolt (6x12)Bolt (6x12)
-
3857630-92E00-000 Propeller Hardware Kit
OptionalPropeller Hardware Kit
Optional -
3925700-93L00-000 Gear Case Seal Kit
Opt: Not ShownGear Case Seal Kit
Opt: Not Shown
