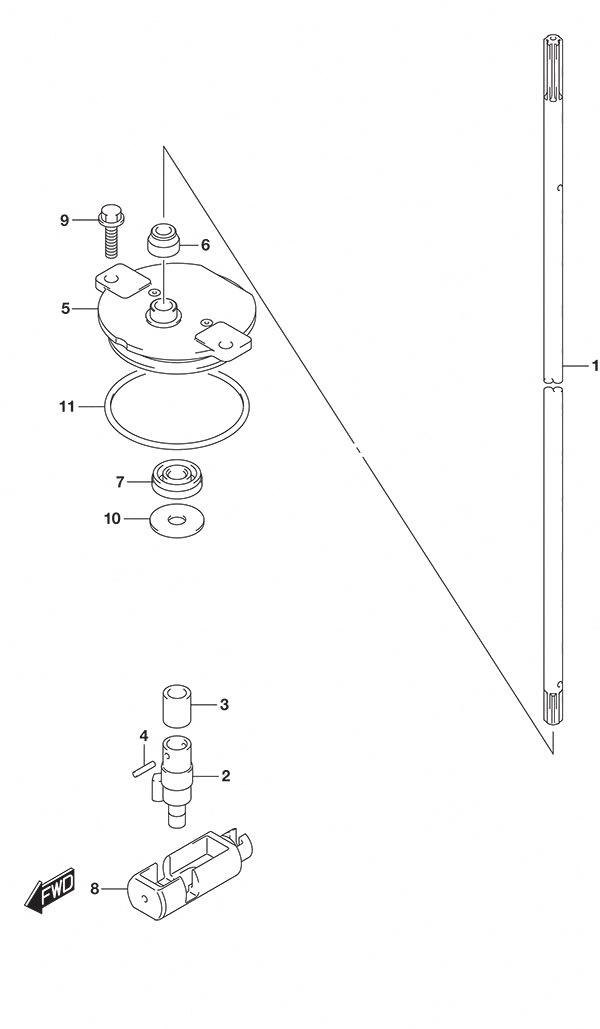

Fig. 206A - Clutch Rod для Suzuki DF 150 - 2015 года выпуска
-
№АртикулНазвание
-
1-125111-96J00-000 Shift Rod (L)
Type: LShift Rod (L)
Type: L -
1-225111-93J00-000 Shift Rod (L, X)
Type: XShift Rod (L, X)
Type: X -
225131-93J00-000 Shifter YokeShifter Yoke
-
3-125232-96302-000 Gear Case Magnet
DF 150T S/N 510385 & Older
DF 150Z S/N 510048 & Older
DF 150ST S/N 510385 & OlderGear Case Magnet
DF 150T S/N 510385 & Older
DF 150Z S/N 510048 & Older
DF 150ST S/N 510385 & Older -
3-225232-96302-000 Gear Case Magnet
DF 150T S/N 510386 & Newer
DF 150Z S/N 510049 & Newer
DF 150ST S/N 510386 & NewerGear Case Magnet
DF 150T S/N 510386 & Newer
DF 150Z S/N 510049 & Newer
DF 150ST S/N 510386 & Newer -
409205-02006-000 Spring Pin (2x12)Spring Pin (2x12)
-
525141-93J00-000 Shift Rod Guide HousingShift Rod Guide Housing
-
625222-96301-000 Replaced by 25223-94400Replaced by 25223-94400
-
709282-08005-000 Shift Rod Guide Housing Oil SealShift Rod Guide Housing Oil Seal
-
825321-93J00-000 Horizontal Shift SliderHorizontal Shift Slider
-
929116-93J00-000 Bolt (6x20)Bolt (6x20)
-
1009160-08151-000 Shift Rod WasherShift Rod Washer
-
1109280-60007-000 O-RingO-Ring
