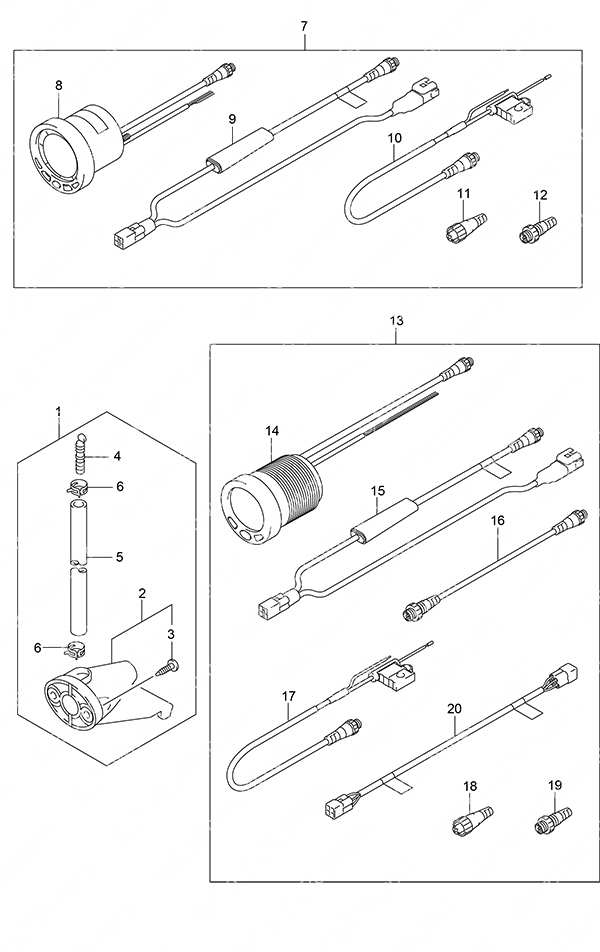

Fig. 45 - Opt: Meter Kit для Suzuki DF 70A - 2014 года выпуска
-
№АртикулНазвание
-
134120-98J01-000 Speedometer Sub Kit (NLA)Speedometer Sub Kit (NLA)
-
234190-95500-000 • Speedometer Sensor (NLA)• Speedometer Sensor (NLA)
-
303112-06303-000 •• Screw (NLA)•• Screw (NLA)
-
455127-87D00-000 • Hose Union• Hose Union
-
509355-40805-00B • Hose (4x8x2000)
L:2000->1700• Hose (4x8x2000)
L:2000->1700 -
609407-10404-000 • Clamp (L:100)• Clamp (L:100)
-
7990C0-88164-KIT 4 in. Multi-Function Gauge Kit4 in. Multi-Function Gauge Kit
-
8990C0-88165-000 • 4 in. Multi-Function Gauge• 4 in. Multi-Function Gauge
-
9990C0-88149-000 • SMIS Engine Interface Cable (NLA)• SMIS Engine Interface Cable (NLA)
-
10990C0-88112-000 • SMIS Power Cable• SMIS Power Cable
-
11990C0-88113-000 • Terminating Resistor 120 ohm Female• Terminating Resistor 120 ohm Female
-
12990C0-88114-000 • Terminating Resistor 120 ohm Male• Terminating Resistor 120 ohm Male
-
13990C0-88152-KIT 2 in. Multi-Function Gauge Kit2 in. Multi-Function Gauge Kit
-
14990C0-88150-000 • 2 in. Multi-Function Gauge• 2 in. Multi-Function Gauge
-
15990C0-88149-000 • SMIS Engine Interface Cable (NLA)• SMIS Engine Interface Cable (NLA)
-
16990C0-88108-000 • 25' Extension cable• 25' Extension cable
-
17990C0-88112-000 • SMIS Power Cable• SMIS Power Cable
-
18990C0-88113-000 • Terminating Resistor 120 ohm Female• Terminating Resistor 120 ohm Female
-
19990C0-88114-000 • Terminating Resistor 120 ohm Male• Terminating Resistor 120 ohm Male
-
20990C0-88136-000 • Cable Adapter SMIS to SDS• Cable Adapter SMIS to SDS
