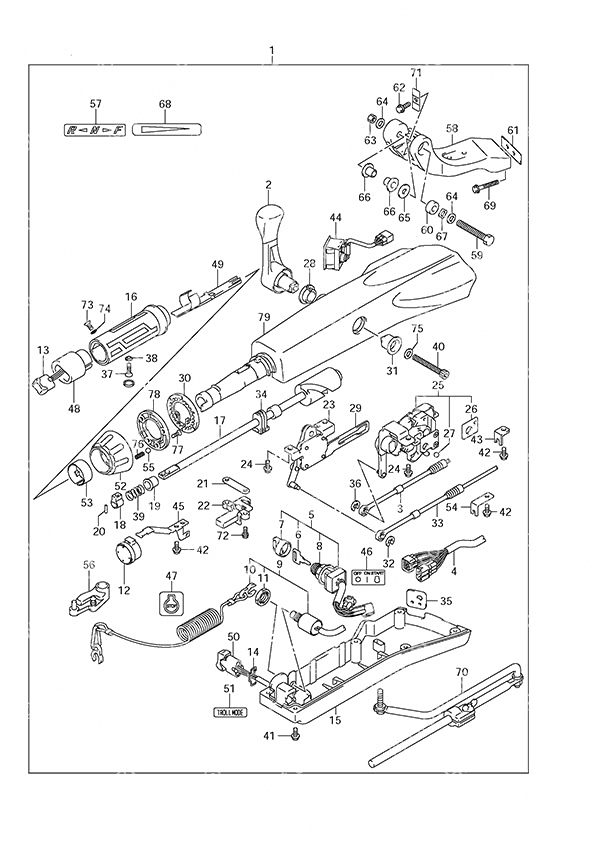

Fig. 51 - Opt: Tiller Handle для Suzuki DF 70A - 2013 года выпуска`
-
№АртикулНазвание
-
163002-87L15-YAY DF70A/80A/90A Tiller Handle KitDF70A/80A/90A Tiller Handle Kit
-
221110-88L00-000 • Shift Lever (NLA)• Shift Lever (NLA)
-
323230-90J00-000 • Shift Cable• Shift Cable
-
436620-87L00-000 • Wire Harness Assembly• Wire Harness Assembly
-
537110-87L00-000 • Ignition Switch Assembly• Ignition Switch Assembly
-
6-137141-99E00-000 •• (931) Ignition Key•• (931) Ignition Key
-
6-237141-99E10-000 •• (932) Ignition Key•• (932) Ignition Key
-
6-337141-99E20-000 •• (933) Ignition Key•• (933) Ignition Key
-
6-437141-99E30-000 •• (934) Ignition Key•• (934) Ignition Key
-
6-537141-99E40-000 •• (935) Ignition Key•• (935) Ignition Key
-
6-637141-99E50-000 •• (936) Ignition Key•• (936) Ignition Key
-
6-737141-99E60-000 •• (937) Ignition Key•• (937) Ignition Key
-
6-837141-99E70-000 •• (938) Ignition Key•• (938) Ignition Key
-
6-937141-99E80-000 •• (939) Ignition Key•• (939) Ignition Key
-
6-1037141-99E90-000 •• (940) Ignition Key•• (940) Ignition Key
-
6-1137141-99EA0-000 •• (941) Ignition Key•• (941) Ignition Key
-
6-1237141-99EB0-000 •• (942) Ignition Key•• (942) Ignition Key
-
737143-99E01-000 •• Key Cap•• Key Cap
-
837149-93J00-000 •• Cylinder Body Cap•• Cylinder Body Cap
-
937820-87L02-000 • Emergency Switch Assembly• Emergency Switch Assembly
-
1037823-92E02-000 •• Stop Switch Lanyard•• Stop Switch Lanyard
-
1137826-92E00-000 •• Nut•• Nut
-
1238500-93J90-000 • Warning Buzzer• Warning Buzzer
-
1337850-87L00-000 • PTT Switch Assembly• PTT Switch Assembly
-
1437852-87J00-000 • Trim Switch Cap• Trim Switch Cap
-
1563121-88L00-000 • Under Cover• Under Cover
-
1663210-88L00-000 • Handle Grip• Handle Grip
-
1763221-88L00-000 • Throttle Shaft (NLA)• Throttle Shaft (NLA)
-
1863223-92D00-000 • Handle Rod Stopper• Handle Rod Stopper
-
1963225-88L00-000 • Handle Rod Bushing (NLA)• Handle Rod Bushing (NLA)
-
2063227-93200-000 • Handle Rod Pin• Handle Rod Pin
-
2163235-88L00-000 • Throttle Shaft Plate• Throttle Shaft Plate
-
2263246-88L00-000 • Throttle Adjust Stopper (NLA)• Throttle Adjust Stopper (NLA)
-
2363250-88L00-000 • Throttle Arm Assembly (NLA)• Throttle Arm Assembly (NLA)
-
2463251-87J00-000 • Screw (6x12)• Screw (6x12)
-
2563260-88L00-000 • Shift Gear Assembly• Shift Gear Assembly
-
2663272-87J00-000 •• Ball Guide Plate•• Ball Guide Plate
-
2763273-87J00-000 •• Ball (NLA)•• Ball (NLA)
-
2863262-87J00-000 • Shift Lever Bushing• Shift Lever Bushing
-
2963271-87J00-000 • Lock Plate (NLA)• Lock Plate (NLA)
-
3063248-99J00-000 • Throttle Adjuster Notch Plate• Throttle Adjuster Notch Plate
-
3163261-87J00-000 • Shift Gear Bushing• Shift Gear Bushing
-
3263274-87J00-000 • E Ring (NLA)• E Ring (NLA)
-
3363610-87J00-000 • Throttle Cable Assembly• Throttle Cable Assembly
-
3437853-88L90-000 • PTT Switch Lead Grommet• PTT Switch Lead Grommet
-
3563626-88L00-000 • Cable Grommet (NLA)• Cable Grommet (NLA)
-
3667292-87J00-000 • E Ring• E Ring
-
3709126-06015-000 • Screw (6x23)• Screw (6x23)
-
3809163-06001-000 • Lock Washer (6.4x12x0.5)• Lock Washer (6.4x12x0.5)
-
3909440-12027-000 • Spring• Spring
-
4021112-88L00-000 • Shift Lever Bolt• Shift Lever Bolt
-
4109125-05047-000 • Screw (5x14)• Screw (5x14)
-
4263611-88L00-000 • Clamp Bracket Bolt (NLA)• Clamp Bracket Bolt (NLA)
-
4363612-87J00-000 • Clamp Bracket• Clamp Bracket
-
4434200-87L00-000 • Tachometer w/Monitor• Tachometer w/Monitor
-
4536617-88L90-000 • Main Harness Clamp Bracket• Main Harness Clamp Bracket
-
4637112-88L90-000 • Ignition Switch Label (NLA)• Ignition Switch Label (NLA)
-
4737835-91J00-YAY • Stop Label• Stop Label
-
4837851-88L90-000 • PTT Switch Base• PTT Switch Base
-
4937852-88L90-000 • Guide Harness• Guide Harness
-
5037861-87L10-000 • Troll Mode Control Switch• Troll Mode Control Switch
-
5137864-88L90-000 • Troll Mode Label (NLA)• Troll Mode Label (NLA)
-
5263244-99J00-000 • Throttle Adjuster Knob• Throttle Adjuster Knob
-
5363245-99J00-000 • Throttle Adjuster Bushing• Throttle Adjuster Bushing
-
5463612-88L10-000 • Clamp Shift Bracket (NLA)• Clamp Shift Bracket (NLA)
-
5509260-10006-000 • Ball• Ball
-
5619120-87L10-000 • Throttle Lever (NLA)• Throttle Lever (NLA)
-
5721131-88L00-000 • Clutch Shift Mark• Clutch Shift Mark
-
5843761-88L00-0EP • Tiller Handle Bracket• Tiller Handle Bracket
-
5943762-88L00-000 • Tiller Handle Pivot Bolt• Tiller Handle Pivot Bolt
-
6043768-88L00-000 • Tiller Handle Spacer• Tiller Handle Spacer
-
6143776-87L00-000 • Steering Bracket Spacer• Steering Bracket Spacer
-
6209116-08137-000 • Bolt (8x22)• Bolt (8x22)
-
6309159-12014-000 • Nut (12x17)• Nut (12x17)
-
6409160-12066-000 • Washer (12.5x22x2.5)• Washer (12.5x22x2.5)
-
6509160-12124-000 • Washer (12.5x32x1.5)• Washer (12.5x32x1.5)
-
6663115-88L01-000 • Tiller Handle Bushing• Tiller Handle Bushing
-
6709164-13010-000 • Washer• Washer
-
6863215-93110-000 • Handle Grip Mark• Handle Grip Mark
-
6909116-10150-000 • Bolt (10x55)• Bolt (10x55)
-
7043770-99E03-000 • Steering Tensioner Assembly• Steering Tensioner Assembly
-
7163132-88L00-000 • Tiller Handle Stopper• Tiller Handle Stopper
-
7263251-88L90-000 • Bolt• Bolt
-
7337855-88L90-000 • Throttle Grip Screw• Throttle Grip Screw
-
7437854-88L90-000 • Throttle Grip Washer• Throttle Grip Washer
-
7563258-88L00-000 • Washer• Washer
-
7609440-06037-000 • Spring• Spring
-
7703522-05169-000 • Screw• Screw
-
7863247-99J00-000 • Throttle Adjuster Knob Plate• Throttle Adjuster Knob Plate
-
7863111-88L00-0EP • Tiller Handle Housing (NLA)• Tiller Handle Housing (NLA)
