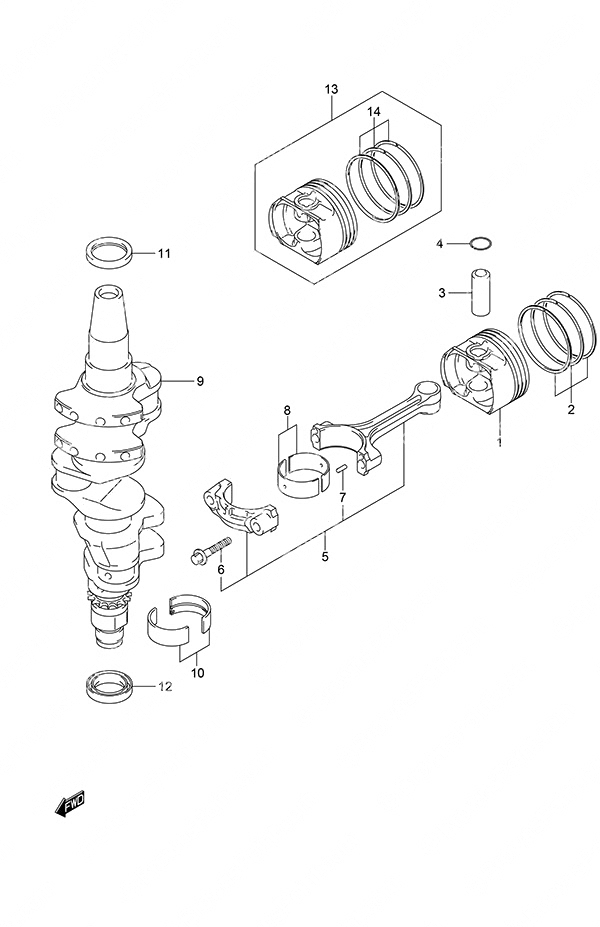

Fig. 6 - Crankshaft для Suzuki DF 40A - 2013 года выпуска`
-
№АртикулНазвание
-
112111-88L00-000 PistonPiston
-
212140-88L00-000 Piston Ring SetPiston Ring Set
-
312151-54A50-000 Piston PinPiston Pin
-
409381-18002-000 Piston Pin CirclipPiston Pin Circlip
-
512160-88L00-000 Connecting Rod AssemblyConnecting Rod Assembly
-
612163-69J00-000 • Connecting Rod Bolt• Connecting Rod Bolt
-
704221-04089-000 • Pin (4x8)• Pin (4x8)
-
8-112100-51810-0A0 Connrod Bearing Set (Green)Connrod Bearing Set (Green)
-
8-212100-51810-0B0 Connrod Bearing Set (Black)Connrod Bearing Set (Black)
-
8-312100-51810-0C0 Connrod Bearing Set (Non)Connrod Bearing Set (Non)
-
8-412100-51810-0D0 Connrod Bearing Set (Yellow)Connrod Bearing Set (Yellow)
-
8-512100-51810-0E0 Connrod Bearing Set (Blue)Connrod Bearing Set (Blue)
-
912220-88L00-000 CrankshaftCrankshaft
-
10-112340-75FA0-0A0 Crankshaft Bearing Set (Green)Crankshaft Bearing Set (Green)
-
10-212340-75FA0-0B0 Crankshaft Bearing Set (Black)Crankshaft Bearing Set (Black)
-
10-312340-75F00-0C0 Crankshaft Bearing Set (Non)Crankshaft Bearing Set (Non)
-
10-412340-75F00-0D0 Crankshaft Bearing Set (Yellow)Crankshaft Bearing Set (Yellow)
-
10-512340-75F00-0E0 Crankshaft Bearing Set (Blue)Crankshaft Bearing Set (Blue)
-
1109283-37005-000 Oil Seal (36.5x49x6)Oil Seal (36.5x49x6)
-
1212281-87J00-000 Oil Seal (39.3x44x7)Oil Seal (39.3x44x7)
-
1312100-88L01-050 Piston & Ring Set (OS:0.50)
OptionalPiston & Ring Set (OS:0.50)
Optional -
1412140-88L00-050 • Piston Ring Set (OS:0.50) (NLA)
Optional• Piston Ring Set (OS:0.50) (NLA)
Optional
