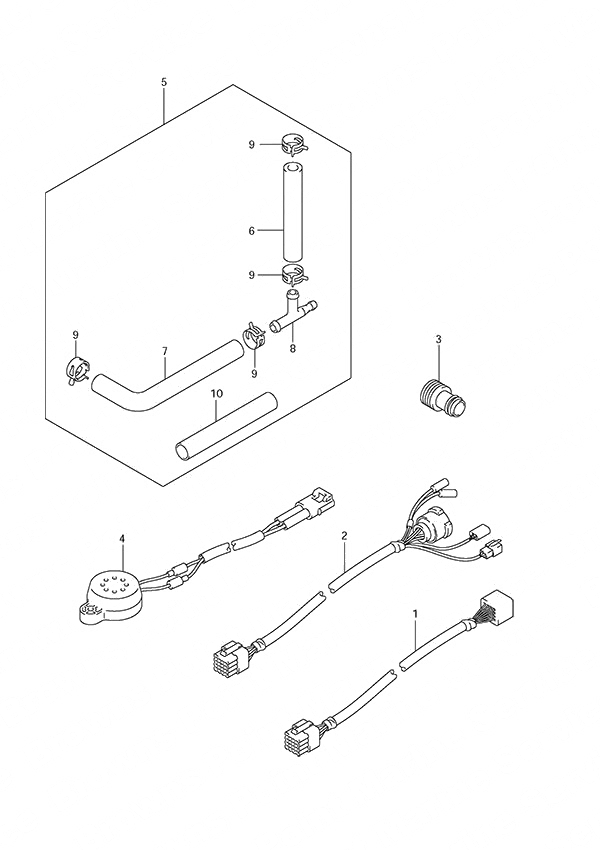

Fig. 195 - Opt: Harness для Suzuki DF 225 - 2013 года выпуска`
-
№АртикулНазвание
-
1-136620-93J11-000 6 ft. Wire Harness Extension
L,20006 ft. Wire Harness Extension
L,2000 -
1-236620-93J41-000 10 ft. Wire Harness Extension
L:300010 ft. Wire Harness Extension
L:3000 -
236620-93J30-000 DF Wire Harness AdapterDF Wire Harness Adapter
-
317917-87L00-000 Water Flush ConnectorWater Flush Connector
-
438500-93J00-000 Warning BuzzerWarning Buzzer
-
534660-93J01-000 Water Pressure Gauge Install KitWater Pressure Gauge Install Kit
-
609352-50006-600 • Hose (5x9x600)
L:600->110• Hose (5x9x600)
L:600->110 -
709352-50006-00B • Hose (5x9x2000)
L:2000->750• Hose (5x9x2000)
L:2000->750 -
809367-06006-000 • 3 Way• 3 Way
-
909401-08413-000 • Clip• Clip
-
1018498-87JC0-000 • Protector (L:450)
L:450->390• Protector (L:450)
L:450->390
