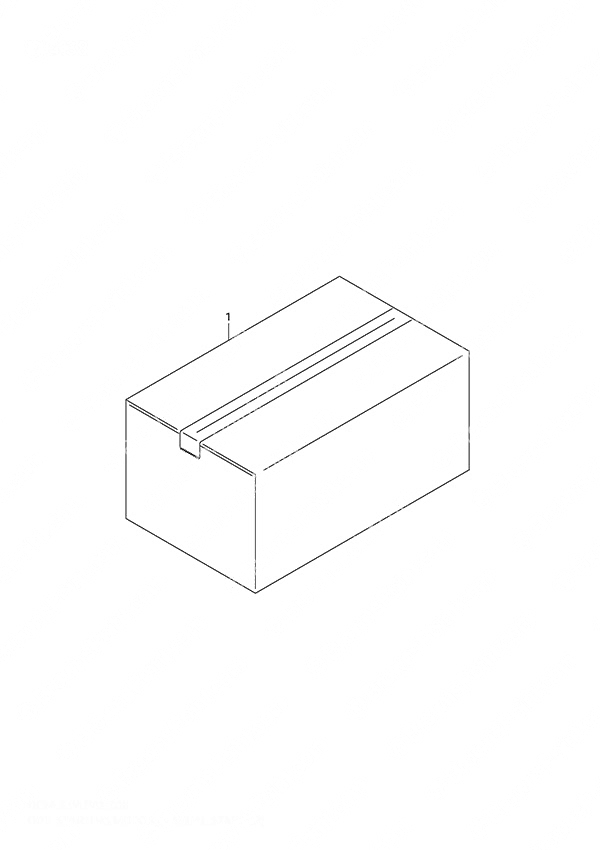

Fig. 38 - Opt: Starting Motor Manual Starter для Suzuki DF 9.9A - 2010 года выпуска`
-
№АртикулНазвание
-
131000-99J00-000 Electric Starter KitElectric Starter Kit
-
212625-99J00-000 • Stator Base• Stator Base
-
331101-99J00-000 • Starting Motor Set• Starting Motor Set
-
431100-94J22-000 •• Starter Motor Assembly•• Starter Motor Assembly
-
531912-99J00-000 •• Starting Motor Band•• Starting Motor Band
-
631918-94J00-000 •• Lower Damper•• Lower Damper
-
738860-76F01-000 •• Relay•• Relay
-
838915-90J00-000 •• Relay Holder•• Relay Holder
-
901550-06167-000 •• Bolt (6x16)•• Bolt (6x16)
-
1001550-08257-000 •• Bolt•• Bolt
-
1108316-10087-000 •• Nut•• Nut
-
1232104-99J00-000 • Magneto Set• Magneto Set
-
1332102-99J00-000 •• Flywheel•• Flywheel
-
1432120-99J00-000 •• Stator & Pulser Coil•• Stator & Pulser Coil
-
1509125-06035-000 •• Screw (6x25)•• Screw (6x25)
-
1632801-99J00-000 • Rectifier/Regulator Set• Rectifier/Regulator Set
-
1732800-99J00-000 •• Rectifier/Regulator Assembly•• Rectifier/Regulator Assembly
-
1801550-06257-000 •• Bolt•• Bolt
-
1932900-99J00-000 • CDI Unit• CDI Unit
-
2033800-99J00-000 • Starting Cable Set• Starting Cable Set
-
2133810-99J00-000 •• Starter Motor Cable•• Starter Motor Cable
-
2236655-99J00-000 •• Cable Grommet Plate•• Cable Grommet Plate
-
2336656-99J20-000 •• Cable Grommet•• Cable Grommet
-
2437161-89E13-000 •• Start Switch Assembly•• Start Switch Assembly
-
2537721-99J10-000 •• Neutral Switch Assembly•• Neutral Switch Assembly
-
2637724-99J00-000 •• Switch Push Rod•• Switch Push Rod
-
2737726-99J10-000 •• Neutral Switch Bracket•• Neutral Switch Bracket
-
2809137-04004-000 •• Screw (4x16)•• Screw (4x16)
-
2909159-14014-000 •• Nut (10mm)•• Nut (10mm)
-
3036610-99J00-000 • Wiring Harness Assembly• Wiring Harness Assembly
-
3136618-43410-000 •• Oil Pressure Switch Cap (NLA)•• Oil Pressure Switch Cap (NLA)
-
3209481-20501-000 •• 20 Amp Fuse•• 20 Amp Fuse
-
3309407-14403-000 • Clamp (L:125)• Clamp (L:125)
-
3409407-14407-000 • Clamp (L:145)• Clamp (L:145)
