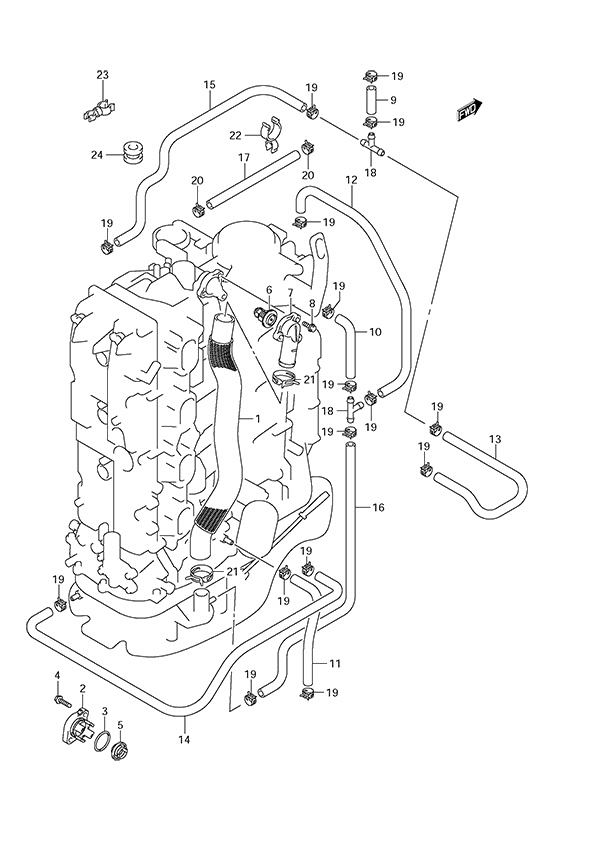

Fig. 15 - Thermostat для Suzuki DF 175 - 2010 года выпуска`
-
№АртикулНазвание
-
111196-96J00-000 Water Return HoseWater Return Hose
-
217611-90J00-000 Water Pressure Valve CoverWater Pressure Valve Cover
-
309280-26006-000 O-RingO-Ring
-
409116-06121-000 Bolt (6x25)Bolt (6x25)
-
517660-90J00-000 Water Pressure ValveWater Pressure Valve
-
6-117670-90J01-000 Thermostat (60c)
StandardThermostat (60c)
Standard -
6-217670-90J11-000 Thermostat (71c)
OptionalThermostat (71c)
Optional -
717681-96J00-000 Thermostat CoverThermostat Cover
-
801550-06257-000 BoltBolt
-
909352-50006-600 Hose (5x9x600)
3 Way to Balancer Cover Water Jacket
L:600->40Hose (5x9x600)
3 Way to Balancer Cover Water Jacket
L:600->40 -
1009352-50006-600 Hose (5x9x600)
Cooler to 3 Way
L:600->90Hose (5x9x600)
Cooler to 3 Way
L:600->90 -
1109352-50006-600 Hose (5x9x600)
Block to Indicator
L:600->220Hose (5x9x600)
Block to Indicator
L:600->220 -
1209352-50006-600 Hose (5x9x600)
Balancer Cover Water Jacket to 3 Way
L:600->240Hose (5x9x600)
Balancer Cover Water Jacket to 3 Way
L:600->240 -
1309352-50006-600 Hose (5x9x600)
3 Way to Cooler
L:600->380Hose (5x9x600)
3 Way to Cooler
L:600->380 -
1409352-50006-600 Hose (5x9x600)
Holder to Block
L:600->540Hose (5x9x600)
Holder to Block
L:600->540 -
1509352-50006-600 Hose (5x9x600)
Oil Pan to 3 WayHose (5x9x600)
Oil Pan to 3 Way -
1609352-50006-00B Hose (5x9x2000)
3 Way to Holder
L:2000->700Hose (5x9x2000)
3 Way to Holder
L:2000->700 -
1709352-90133-600 Hose (9x13x600)
L:600->340Hose (9x13x600)
L:600->340 -
1809367-06002-000 3 Way3 Way
-
1909401-08413-000 ClipClip
-
2009401-13425-000 ClipClip
-
2109401-31407-000 ClipClip
-
2209408-00060-000 Clamp (NLA)Clamp (NLA)
-
2309408-00078-000 Clamp
S/N 680083 & OlderClamp
S/N 680083 & Older -
2409320-09059-000 CushionCushion
