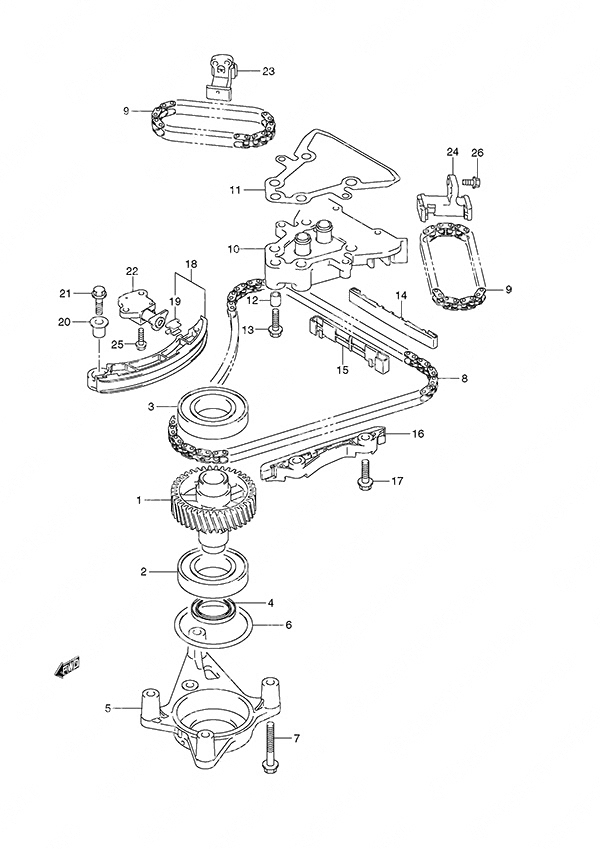

Fig. 7 - Timing Chain для Suzuki DF 200 - 2009 года выпуска`
-
№АртикулНазвание
-
112730-93J02-000 Driven GearDriven Gear
-
209262-40021-000 Bearing (40x80x18)Bearing (40x80x18)
-
308110-62080-000 BearingBearing
-
409283-32044-000 Oil Seal (32x47x6)Oil Seal (32x47x6)
-
512734-93J00-000 Driven Gear HolderDriven Gear Holder
-
609280-70012-000 O-RingO-Ring
-
701550-0855A-000 BoltBolt
-
812761-93J00-000 1st Timing Chain1st Timing Chain
-
912762-93J00-000 2nd Timing Chain2nd Timing Chain
-
1012770-93J00-000 Timing Chain Guide BaseTiming Chain Guide Base
-
1112778-93J00-000 Guide Base GasketGuide Base Gasket
-
1204211-13149-000 PinPin
-
1301550-0830A-000 Bolt (8x30)Bolt (8x30)
-
1412771-93J00-000 Timing Chain Upper ShoeTiming Chain Upper Shoe
-
1512775-93J00-000 Timing Chain Lower ShoeTiming Chain Lower Shoe
-
1612772-93J00-000 Timing Chain GuideTiming Chain Guide
-
1701550-0830A-000 Bolt (8x30)Bolt (8x30)
-
1812810-93J00-000 Timing Chain Tensioner AssemblyTiming Chain Tensioner Assembly
-
1912813-73G00-000 • Timing Chain Tensioner Pad• Timing Chain Tensioner Pad
-
2012812-90J00-000 Timing Chain Tensioner SpacerTiming Chain Tensioner Spacer
-
2101550-0830A-000 Bolt (8x30)Bolt (8x30)
-
22-112831-85FA7-000 Tensioner Adjuster AssemblyTensioner Adjuster Assembly
-
22-212831-93J01-000 Tensioner Adjuster Assembly
DF200T: S/N 421625 & Newer
DF200Z: S/N 421114 & NewerTensioner Adjuster Assembly
DF200T: S/N 421625 & Newer
DF200Z: S/N 421114 & Newer -
2312832-93J00-000 Starboard Tensioner AssemblyStarboard Tensioner Assembly
-
2412833-93J00-000 Port Tensioner AssemblyPort Tensioner Assembly
-
2501550-0620A-000 BoltBolt
-
2601550-0620A-000 BoltBolt
