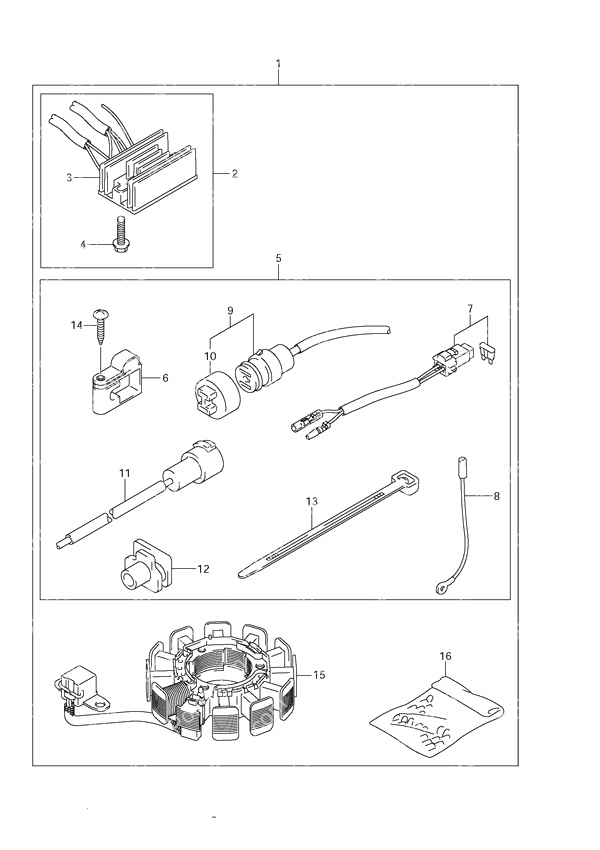

Fig. 62 - Opt: Electrical для Suzuki DF 9.9 - 2007 года выпуска`
-
№АртикулНазвание
-
132000-94J01-000 Battery Charging KitBattery Charging Kit
-
232801-94J01-000 • Rectifier/Regulator Set• Rectifier/Regulator Set
-
332800-94J11-000 • Rectifier/Regulator Assembly• Rectifier/Regulator Assembly
-
401550-06257-000 •• Bolt•• Bolt
-
539600-94J00-000 • Receptacle Set (NLA)• Receptacle Set (NLA)
-
633816-94J01-000 •• Cable Clamp•• Cable Clamp
-
736740-94J00-000 •• Fuse Case Assembly (NLA)•• Fuse Case Assembly (NLA)
-
837801-98300-000 •• Lead (NLA)•• Lead (NLA)
-
939601-95D00-000 •• Lighting Receptacle Assembly•• Lighting Receptacle Assembly
-
1036634-93910-000 •• Connector Cap•• Connector Cap
-
1139602-93900-000 •• Lamp Cord Plug Assembly•• Lamp Cord Plug Assembly
-
1239603-94400-000 •• Receptacle Grommet (NLA)•• Receptacle Grommet (NLA)
-
13-109407-14407-000 •• Clamp (L:145)•• Clamp (L:145)
-
13-209407-25402-000 •• Clamp (L:248)•• Clamp (L:248)
-
1403241-0625A-000 •• Screw•• Screw
-
1532120-94J10-000 Stator & Pulser CoilStator & Pulser Coil
-
1636990-87D00-000 Terminal & Sleeve SetTerminal & Sleeve Set
