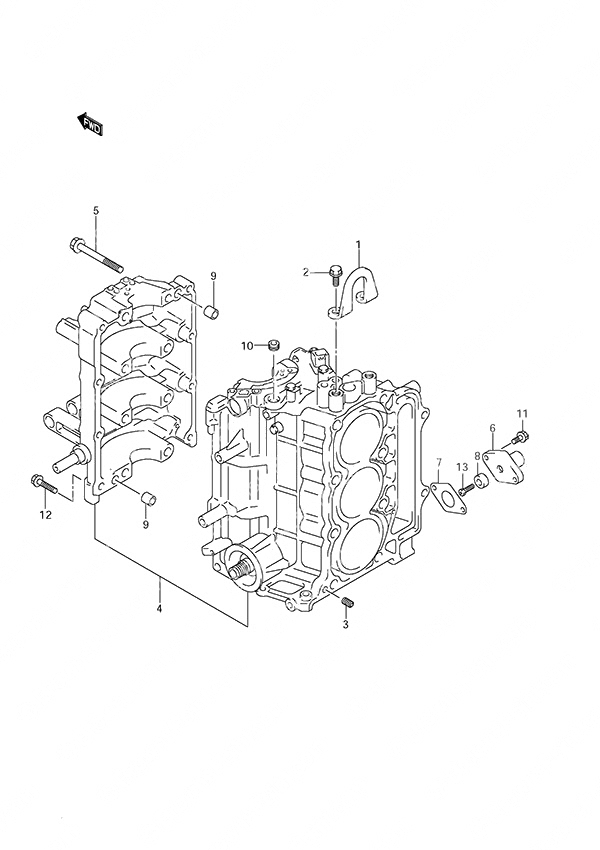

Fig. 2 - Cylinder Block для Suzuki DF 50 - 2007 года выпуска`
-
№АртикулНазвание
-
111291-87J00-000 Engine Hook (NLA)Engine Hook (NLA)
-
201550-08207-000 Bolt (8x20)Bolt (8x20)
-
311112-73010-000 Oil Venturi PlugOil Venturi Plug
-
411301-87J30-000 Cylinder Block Set (NLA)
Includes Ref# 3 & 5 to 13Cylinder Block Set (NLA)
Includes Ref# 3 & 5 to 13 -
511117-89J10-000 • Crankcase Bolt (NLA)• Crankcase Bolt (NLA)
-
611261-87E10-000 • Protection Anode Cover• Protection Anode Cover
-
711265-87E10-000 • Protection Cover Gasket• Protection Cover Gasket
-
855321-87J01-000 • Aluminum Anode• Aluminum Anode
-
909206-13019-000 • Knock Pin• Knock Pin
-
1009246-08004-000 • Plug (NLA)• Plug (NLA)
-
1101550-06207-000 • Bolt (6x20)• Bolt (6x20)
-
1201550-08407-000 • Bolt (8x40)• Bolt (8x40)
-
1309103-06281-000 • Bolt (6x14)• Bolt (6x14)
