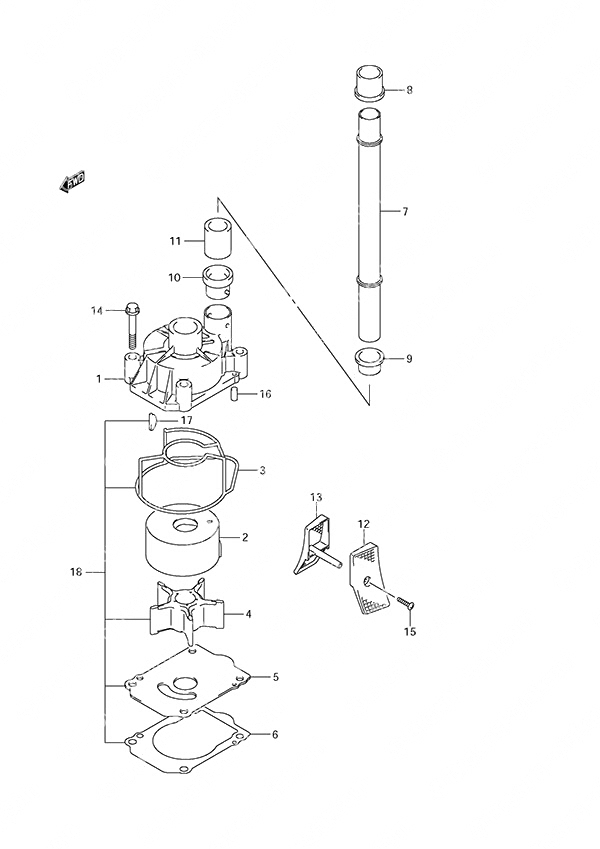

Fig. 15 - Water Pump для Suzuki DF 225 - 2007 года выпуска
-
№АртикулНазвание
-
117410-93J01-000 Water Pump CaseWater Pump Case
-
217413-93J02-000 Water Pump Case SleeveWater Pump Case Sleeve
-
317416-93J00-000 Replaced by 17416-93J01Replaced by 17416-93J01
-
417461-93J00-000 Water Pump ImpellerWater Pump Impeller
-
517471-93J02-000 Water Pump PlateWater Pump Plate
-
617472-93J00-000 Water Pump Plate GasketWater Pump Plate Gasket
-
7-117561-93J03-000 Water Tube (X)Water Tube (X)
-
7-217561-93J13-000 Water Tube (XX)Water Tube (XX)
-
817562-93J01-000 Upper Water Tube BushingUpper Water Tube Bushing
-
917563-93J01-000 Lower Water Tube BushingLower Water Tube Bushing
-
1017564-93J01-000 Water Pump Case BushingWater Pump Case Bushing
-
1117612-93J00-000 Water Tube SpacerWater Tube Spacer
-
12-117631-93J00-000 Port Side Water FilterPort Side Water Filter
-
12-217631-93J10-000 Port Side Water Filter
OptionalPort Side Water Filter
Optional -
12-317631-93J20-000 Port Side Water Filter
DF225T: S/N 510043 & Newer
DF225Z: S/N 510008 & NewerPort Side Water Filter
DF225T: S/N 510043 & Newer
DF225Z: S/N 510008 & Newer -
12-417631-93J30-000 Port Side Water Filter
Optional
DF225T: S/N 510043 & Newer
DF225Z: S/N 510008 & NewerPort Side Water Filter
Optional
DF225T: S/N 510043 & Newer
DF225Z: S/N 510008 & Newer -
13-117632-93J00-000 Starboard Side Water FilterStarboard Side Water Filter
-
13-217632-93J10-000 Starboard Side Water Filter
OptionalStarboard Side Water Filter
Optional -
13-317632-93J20-000 Starboard Side Water Filter
DF225T: S/N 510043 & Newer
DF225Z: S/N 510008 & NewerStarboard Side Water Filter
DF225T: S/N 510043 & Newer
DF225Z: S/N 510008 & Newer -
13-417632-93J30-000 Starboard Side Water Filter
Optional
DF225T: S/N 510043 & Newer
DF225Z: S/N 510008 & NewerStarboard Side Water Filter
Optional
DF225T: S/N 510043 & Newer
DF225Z: S/N 510008 & Newer -
14-109116-08156-000 Bolt (8x50)Bolt (8x50)
-
14-209116-08131-000 Bolt (8x45)
DF225T: S/N 780329 & Newer
DF225Z: S/N 780085 & NewerBolt (8x45)
DF225T: S/N 780329 & Newer
DF225Z: S/N 780085 & Newer -
1509132-04034-000 Screw (4x18)Screw (4x18)
-
1609202-06031-000 Knock Pin (6x12)Knock Pin (6x12)
-
1709420-05009-000 Water Pump KeyWater Pump Key
-
1817400-93J04-000 Water Pump Repair Kit
OptionalWater Pump Repair Kit
Optional
