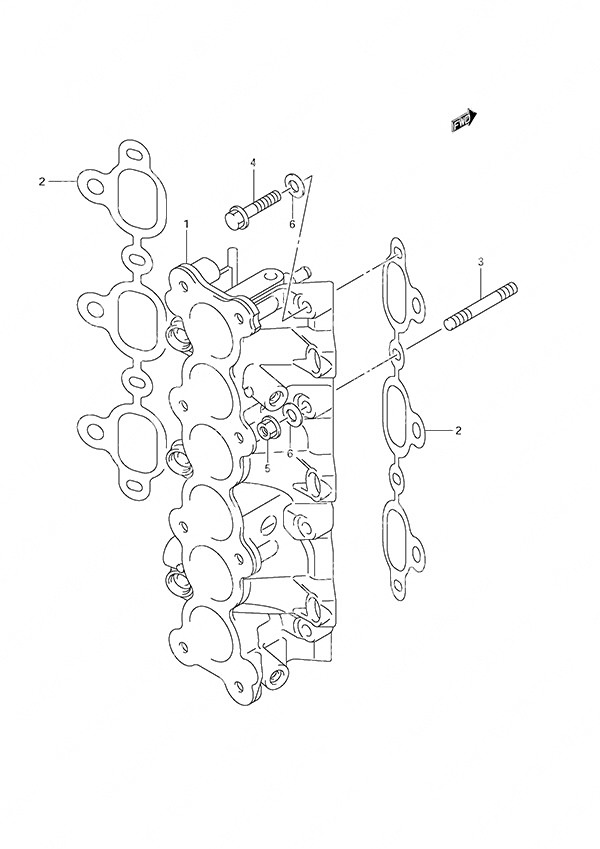

Fig. 10 - Intake Manifold для Suzuki DF 225 - 2006 года выпуска
-
№АртикулНазвание
-
113110-93J00-000 Intake ManifoldIntake Manifold
-
213119-93J00-000 Intake Manifold GasketIntake Manifold Gasket
-
3-101421-08457-000 Stud BoltStud Bolt
-
3-209108-08282-000 Stud Bolt
2008 & NewerStud Bolt
2008 & Newer -
4-101550-08507-000 BoltBolt
-
4-209103-08437-000 Bolt (8x65)
2008 & NewerBolt (8x65)
2008 & Newer -
5-108316-10087-000 NutNut
-
5-209159-08136-000 Nut
2008 & NewerNut
2008 & Newer -
609160-08016-000 Washer (8.5x20x2.0)
2008 & NewerWasher (8.5x20x2.0)
2008 & Newer
