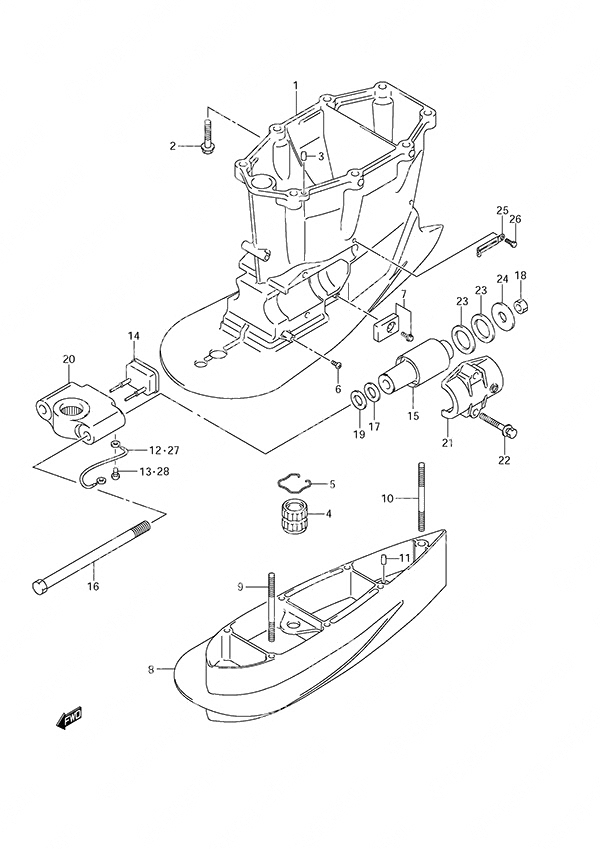

Fig. 45 - Drive Shaft Housing для Suzuki DF 200 - 2006 года выпуска
-
№АртикулНазвание
-
1-152111-93J03-0EP Drive Shaft HousingDrive Shaft Housing
-
1-252111-93J11-0EP Drive Shaft Housing
DF200T: S/N 680188 & Newer
DF200Z: S/N 680026 & NewerDrive Shaft Housing
DF200T: S/N 680188 & Newer
DF200Z: S/N 680026 & Newer -
209116-10176-000 Bolt (10x44)Bolt (10x44)
-
309202-08006-000 Knock Pin (8x12)Knock Pin (8x12)
-
457130-87D10-000 Drive Shaft BushingDrive Shaft Bushing
-
509387-38002-000 Snap RingSnap Ring
-
609125-06063-000 Screw (6x10)Screw (6x10)
-
755320-95311-000 Zinc AnodeZinc Anode
-
1236894-87D00-000 Wire Lead (L:195)
Mount Bracket to Housing
DF200T: S/N 421994 & Older
DF200Z: S/N 421177 & OlderWire Lead (L:195)
Mount Bracket to Housing
DF200T: S/N 421994 & Older
DF200Z: S/N 421177 & Older -
1309125-06063-000 Screw (6x10)
DF200T: S/N 421994 & Older
DF200Z: S/N 421177 & OlderScrew (6x10)
DF200T: S/N 421994 & Older
DF200Z: S/N 421177 & Older -
1454151-93J00-000 Lower Thrust Mount (NLA)Lower Thrust Mount (NLA)
-
1554160-93J01-000 Lower MountLower Mount
-
1654112-93J00-000 Upper Mount BoltUpper Mount Bolt
-
1709160-16050-000 Lower Mount WasherLower Mount Washer
-
1829159-93J00-000 Upper Mount Bolt NutUpper Mount Bolt Nut
-
1909160-16050-000 Lower Mount WasherLower Mount Washer
-
2054211-93J00-0EP Lower Mount BracketLower Mount Bracket
-
2154221-93J00-000 Lower Mount Cover (NLA)Lower Mount Cover (NLA)
-
2354165-98J01-000 Lower Thrust Reverse StopperLower Thrust Reverse Stopper
-
2209116-10175-000 Bolt (10x50)Bolt (10x50)
-
2409160-14066-000 Reverse Stopper Lower WasherReverse Stopper Lower Washer
-
2529404-93J11-000 Clamp (L:65)
DF200T: S/N 510092 & Newer
DF200Z: S/N 510017 & NewerClamp (L:65)
DF200T: S/N 510092 & Newer
DF200Z: S/N 510017 & Newer -
26-109100-06131-000 Bolt (6x12)
DF200T: S/N 510092 & Newer
DF200Z: S/N 510017 & NewerBolt (6x12)
DF200T: S/N 510092 & Newer
DF200Z: S/N 510017 & Newer -
26-229103-93J00-000 Bolt (6x12)
2006 & NewerBolt (6x12)
2006 & Newer -
2736894-87D00-000 Wire Lead (L:195)
Mount Bracket to Housing
DF200T: S/N 680188 & Newer
DF200Z: S/N 680026 & NewerWire Lead (L:195)
Mount Bracket to Housing
DF200T: S/N 680188 & Newer
DF200Z: S/N 680026 & Newer -
2809125-06063-000 Screw (6x10)
DF200T: S/N 680188 & Newer
DF200Z: S/N 680026 & NewerScrew (6x10)
DF200T: S/N 680188 & Newer
DF200Z: S/N 680026 & Newer
