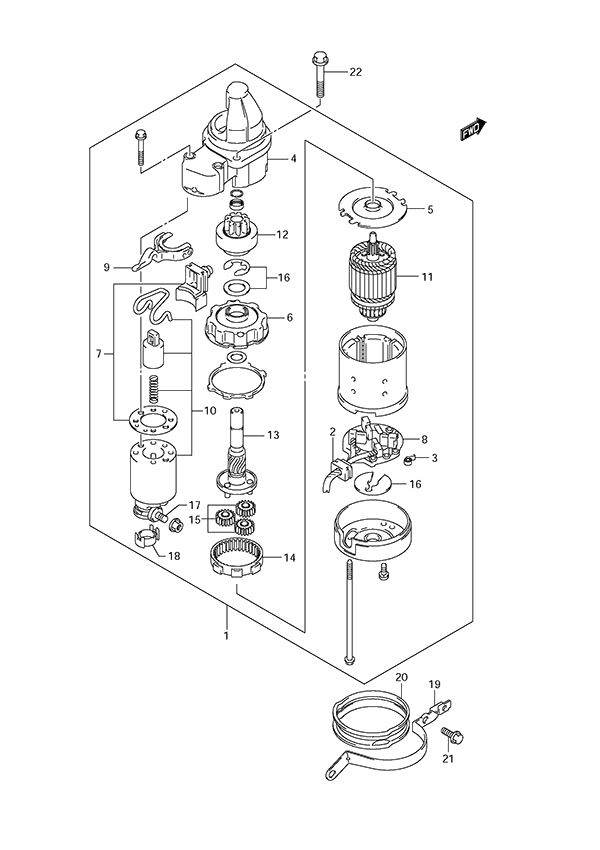

Fig. 25 - Starting Motor для Suzuki DF 175 - 2006 года выпуска
-
№АртикулНазвание
-
131100-96J02-000 Starter Motor AssemblyStarter Motor Assembly
-
231131-90J01-000 • Brush Set (+)• Brush Set (+)
-
331135-90J00-000 • Spring• Spring
-
431151-94J01-000 • Gear Case• Gear Case
-
531152-90J00-000 • Center Plate (NLA)• Center Plate (NLA)
-
631153-90J00-000 • Planet Gear Bracket (NLA)• Planet Gear Bracket (NLA)
-
731171-96J00-000 • Dust Cover Kit• Dust Cover Kit
-
831173-90J02-000 • Brush Holder• Brush Holder
-
931191-96J00-000 • Shift Lever (NLA)• Shift Lever (NLA)
-
1031220-94J00-000 • Magnet Switch• Magnet Switch
-
1131310-90J00-000 • Armature• Armature
-
1231320-93J00-000 • Pinion Assembly (NLA)• Pinion Assembly (NLA)
-
1331341-93J00-000 • Pinion Shaft (NLA)• Pinion Shaft (NLA)
-
1431343-90J00-000 • Internal Gear (NLA)• Internal Gear (NLA)
-
1531344-90J00-000 • Planetary Gear (NLA)• Planetary Gear (NLA)
-
1631360-93J01-000 • Washer Set• Washer Set
-
1731913-93J00-000 • Terminal• Terminal
-
1831914-93J00-000 • Terminal Cap• Terminal Cap
-
1931912-96J00-000 Starting Motor BandStarting Motor Band
-
2031918-90J10-000 Lower DamperLower Damper
-
2101550-08207-000 Bolt (8x20)
LowerBolt (8x20)
Lower -
2201550-08357-000 Bolt
UpperBolt
Upper
