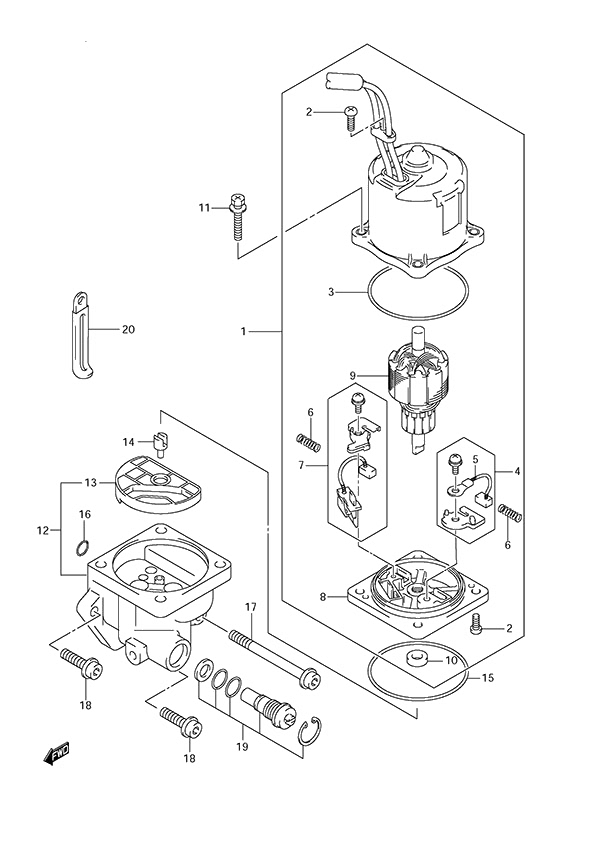

Fig. 34 - PTT Motor для Suzuki DF 150 - 2006 года выпуска
-
№АртикулНазвание
-
138100-96J12-000 PTT Motor AssemblyPTT Motor Assembly
-
231111-94900-000 • Yoke Screw• Yoke Screw
-
331123-87D60-000 • O-Ring• O-Ring
-
431133-90J10-000 • Brush Assembly• Brush Assembly
-
531133-94910-000 •• Brush•• Brush
-
631135-94900-000 • Spring• Spring
-
731136-90J20-000 • Breaker Assembly• Breaker Assembly
-
831173-94920-000 • Brush Holder Assembly
Includes Ref# 3 to 7 & Ref# 10• Brush Holder Assembly
Includes Ref# 3 to 7 & Ref# 10 -
931311-94900-000 • Armature (NLA)• Armature (NLA)
-
1033799-97E00-000 • Oil Seal• Oil Seal
-
1131281-92J10-000 Through BoltThrough Bolt
-
1248502-96J05-000 PTT Pump Assembly
Includes Ref# 13 & 19PTT Pump Assembly
Includes Ref# 13 & 19 -
1348582-95E01-000 • Filter• Filter
-
1448583-95E00-000 Drive JointDrive Joint
-
1548585-95E00-000 O-RingO-Ring
-
1648588-94900-000 O-Ring (Pack of 6)O-Ring (Pack of 6)
-
1748862-92J20-000 Pump Bolt No. 1Pump Bolt No. 1
-
1848862-92J30-000 Pump Bolt No. 2Pump Bolt No. 2
-
19-148864-93J01-000 Manual Valve SetManual Valve Set
-
19-248864-96J10-000 Manual Valve Set
2008 & NewerManual Valve Set
2008 & Newer -
2029404-93J11-000 Clamp (L:65)Clamp (L:65)
