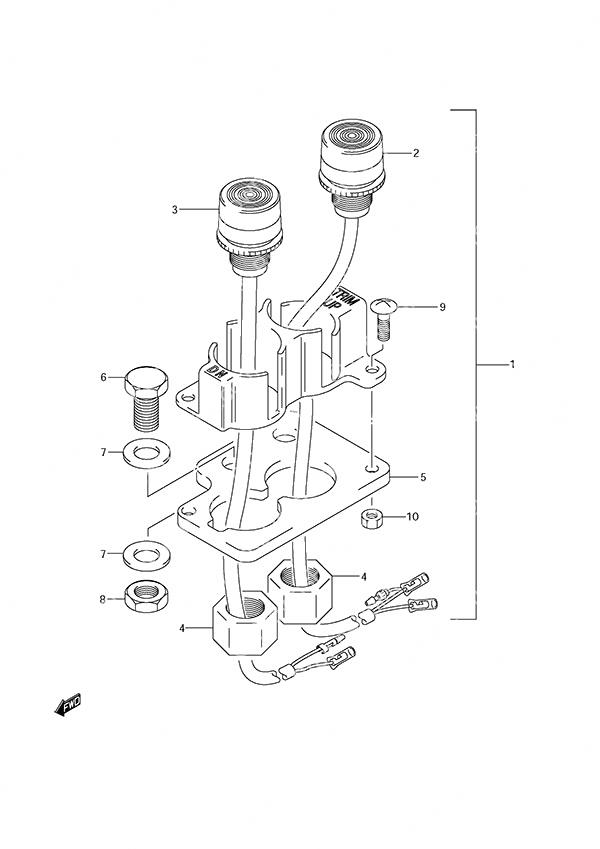

Fig. 58 - Opt: Trim Switch (2001 to 2004) для Suzuki DF 115 - 2006 года выпуска
-
№АртикулНазвание
-
137850-87D03-000 Tilt/Trim Switch Assembly (NLA)
L:5000Tilt/Trim Switch Assembly (NLA)
L:5000 -
237860-95324-000 • Up Trim Switch• Up Trim Switch
-
337870-95324-000 • Down Trim Switch• Down Trim Switch
-
409159-14014-000 Nut (10mm)Nut (10mm)
-
537852-95211-000 Trim Switch Plate (NLA)Trim Switch Plate (NLA)
-
609100-08232-000 Bolt (8x30)Bolt (8x30)
-
709160-08082-000 Washer (8.5x16x1.2)Washer (8.5x16x1.2)
-
809140-08019-000 Nut (8mm)Nut (8mm)
-
902142-04127-000 Cross Screw (4x12)Cross Screw (4x12)
-
1008310-00047-000 NutNut
