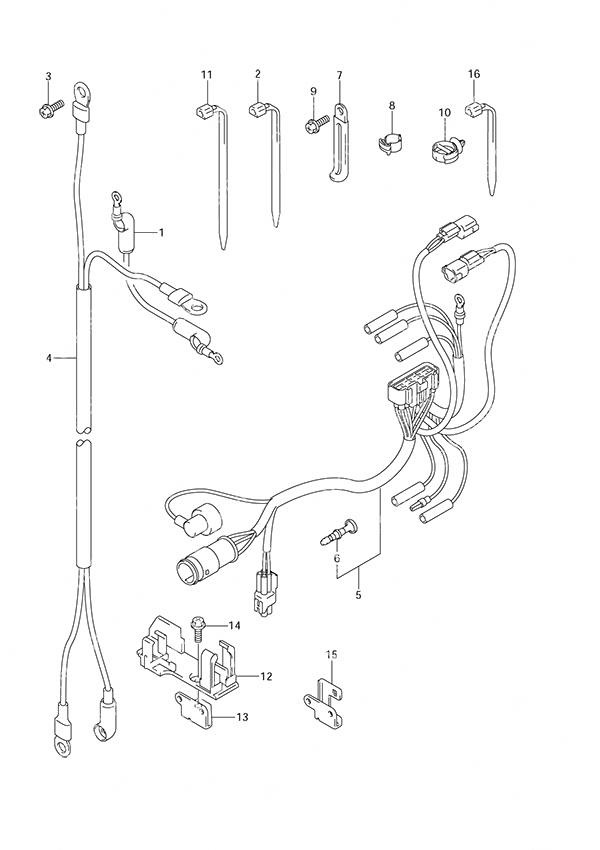

Fig. 28 - Harness для Suzuki DF 30 - 2004 года выпуска
-
№АртикулНазвание
-
133820-89E01-000 Starter Sub Cable Assy (NLA)
w/Electric StarterStarter Sub Cable Assy (NLA)
w/Electric Starter -
209407-14403-000 Clamp (L:125)
w/Electric StarterClamp (L:125)
w/Electric Starter -
301550-06167-000 Bolt (6x16)
w/Electric StarterBolt (6x16)
w/Electric Starter -
433810-93E02-000 Starter Motor Cable
w/Electric StarterStarter Motor Cable
w/Electric Starter -
5-136610-89J10-000 Wire Harness Assembly (NLA)
Remote ControlWire Harness Assembly (NLA)
Remote Control -
5-236610-89J50-000 Wire Harness Assembly (NLA)
Remote Control w/Power TiltWire Harness Assembly (NLA)
Remote Control w/Power Tilt -
5-336610-89J60-000 Wire Harness Assembly (NLA)
Non-Remote ControlWire Harness Assembly (NLA)
Non-Remote Control -
636615-96300-000 • Resin Terminal• Resin Terminal
-
709404-06435-000 Clamp (L:135)Clamp (L:135)
-
8-109408-00184-000 ClampClamp
-
902162-06127-000 BoltBolt
-
1009403-20308-000 Clip
w/Manual StarterClip
w/Manual Starter -
1236616-89J00-000 Connector Holder
Remote ControlConnector Holder
Remote Control -
1336617-89J00-000 Holder Connector Bracket (NLA)
Remote ControlHolder Connector Bracket (NLA)
Remote Control -
1402162-06127-000 Bolt
Remote ControlBolt
Remote Control
