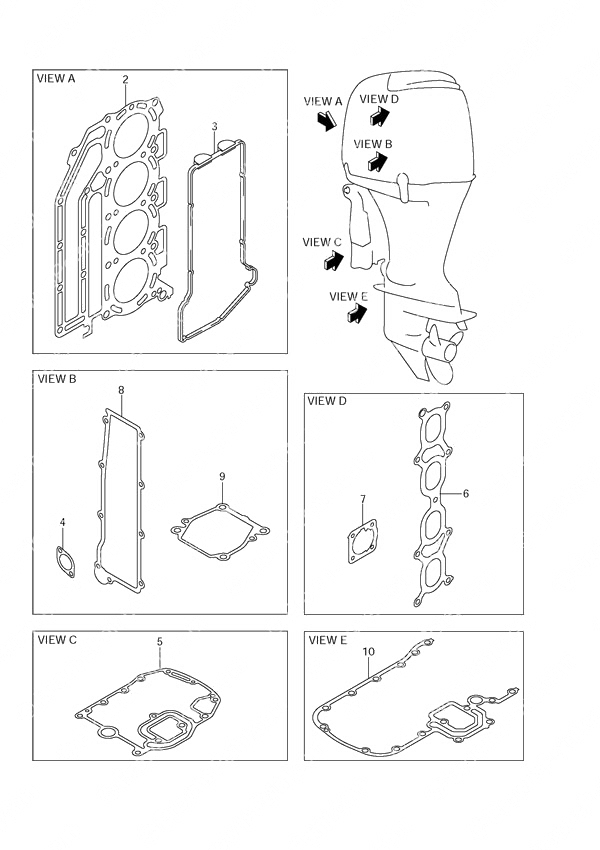

Fig. 64 - Opt: Gasket Set для Suzuki DF 140 - 2004 года выпуска
-
№АртикулНазвание
-
1-111400-92855-000 Engine Gasket SetEngine Gasket Set
-
1-211400-92862-000 Engine Gasket Set
DF140T: S/N 682149 & Newer
DF140Z: S/N 680234 & NewerEngine Gasket Set
DF140T: S/N 682149 & Newer
DF140Z: S/N 680234 & Newer -
211141-92J01-000 • Cylinder Head Gasket• Cylinder Head Gasket
-
311189-90J00-000 • Cylinder Head Cover Gasket• Cylinder Head Cover Gasket
-
411265-87E10-000 • Protection Cover Gasket• Protection Cover Gasket
-
511489-90J00-000 • Oil Pan Gasket• Oil Pan Gasket
-
613119-90J00-000 • Intake Manifold Gasket• Intake Manifold Gasket
-
713421-90J01-000 • Throttle Body Gasket• Throttle Body Gasket
-
814151-90J00-000 • Rectifier Gasket• Rectifier Gasket
-
917472-87E10-000 • Water Pump Plate Gasket• Water Pump Plate Gasket
-
10-151211-90J10-000 • Engine Holder Gasket• Engine Holder Gasket
-
10-251211-90J22-000 • Engine Holder Gasket
DF140T: S/N 682149 & Newer
DF140Z: S/N 680234 & Newer• Engine Holder Gasket
DF140T: S/N 682149 & Newer
DF140Z: S/N 680234 & Newer
